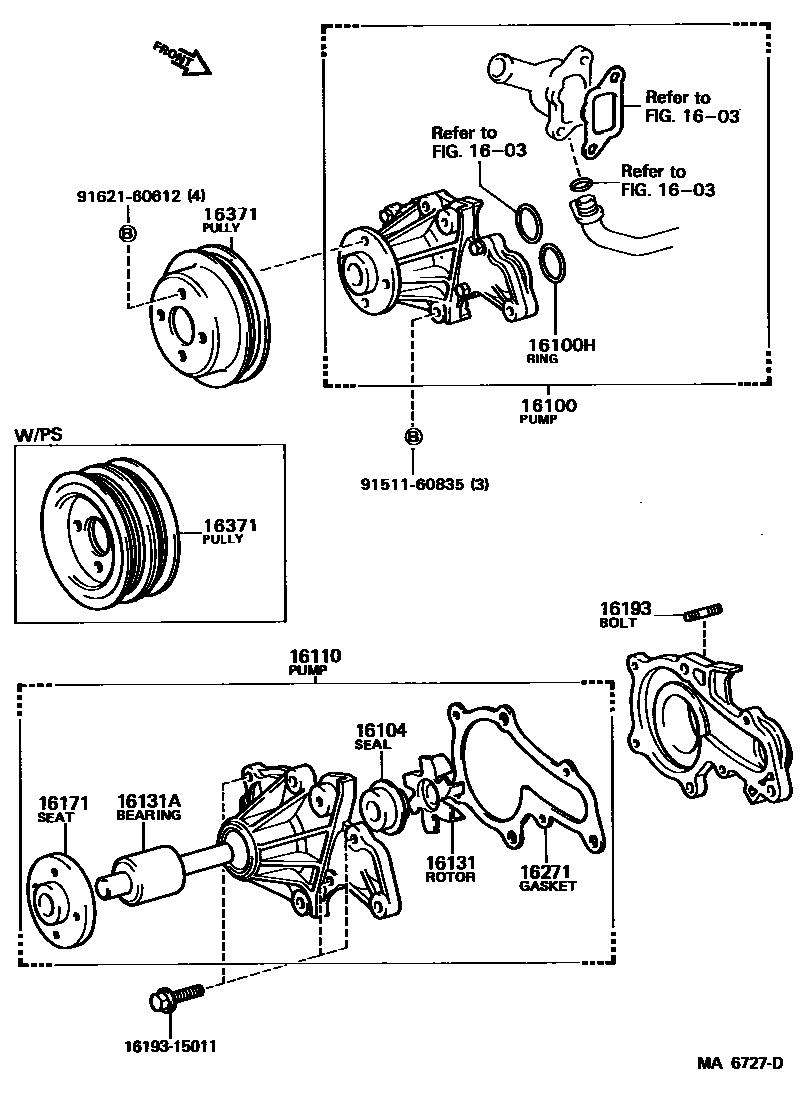

Toyota SPRINTER — WATER PUMP
1603RADIATOR & WATER OUTLET
16100PUMP ASSY, ENGINE WATER
16100HRING, O(FOR WATER PUMP)
16104SEAL SET, WATER PUMP
16110PUMP ASSY, WATER, W/O COUPLING
16131ROTOR, WATER PUMP
16131ABEARING, WATER PUMP
16171SEAT, WATER PUMP PULLEY
16193BOLT, STUD(FOR WATER PUMP COVER)
16271GASKET, WATER PUMP
16371PULLEY, FAN
W/PS
1619315011BOLT, STUD(FOR WATER PUMP COVER)
main16193-15011
9151160835
main91511-60835
9162160612
main91621-60612
14 parts on this diagram · 4 diagrams in section
WATER PUMP for Toyota SPRINTER
This section contains 25 genuine Toyota parts for the WATER PUMP system of the Toyota SPRINTER. Key components include: PUMP KIT, WATER, RADIATOR & WATER OUTLET, PUMP ASSY, ENGINE WATER, PIN, RING(FOR WATER PUMP SET), RING, O(FOR WATER PUMP).
