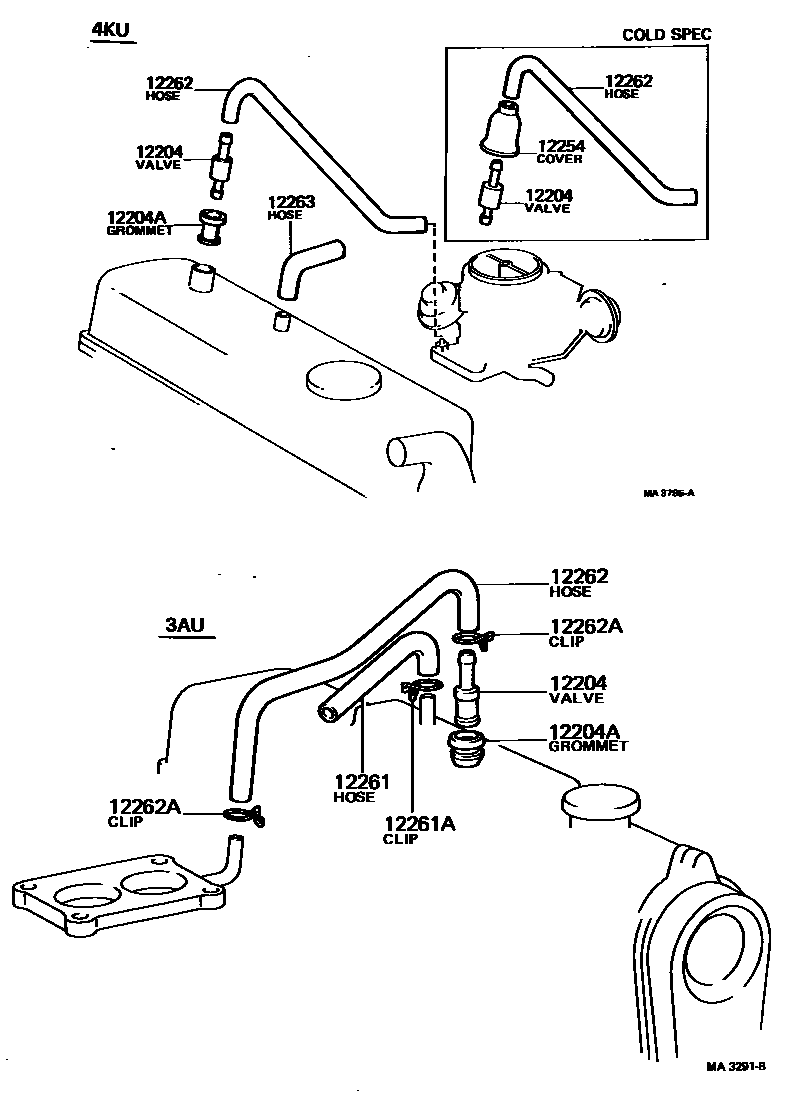

Toyota SPRINTER — VENTILATION HOSE
12204VALVE SUB-ASSY, VENTILATION
12204AGROMMET(FOR VENTILATION SYSTEM)
12254COVER, VENTILATION VALVE
COLD SPEC
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
12262HOSE, VENTILATION, NO.2
12262ACLIP(FOR VENTILATION HOSE NO.2)
12263HOSE, VENTILATION, NO.3
8 parts on this diagram · 3 diagrams in section
VENTILATION HOSE for Toyota SPRINTER
This section contains 14 genuine Toyota parts for the VENTILATION HOSE system of the Toyota SPRINTER. Key components include: CYLINDER BLOCK, VALVE SUB-ASSY, VENTILATION, GROMMET(FOR VENTILATION SYSTEM), TUBE, VENTILATION NO.1, CONNECTOR, VENTILATION NO.1.
