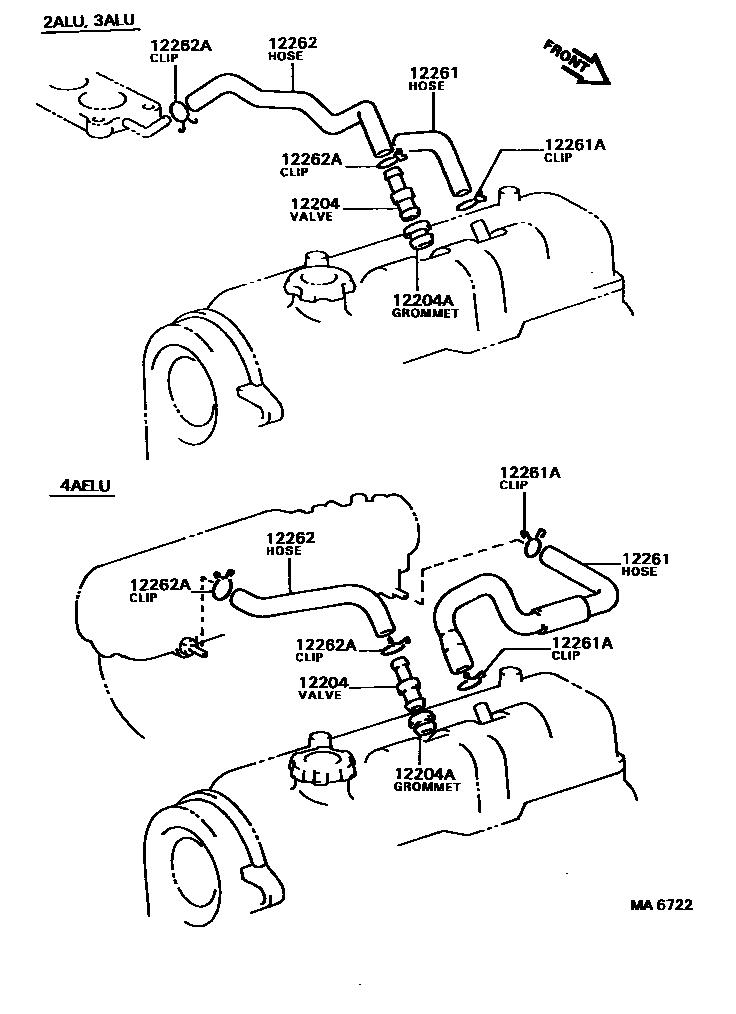

Toyota SPRINTER — VENTILATION HOSE
12204VALVE SUB-ASSY, VENTILATION
12204AGROMMET(FOR VENTILATION SYSTEM)
12261HOSE, VENTILATION
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
THROTTLE BODY SIDE
THROTTLE BODY SIDE
HEAD COVER SIDE
12262HOSE, VENTILATION, NO.2
12262ACLIP(FOR VENTILATION HOSE NO.2)
6 parts on this diagram · 4 diagrams in section
VENTILATION HOSE for Toyota SPRINTER
This section contains 8 genuine Toyota parts for the VENTILATION HOSE system of the Toyota SPRINTER. Key components include: VALVE SUB-ASSY, VENTILATION, GROMMET(FOR VENTILATION SYSTEM), TUBE, VENTILATION NO.1, CLIP(FOR VENTILATION TUBE), HOSE, VENTILATION.
