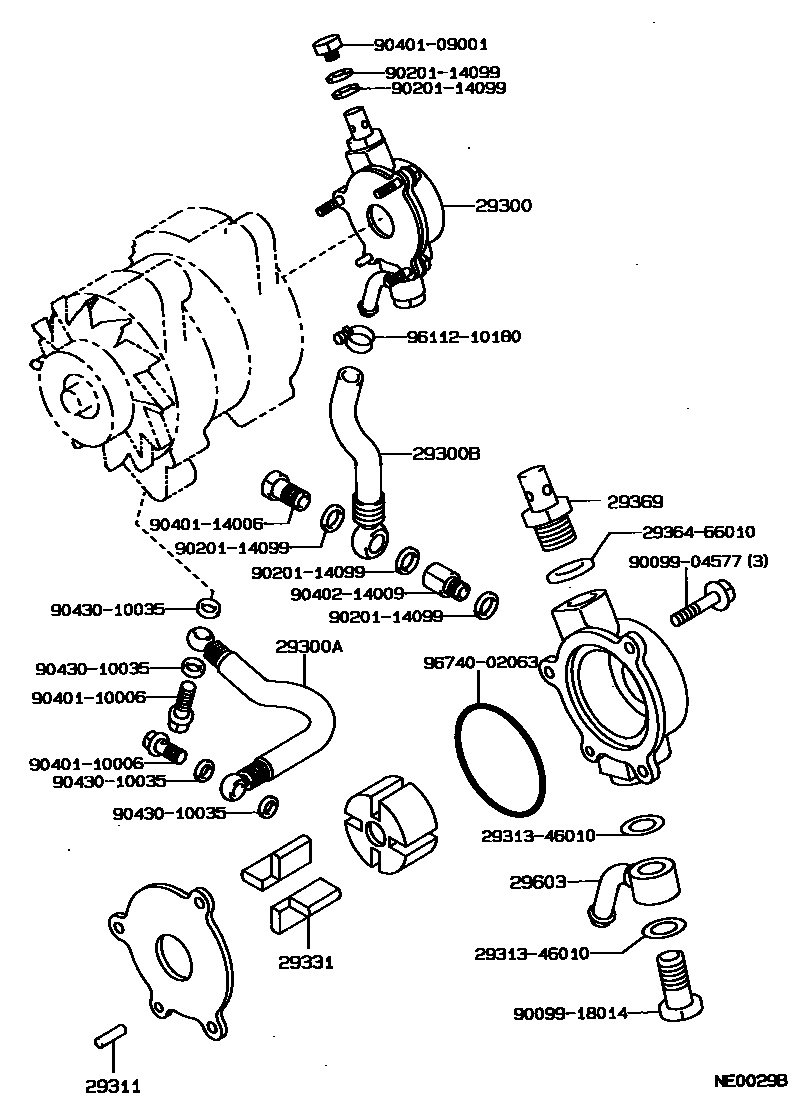

Toyota SPRINTER — VACUUM PUMP

29300PUMP ASSY, VACUUM

main29300-64020i1C..CE9#198705-198905

main29300-64040i1C,2C..CE9#198905-199101

main29300-64041i1C,2C..CE9#199101-199108

29300AHOSE, VACUUM PUMP OIL INLET

main90923-02095i1C..CE9#198705-198905

main90923-02106i1C,2C..CE9#198905-199108

29300BHOSE, VACUUM PUMP OIL OUTLET

main90923-02069i1C..CE9#198705-198905

main90923-02104i1C,2C..CE9#198905-199108

sub90923-02089

29311PIN, VACUUM PUMP DOWEL, NO.1

main29311-76010i1C,2C..CE9#198705-199108

29331BLADE, VACUUM PUMP, A

main29331-56070i1C,2C..CE9#198705-199108

29369VALVE SUB-ASSY, CHECK

main29369-56070i1C,2C..CE9#198705-199108

29603PIPE, VACUUM PUMP OIL OUTLET

main29365-64020i1C..CE9#198705-198905

main29365-64040i1C,2C..CE9#198905-199108

2931346010

main29313-46010

2936466010WASHER, VACUUM PUMP

main29364-66010

9009904577

main90099-04577

9009918014

main90099-18014

9020114099

main90201-14099

9040109001

main90401-09001

9040110006

main90401-10006

9040114006

main90401-14006

9040214009

main90402-14009

9043010035

main90430-10035

9611210180

main96112-10180

9674002063

main96740-02063

19 parts on this diagram · 1 diagram in section
