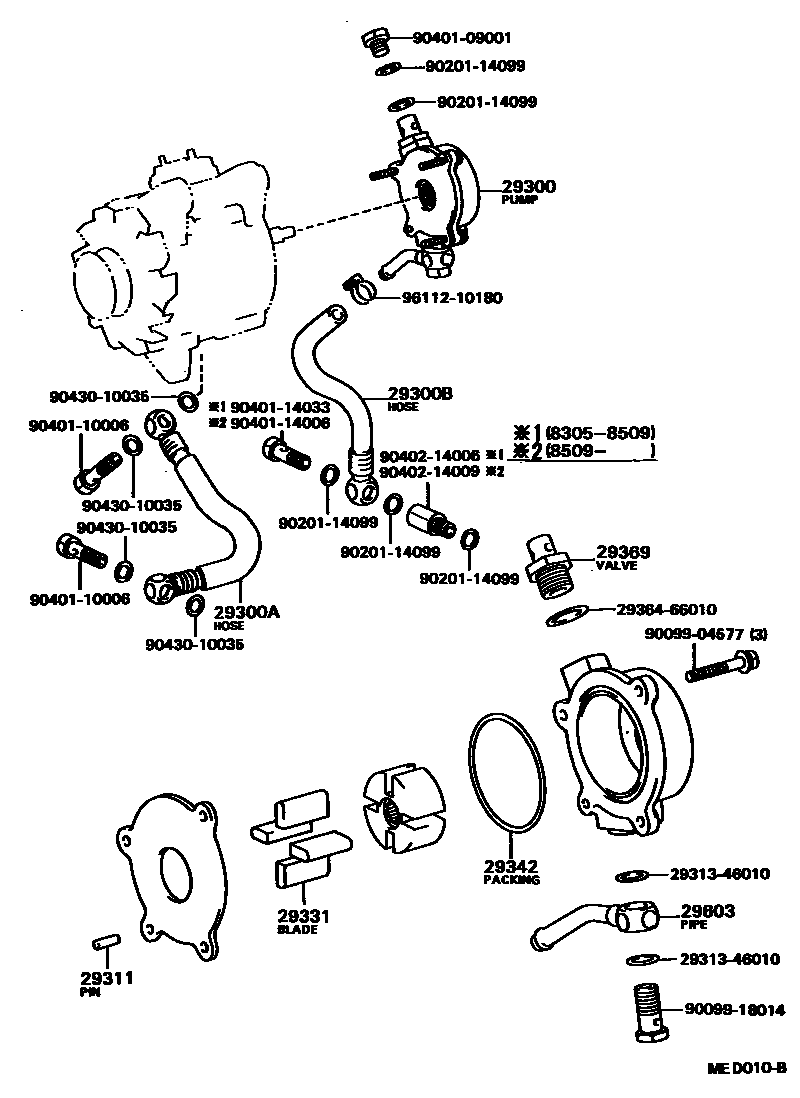

Toyota SPRINTER — VACUUM PUMP
29300PUMP ASSY, VACUUM
29300AHOSE, VACUUM PUMP OIL INLET
29300BHOSE, VACUUM PUMP OIL OUTLET
29311PIN, VACUUM PUMP DOWEL, NO.1
29331BLADE, VACUUM PUMP, A
29342PACKING, VACUUM PUMP
29369VALVE SUB-ASSY, CHECK
29603PIPE, VACUUM PUMP OIL OUTLET
2931346010
main29313-46010
2936466010WASHER, VACUUM PUMP
main29364-66010
9009904577
main90099-04577
9009918014
main90099-18014
9020114099
main90201-14099
9040109001
main90401-09001
9040110006
main90401-10006
9040114006
main90401-14006
9040114033
main90401-14033
9040214006
main90402-14006
9040214009
main90402-14009
9043010035
main90430-10035
9611210180
main96112-10180
21 parts on this diagram · 1 diagram in section
VACUUM PUMP for Toyota SPRINTER
This section contains 21 genuine Toyota parts for the VACUUM PUMP system of the Toyota SPRINTER. Key components include: PUMP ASSY, VACUUM, HOSE, VACUUM PUMP OIL INLET, HOSE, VACUUM PUMP OIL OUTLET, PIN, VACUUM PUMP DOWEL, NO.1, BLADE, VACUUM PUMP, A.
