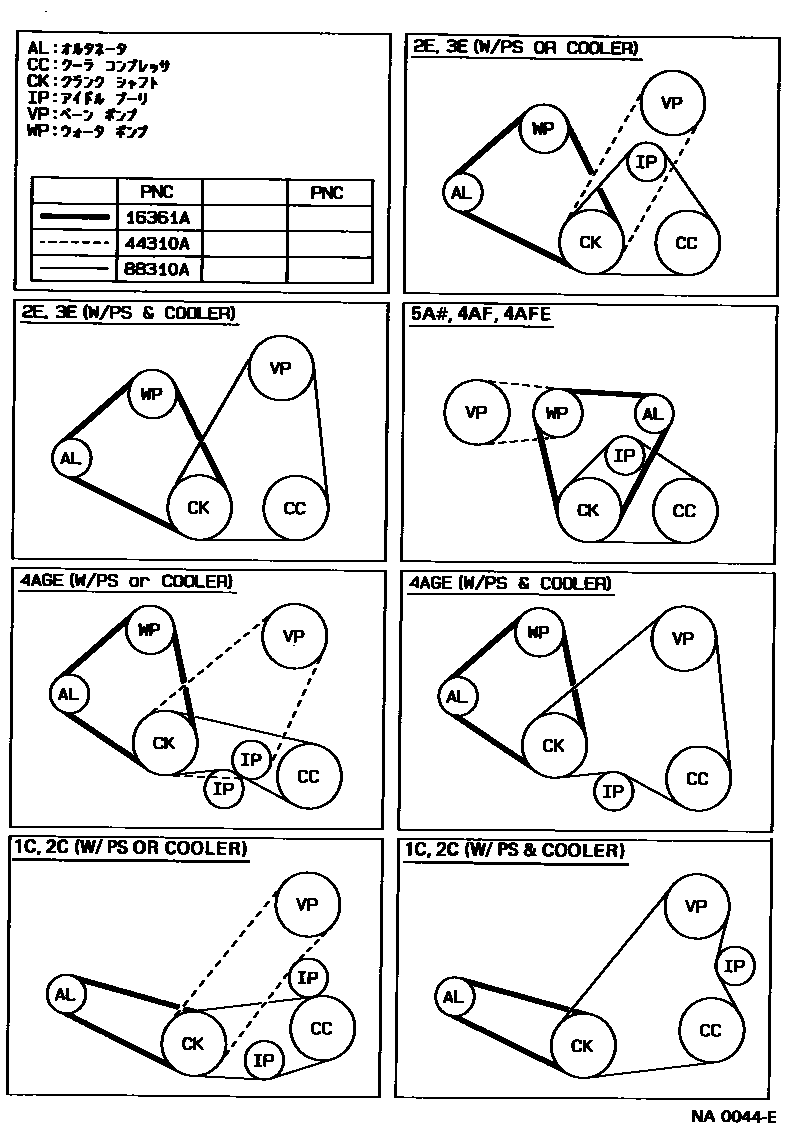

Toyota SPRINTER — V-BELT

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02135i2E..EE96..4F;2E,3E..EE90,98198908-199007

main90916-02140i1C..CE96..5F;1C..CE90..DX;1C..CE90..5F..(LX,MX,SE)198705-198905

main90916-02148i4AGE..AE92198705-198802

main90916-02155i1C..CE90..4FC198705-198708

main90916-02182i1C..CE96..4FC;1C..CE90..4FC..(LX,MX,SE)198708-198905

main90916-02237i1C..CE90198905-198908

main90916-02301i1C,2C..CE9#198912-199108

main90916-02332i2E,3E..EE9#..MTM199007-199108

main90916-02341i2E,3E..EE9#..3FC199008-199108

sub99364-20820

main99365-00970i4AF#,5AF#..AE91,95198705-198805

main99365-00980i4AFE..AE95..WG..4FC198905-198908

main99365-20970i5AFE..AE91;4AFE..AE95..AV1,AV2,LX,RVS;4AFE,5AFHE..AE91,95..5F..(MX,SE,XS)199005-199106

main99365-20980i4AFE,5AFHE..AE91,95..(4D,5D)..4FC199005-199106

main99365-50820i4AGE..AE92198802-198805

sub99365-80820

44310ABELT, V(FOR VANE PUMP)

main90916-02207iCE96..DX,XL198905-198908

sub99365-81120

main90916-02256iCE96;CE90,95..LX,MX,SE198908-199108

sub99365-81110

main99363-50630iAE91..5D198705-199106

sub99363-80630

main99365-50890iEE96,98;EE90..LX,MX198905-199108

sub99365-80890

main99365-50920iAE92198705-199106

sub99365-80920

main99365-51120iCE90..LX,MX,SE198705-198711

sub99365-81120

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90099-82018iEE96..4F198908-199108

main90916-02200iAE91..SE198705-198708

sub90916-02364

main90916-02201iAE92198705-199106

sub99365-21050

main90916-02203iCE90..MX198801-198805

sub99365-21210

main90916-02246iCE90..DX198905-199106

sub99365-21140

main99364-50840iAE91,95..AV2,G,SE,XI198803-198805

sub99364-80840

main99365-00880iEE98198808-198908

sub99365-20880

main99365-01060iEE90..3FC198707-198801

sub99365-21060

main99365-50790iCE96..STD198905-198908

main99365-50870iEE90..4F..(LX,MX)198705-198707

sub99365-20870

main99365-51210iCE90..MX198705-198801

sub99365-21210

3 parts on this diagram · 1 diagram in section
