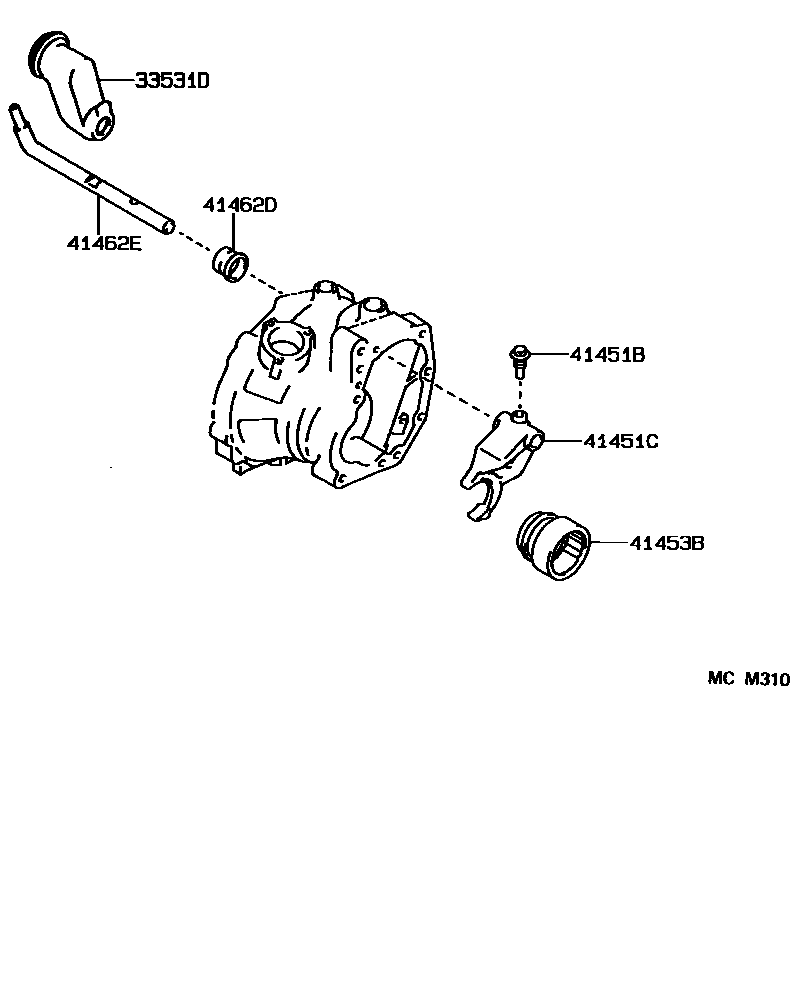

Toyota SPRINTER — TRANSFER LEVER & SHIFT ROD

0001 1E55F5 0002 1A241H 0003 1E59F,E55F ��(ABS)

33531DBOOT, DUST (FOR DIFFERENTIAL LOCK SHIFT FORK SHAFT)

main33531-12010iAE104,109..5F199109

41451BBOLT (FOR DIFFERENTIAL LOCK SHIFT FORK)

main90105-06094iAE104,CE104,109..5F199109-199508

41451CFORK, DIFFERENTIAL LOCK SHIFT

main41451-12010iAE104,109..5F199109

main41451-12020iCE104,109199109-199405

main41451-12020iCE109199405-199508

main41451-12030iAE104..4FC199109-199405

41453BSLEEVE, DIFFERENTIAL LOCK

main41453-12010iAE104,109..5F199109

main41453-12020iAE104..5F199109-199405

main41453-12020iCE109199405-199508

main41453-12030iAE104..4FC199109-199405

41462DSEAL, OIL (FOR DIFFERENTIAL LOCK SHIFT FORK SHAFT)

main90311-14007iAE104,109..5F199109

main90311-14010iAE104..5F199109-199405

main90311-14010iCE109199405-199508

41462ESHAFT, DIFFERENTIAL LOCK SHIFT FORK

main41462-12010iAE104,109..5F199109

main41462-12020iAE104..5F199109-199405

main41462-12020iCE109199405-199508

main41462-12030iAE104..4FC199109-199405

6 parts on this diagram · 3 diagrams in section
