Toyota SPRINTER — TIMING BELT

0001 1 0002 1

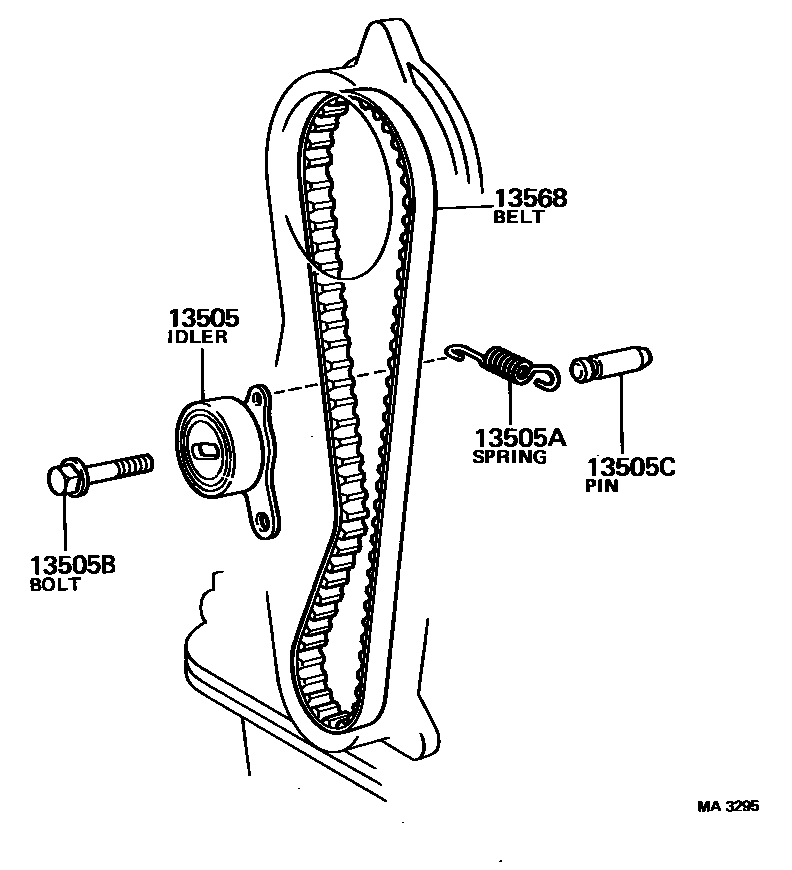

13505IDLER SUB-ASSY, TIMING BELT, NO.1

main13505-15020i3AU..AE70197903-198007

main13505-15040i3AU..AE70198007-198304

sub13505-15041

main13505-64020i1C..CE70198202-198304

sub13505-64021

13505ASPRING, TENSION(FOR IDLER)

main90506-14016i3AU..AE70197903-198304

sub90507-18017

main90507-18006i1C..CE70198202-198304

13505BBOLT, FLANGE (FOR IDLER)

main91511-61040i3AU..AE70198104-198304

main91511-61045i3AU..AE70197905-198104

sub91512-61045

main91511-61050i3AU..AE70197903-197905

13505CPIN(FOR IDLER SPRING TENSION)

main13575-64010i1C..CE70198202-198304

main90249-06006i3AU..AE70197903-198304

13568BELT, TIMING

main13568-15010i3AU..AE70197903-198304

sub13568-19125

main13568-64010i1C..CE70198202-198304

sub13568-64011

5 parts on this diagram · 2 diagrams in section
