83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iEE111199505-199704

main83420-20020iCE11#199704-200008

main83420-20040iAE11#199704-200008

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iAE110,114,EE111199803-200008

main83530-28040iAE111199803-200008

main83530-30080iAE111199704-199803

main83530-30090iAE110,114,EE111199704-199803

main83530-30100iCE11#199704-199803

main83530-60010iCE11#199803-200008

main83530-60020iAE110,114,EE111199803-200008

main83530-60040iAE111199803-200008

83531ASWITCH, OIL PRESSURE

main83531-12010iAE114..4FC199505-199704

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iAE11#,CE11#,EE111..MTM199505-199704

sub84210-52050

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-12010iAE114..5F199505-199605

84540SWITCH ASSY, NEUTRAL START

main84540-12200iAE111..4FC199505-199704

main84540-12210iAE111..4FC199505-199704

main84540-16050iAE110,114,CE110,113,EE111..ATM199704-200008

85420ESOLENOID ASSY, TRANSMISSION

main85420-12090iAE114..4FC199505-199704

85420FRING, O(FOR TRANSMISSION SOLENOID)

main90301-11001iAE114..4FC199505-199704

main90301-23001iAE114..4FC199704-200008

ID=23.5

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-12160iAE11#,EE111199704-200008

main89428-33010iCE11#199505-199704

89428ESWITCH, TEMPERATURE, NO.2 (FOR TRANSMISSION)

main89428-12140iAE114..4FC199505-199704

89465SENSOR, OXYGEN

main89465-10060iEE111199704-200008

main89465-12280iAE111,114199505-199704

main89465-12430iAE110199505-199704

main89465-13020iAE114199704-200008

main89465-16040iEE111199505-199704

main89465-19685iAE111199704-200008

89615SENSOR, KNOCK CONTROL

main89615-12030iAE11#199704-199809

main89615-22030iAE11#,EE111199505-199704

main89615-22040iEE111199505-199704

main89615-22050iAE11#199809-200008

main89615-52010iAE11#199909-200008

827111E070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E070

9043018008

main90430-18008

9161160816

main91611-60816

9165140620

main91651-40620

9165140625

main91651-40625

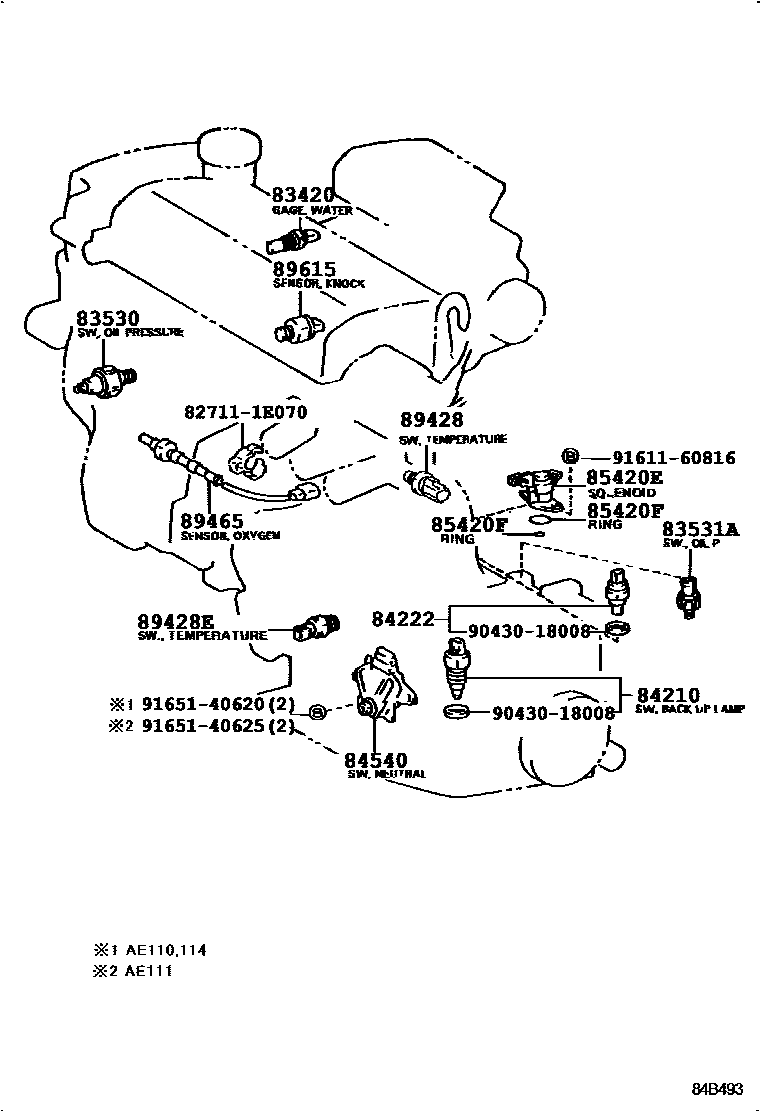

17 parts on this diagram · 13 diagrams in section
