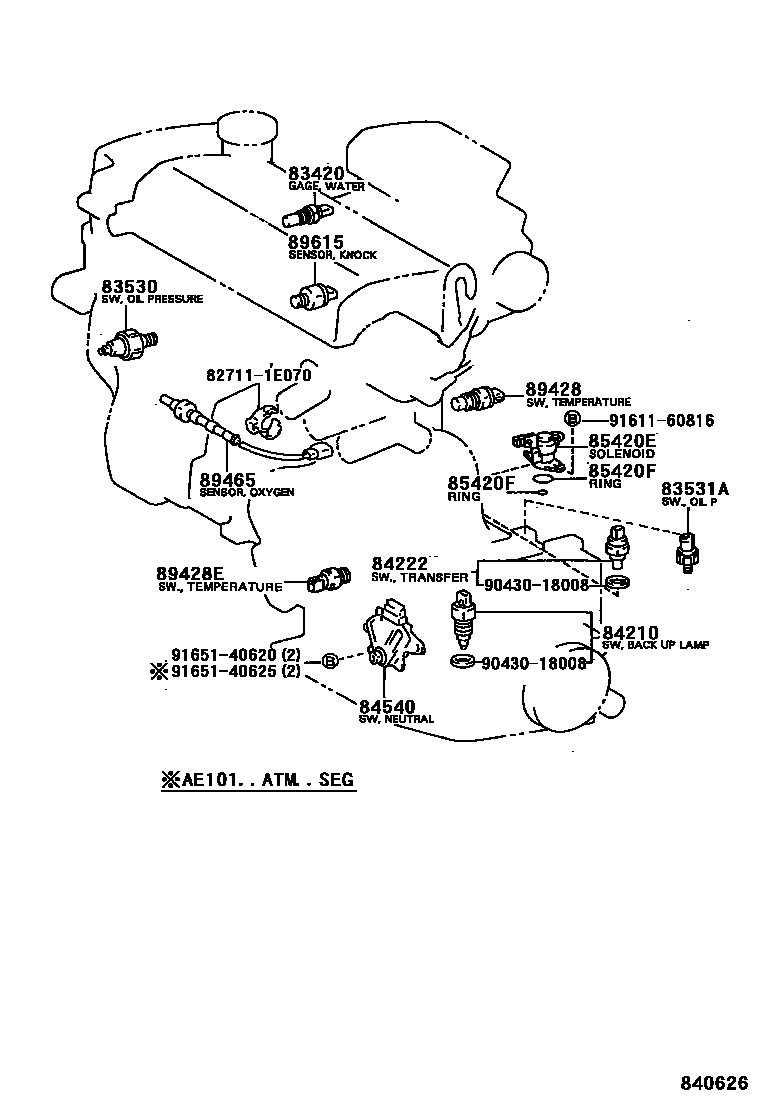

Toyota SPRINTER — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE & TRANSMISSION 0005 1ENGINE ROOM 0006 1INSTRUMENT PANEL SWITCH 0007 1COWL RH 0008 1COWL LH 0009 1COMBINATION SWITCH 0010 1COMBINATION SWITCH 0011 1ROOF,FRONT DOOR & SEAT 0012 1FLOOR,REAR DOOR & LUGGAGE

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iAE101,EE10#..CTD,DX,DXJ,GT,L,LX,XE,XL199106-199705

main83420-16050iAE10#..DX,LX,SEG,SEL,XE199212-199411

sub83420-20040

main83420-16050iAE10#..DX,LX,SEG,SEL,XE199205-199212

sub83420-20040

main83420-20020iCE10#199106

main83420-20040iAE10#..DX,LX,SEG,SEL,XE199212-199402

main83420-20040iAE10#..DX,LX,SEG,SEL,XE199402

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14060iEE10#199205-199411

sub83530-30090

main83530-28020iAE109,EE10#199803

main83530-30051iAE10#..DX,LX,SEG,SEL,XE199106-199208

sub83530-60050

main83530-30060iCE10#199106-199205

sub83530-60030

main83530-30080iAE101..GT199106-199505

sub83530-60040

main83530-30090iAE10#..DX,LX,SEG,SEL,XE199208-199803

sub83530-60020

main83530-30090iEE10#199205-199409

sub83530-60020

main83530-30100iCE10#199205-199803

sub83530-60010

main83530-60010iCE10#199803

main83530-60020iAE109,EE10#199803

83531ASWITCH, OIL PRESSURE

main83531-12010iAE104,109..4FC199109

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iAE10#,CE10#,EE10#..MTM199106

sub84210-52050

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-12010iAE104,109..5F199109

84540SWITCH ASSY, NEUTRAL START

main84540-12200iAE101..4FC199305-199505

main84540-12210iAE101..4FC199305-199505

main84540-16040iAE100,104,CE100,106,108,EE10#..ATM199106-199505

main84540-16050iAE109,CE102,106,107,108,EE10#..ATM199505

85420ESOLENOID ASSY, TRANSMISSION

main85420-12090iAE104,109..4FC199109

85420FRING, O(FOR TRANSMISSION SOLENOID)

main90301-11001iAE104,109..4FC199109-200206

main90301-23001iAE104,109..4FC199109-200206

ID=23.5

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-12160iAE10#,EE10#199106

main89428-33010iCE10#199106

89428ESWITCH, TEMPERATURE, NO.2 (FOR TRANSMISSION)

main89428-12140iAE104,109..4FC199109

89465SENSOR, OXYGEN

main89465-10020iEE101,106,107,108199106-199505

main89465-12270iAE100199106-199505

main89465-12280iAE101,104,109..DX,LX,SEG,SEL,XE199106-199704

main89465-12360iEE102,103,104199401-199704

main89465-12680iEE10#200008

main89465-13020iAE109199704

main89465-19495iAE101..GT199106-199505

main89465-33180iEE10#199704-200008

89615SENSOR, KNOCK CONTROL

main89615-12030iAE10#..DX,LX,SEG,SEL,XE199106-199809

sub89615-22050

main89615-12040iAE101..GT199106-199505

main89615-12050iAE101..GT199106-199505

sub89615-12090

main89615-22030iAE10#..DX,LX,SEG,SEL,XE199106-199909

main89615-22040iEE10#199704-199909

main89615-22050iAE109199809

sub89615-52010

main89615-52010iEE103..XL;AE109,EE104;EE102,103..(3FC,4F)..(DX,DXJ)199909

main89615-52010iEE102,103..5F..(DX,DXJ)200008

827111E070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E070

9043018008

main90430-18008

9161160816

main91611-60816

9165140620

main91651-40620

9165140625

main91651-40625

17 parts on this diagram · 12 diagrams in section
