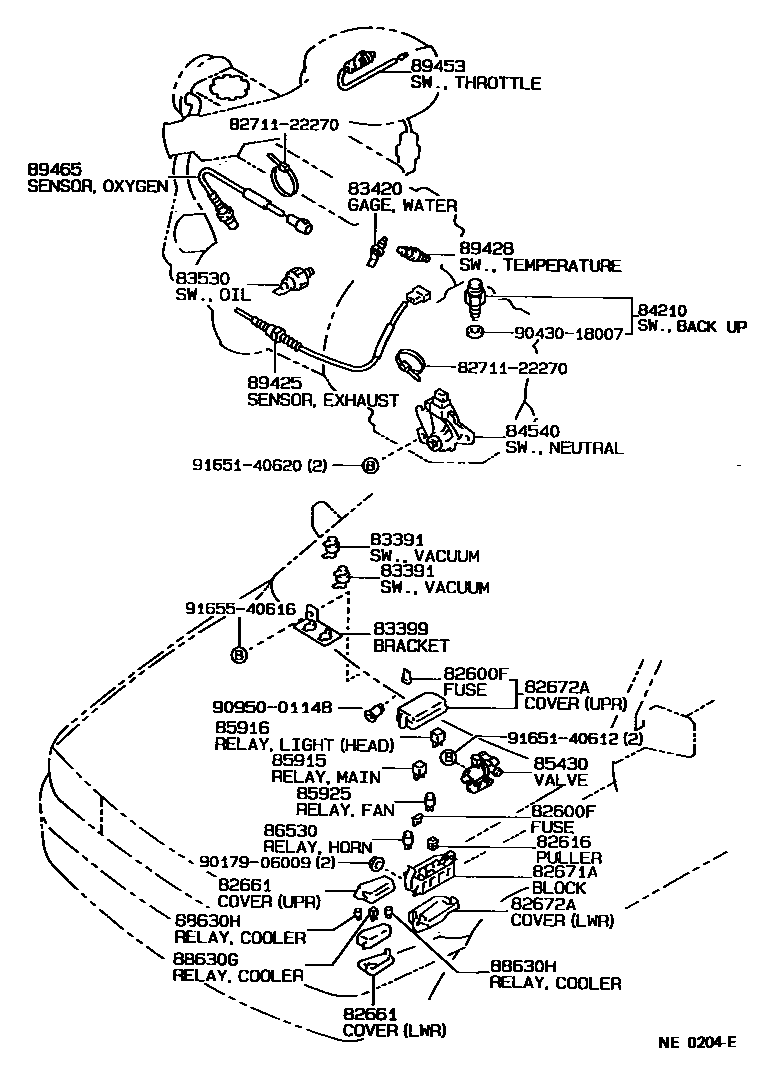

Toyota SPRINTER — SWITCH & RELAY & COMPUTER

0001 1 0003 1 0005 1 0007 1 0009 1 0010 1 0012 1 0014 1 0017 1 0019 1 0021 1 0023 1 0025 1 0027 1

82600FFUSE, FUSE BLOCK

main90982-07011iAE9#,CE9#,EE9#198705-199108

main90982-09002iAE9#,CE9#,EE9#198705-199108

main90982-09003iAE9#,CE9#,EE9#198708-199108

main90982-09004iAE9#,CE90..G,GT,SE,XI198705-199108

main90982-09005iAE9#,CE9#,EE9#198705-199108

82616PULLER, FUSE

main82616-12010iAE9#,CE9#,EE9#198705-199108

82661COVER, RELAY BLOCK, NO.1

main82661-12140iAE9#,CE9#,EE9#198705-199108

main82661-12160iAE9#,CE9#,EE9#198705-199108

82671ABLOCK, JUNCTION

main82671-12050iAE91,95,EE9#..CBR198705-199108

main82671-12080iCE96198705-199108

82672ACOVER, JUNCTION BLOCK

main82672-12010iAE91,95,EE9#..CBR198705-198908

main82672-12020iAE95,CE96..V,WG198705-198908

main82672-12070iAE9#,CE9#,EE9#198705-199108

main82672-12140iEE96..4F198908-199108

main82672-12150iAE9#,CE9#,EE9#198905-199108

83391SWITCH, VACUUM

main83391-12170iEE96,98198908-199108

MARK=120FB

main83391-12210iAE95..CBR198705-198905

MARK=80FM,TOKAIRIKA

main83391-12210iAE91,EE90..CBR198705-199108

MARK=80FM

main83391-12230iEE96,98198908-199108

MARK=250FB

main83391-12230iEE90198705-198905

MARK=250FB,TOKAIRIKA

main83391-12240iEE90198705-198905

MARK=250FB,AISIN

main83391-27060iEE96..4F198908-199108

83399BRACKET, VACUUM SWITCH

main83399-12100iEE90..4F198708-199108

main83399-12120iAE91,95..CBR198705-198905

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iAE91,95,EE9#198705-199108

main83420-20020iAE92,CE9#198705-199108

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-30050iAE91,95..AV1,AV2,DX,G,L,LX,MX,RVS,SE198705-199003

sub83530-30051

main83530-30051iAE91..XS;AE91,95..EFI199003-199106

sub83530-60050

main83530-30060iCE9#198705-199108

sub83530-60030

main83530-30080iAE92,EE9#198705-199108

sub83530-60040

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iAE91,95,CE9#,EE9#..MTM198705-199108

sub84210-52050

main84210-60021iAE92..5F198705-199106

84540SWITCH ASSY, NEUTRAL START

main84540-12170iAE92..4FC198705-199106

main84540-16030iAE91,95,CE90,96,EE9#..ATM198705-199108

85430VALVE, OUTER VENT CONTROL

main90925-09034iEE9#198710-199108

main90925-09036iAE91,95..CBR198705-198905

85915RELAY, MAIN

main90987-04002iAE9#,CE9#,EE9#198705-199108

85916RELAY, LIGHT CONTROL

main90987-02002iAE9#,CE9#,EE9#198705-199108

MARUKO,TAIL

sub90987-02004

main90987-02004iAE9#,CE9#,EE9#198705-199108

NIPPONDENSO,TAIL

main90987-02006iAE95,CE96,EE96,98..V,WG198705-199108

HEAD

85925RELAY, RADIATOR FAN

main90987-03001iAE9#,CE9#,EE9#198705-199108

86530RELAY ASSY, HORN

main90987-02002iAE9#,CE9#,EE9#198705-199108

sub90987-02004

main90987-02004iAE9#,CE9#,EE9#198705-199108

88630GRELAY ASSY, COOLER

main88630-32010iAE9#,CE90..AV2,G,GT,SE,XI198705-199108

88630HRELAY ASSY, COOLER

main90987-02004iEE90;EE96..3FC;AE91,CE90,96,EE98..CTD,DX,XL198705-199108

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-12210iAE91,95..CBR,EFI198705-199106

sub89425-32090

main89425-12250iEE9#198705-199108

main89425-19395iAE92;AE91..EFIS198705-199106

main89425-19415iEE98198808-198908

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-10100iEE9#198705-198908

main89428-10110iEE96,98198705-198908

main89428-12100iAE95..4FC198710-199106

A/T OIL TEMP.

main89428-15011iAE9#198705-198905

ENGINE OIL TEMP.

sub89428-32010

main89428-15011iAE9#,EE90198905-199108

RADIATOR FAN

sub89428-32010

main89428-15030iCE9#198705-199108

main89428-20060iEE90198905-199108

89453SWITCH, THROTTLE POSITION (FOR T.C.S.)

main89453-12030iAE91,95..CBR198705-198905

main89453-12050iEE90198905-199108

sub89453-12040

main89453-16010iEE90,98198705-198908

sub89453-12040

89465SENSOR, OXYGEN

main89465-10010iEE90..3FC..DX198805-199108

main89465-12080iAE91,95..CBR198705-198905

main89465-19175iAE92198705-199106

sub89465-19176

main89465-19375iAE91..EFIS198905-199106

main89465-32060iAE91,95..EFI198705-199106

8271122270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22270

9017906009

main90179-06009

9043018007

main90430-18007

9095001148

main90950-01148

9165140612

main91651-40612

9165140620

main91651-40620

9165540616

main91655-40616

29 parts on this diagram · 14 diagrams in section
