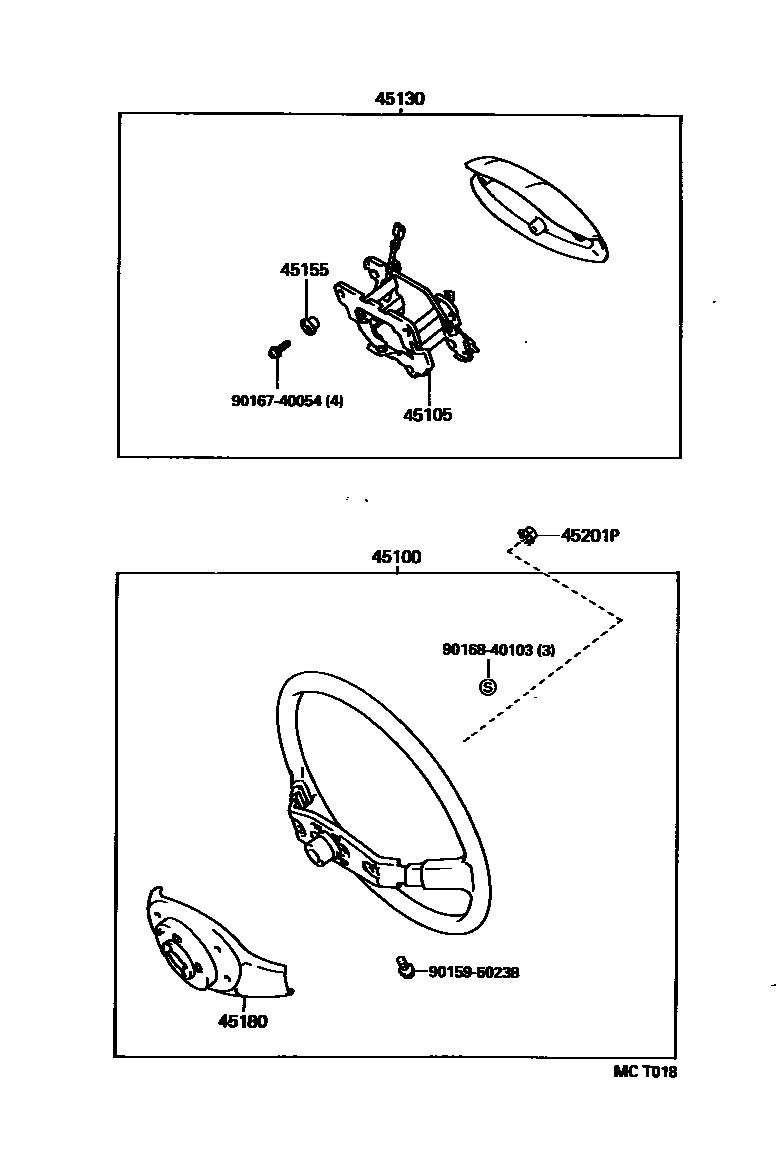

Toyota SPRINTER — STEERING WHEEL
45100WHEEL ASSY, STEERING
main45100-12751-B0iAE110,114..4FC..SEVIN; AE111,CE11#,EE111;AE110,114..LX,XEVIN;AE110,114..5F..SEVIN199604-199605
main45100-12751-E0iAE110,114..4FC..SEVIN; AE110,114..XEVIN;AE110,114..5F..SEVIN;CE11#,EE111..SEVIN,XEVIN199604-199605
main45100-13010-B1iAE110,114,EE111..(3FC,4FC,5F)..(SEVIN,XEVIN); CE11#,EE111..(4F,4FC,5F)..(SEVIN,XEVIN); CE11#,EE111..(4F,4FC,5F)..LX199704-199804
45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45130BUTTON ASSY, HORN
SHADOW GRAY,TRIM1#
SHADOW GRAY,TRIM1#
OAK,TRIM4#
SHADOW GRAY,TRIM1#
DK.CHARCOAL,TRIM1#
BLACK,TRIM1#
main45130-1A130-B0iAE110,114..LX;EE111..3FC..LX;CE11#,EE111..4FC,5F; EE111..3FC..XEVIN;AE110,114..SEVIN,XEVIN199804-200008
main45130-1A140-B1iAE110,114..LX;EE111..3FC..LX;CE11#,EE111..4FC,5F; EE111..3FC..XEVIN;AE110,114..SEVIN,XEVIN199804-199807
main45130-1A170-B0iCE11#,EE111..(4F,4FC,5F)..(SEVIN,XEVIN); CE11#,EE111..(4F,4FC,5F)..LX199704-199709
45155SPACER, HORN BUTTON CONTACT PLATE
45180COVER SUB-ASSY, STEERING WHEEL
SHADOW GRAY,TRIM1#
SHADOW GRAY,TRIM1#
OAK,TRIM4#
SHADOW GRAY,TRIM1#
45201PNUT, STEERING WHEEL SET
9015950238
main90159-50238
9016740054
main90167-40054
9016840103
main90168-40103
9 parts on this diagram · 6 diagrams in section
STEERING WHEEL for Toyota SPRINTER
This section contains 20 genuine Toyota parts for the STEERING WHEEL system of the Toyota SPRINTER. Key components include: WHEEL ASSY, STEERING, PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1, WIRE SUB-ASSY, HORN BUTTON, BUTTON SUB-ASSY, HORN(FOR STEERING WHEEL ASSY), BUTTON ASSY, HORN.
