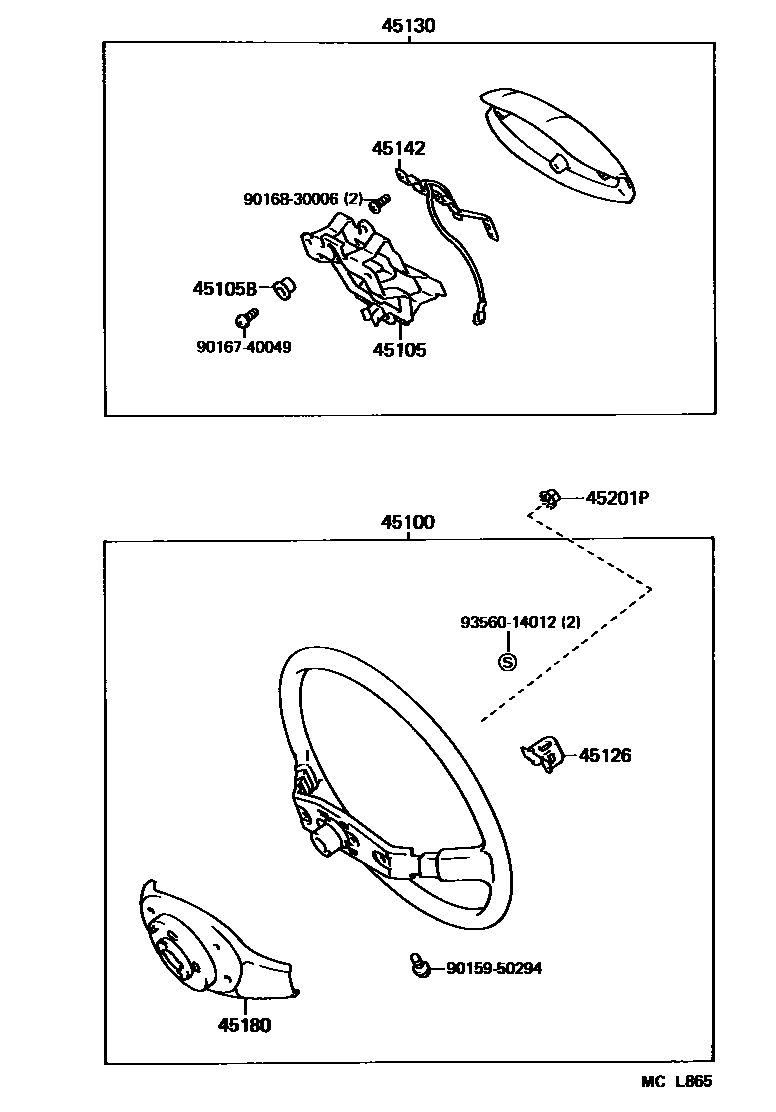

Toyota SPRINTER — STEERING WHEEL
45100WHEEL ASSY, STEERING
main45100-12631-P0iAE100,104,CE100,104,EE101..LX,XE; CE106,109,EE103,107..XL; CE108,EE104199309-199505
45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105BSPACER(FOR HORN BUTTON CONTACT PLATE)
45126PLATE, STEERING WHEEL PAD SET
45130BUTTON ASSY, HORN
TAUPE,TRIM9#
TAUPE,TRIM9#
main45130-12691-P0iAE100,104,CE100,104,EE101..LX,XE; CE106,109,EE103,107..XL; CE108,EE104199309-199505
TAUPE,TRIM9#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#
SHADOW GRAY,TRIM1#
45142SEAT, HORN BUTTON CONTACT, NO.1
45180COVER SUB-ASSY, STEERING WHEEL
main45180-12110-B0iAE109;EE103..XL;EE102,103..(3FC,4F)..(DX,DXJ); EE103..5F..DX;CE105,107,EE102..4FC,5F199804-200206
SHADOW GRAY,TRIM1#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
TAUPE,TRIM9#
SHADOW GRAY,TRIM1#
45201PNUT, STEERING WHEEL SET
9015950294
main90159-50294
9016740049
main90167-40049
9016830006
main90168-30006
9356014012
main93560-14012
12 parts on this diagram · 6 diagrams in section
STEERING WHEEL for Toyota SPRINTER
This section contains 31 genuine Toyota parts for the STEERING WHEEL system of the Toyota SPRINTER. Key components include: WHEEL ASSY, STEERING, PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1, SPACER(FOR HORN BUTTON CONTACT PLATE), PLATE, STEERING WHEEL PAD SET, BUTTON, HORN, NO.2.
