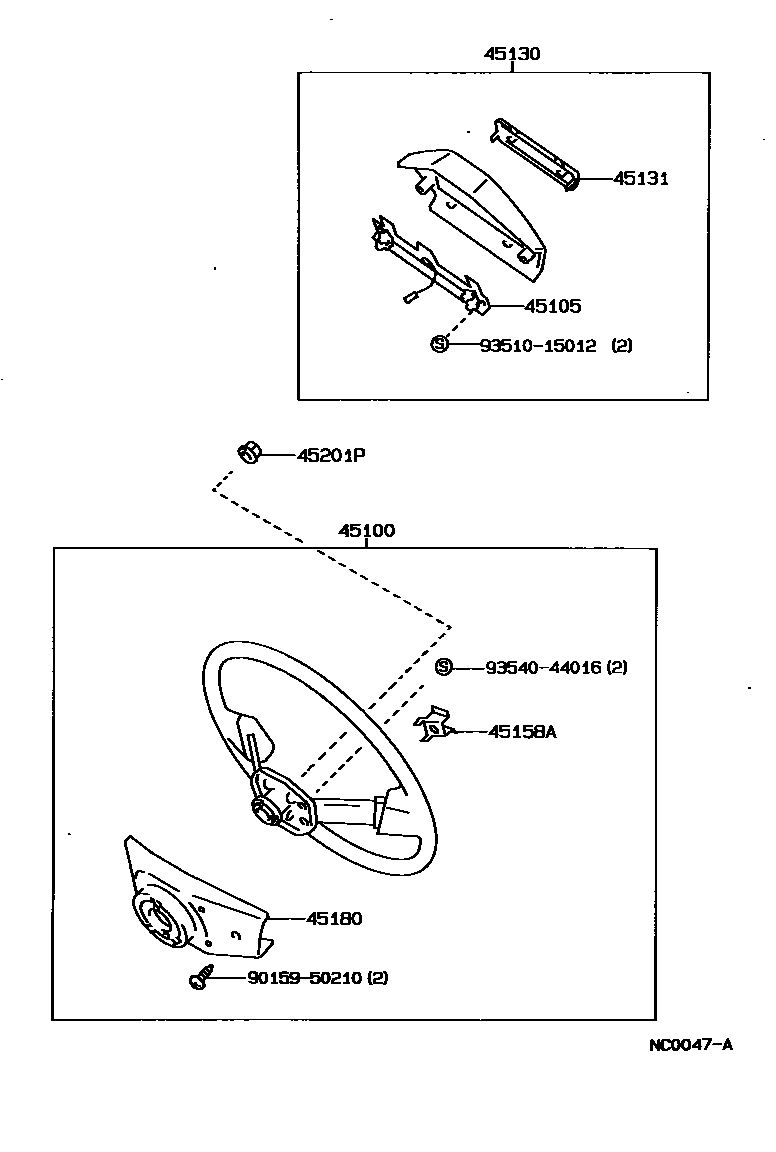

Toyota SPRINTER — STEERING WHEEL

0001 1(8905- )�������������� ���0003 1(8908- )XL ����� 0007 1SE ��-� ������/MX ��-� 0013 1AV2 �-���� ������/SE��-� ����

45100WHEEL ASSY, STEERING

main45100-12490-02iAE91,95,CE90,EE90..MX198705-198905

sub45100-12491

main45100-12490-03iAE91,95,CE9#,EE9#..AV1,DX,LX,MX,STD,XL198705-198905

sub45100-12491

main45100-12490-05iCE96,EE96,98..DX,XL;AE91,95,CE90,EE90..AV1,LX,MX198705-198905

sub45100-12491

main45100-12491-02iAE91..3FC..MX198905-199108

sub45100-12491

main45100-12491-03iAE91..3FC..MX198905-199108

sub45100-12491

main45100-12491-03iAE91,95,CE9#,EE9#..AV1,CTD,DX,LX,STD,XL198905-199108

sub45100-12491

main45100-12491-04iAE91..3FC..MX198905-199108

sub45100-12491

main45100-12491-04iAE91,95,CE9#,EE9#..AV1,CTD,DX,LX,XL198905-199108

sub45100-12491

main45100-12491-05iAE95,CE96,EE96,98..AV1,DX,XL198905-198908

sub45100-12491

main45100-12500-02iAE91,95,CE90..SE..(CBR,DSL)198705-198905

sub45100-12500

main45100-12500-02iAE91,95,CE90,EE90..MX198805-198905

sub45100-12500

main45100-12500-03iAE91,95,CE90,EE90..MX198805-198905

sub45100-12500

main45100-12500-03iEE98..(3FC,5F)..XL198808-198908

sub45100-12500

main45100-12500-03iEE98..(3FC,5F)..XL198908-198909

sub45100-12500

main45100-12500-03iAE91,95,CE90..SE..(CBR,DSL)198705-198905

sub45100-12500

main45100-12500-05iEE98..(3FC,5F)..XL198808-198908

sub45100-12500

main45100-12500-05iAE91,95,CE90..SE..(CBR,DSL)198705-198905

sub45100-12500

main45100-12500-05iAE91,95,CE90,EE90..MX198805-198905

sub45100-12500

main45100-12530-01iAE95..AV2198802-198905

sub45100-12532

main45100-12530-02iAE91..SE198801-198904

sub45100-12532

main45100-12530-02iAE91,95,CE90..SE..(CBR,DSL)198901-198904

sub45100-12532

main45100-12530-02iAE91..SE..EFI198805-198905

sub45100-12532

main45100-12530-03iAE91..SE..EFI;AE91,95..AV2,G,L,RVS,XI198705-198905

sub45100-12532

main45100-12530-05iAE91..SE..EFI;AE91,95..G,L,RVS,XI198705-198905

sub45100-12532

main45100-12532iAE95..AV2198908-199105

main45100-12532-01iAE95..AV2198908-199009

sub45100-12532

main45100-12532-02iAE91198909

sub45100-12532

main45100-12532-02iAE91,CE90..MX199001-199101

sub45100-12532

main45100-12532-02iAE91,95,CE90,95..MX199101-199106

sub45100-12532

main45100-12532-02iAE91..SE..EFI199005-199106

sub45100-12532

main45100-12532-02iAE91..SE..EFIS198905-199106

sub45100-12532

main45100-12532-02iAE91..SE198909-199005

sub45100-12532

main45100-12532-02iAE91,95,CE90,95199101

sub45100-12532

main45100-12532-02iAE91..EFI199005

sub45100-12532

main45100-12532-03iAE91,95,CE90,95199101

sub45100-12532

main45100-12532-03iAE91,95,CE90,95..MX199001-199101

sub45100-12532

main45100-12532-03iAE91..SE..EFIS;AE91,95..AV2,G,L,RVS,XS198905-199106

sub45100-12532

main45100-12532-03iAE91..SE..EFI199005-199106

sub45100-12532

main45100-12532-03iAE91,95,CE90,95..MX199101-199106

sub45100-12532

main45100-12532-04iAE91..5D;AE91..SE..EFIS198905-199106

sub45100-12532

main45100-12532-04iAE91..SE..EFI199005-199106

sub45100-12532

main45100-12532-04iAE91,95,CE90,95..MX199101-199106

sub45100-12532

main45100-12532-05iAE95..RVS198905-198908

sub45100-12532

main45100-12550-01iAE95..AV2198802-198907

sub45100-12550

main45100-12550-01iAE92198705-198905

sub45100-12550

main45100-12550-03iAE95..AV2198802-198908

sub45100-12550

main45100-12550-12iAE91..EFI198901-198904

sub45100-12550

main45100-12550-12iAE91..SE..EFI198901-198904

sub45100-12550

main45100-12550-12iAE91..SE..EFI198811-198812

sub45100-12550

main45100-12550-C0iAE95..AV2198907-198908

sub45100-12550

main45100-12570-02iAE91,95,CE90,95,EE90..(MX,SE)..(CBR,DSL,EFI)198905-199108

sub45100-12571

sub45100-12570

main45100-12570-03iAE91,95,CE90,95,EE90..(MX,SE)..(CBR,DSL,EFI)198905-199108

sub45100-12571

sub45100-12570

main45100-12570-03iCE96,EE98..(3FC,4FC,5F)..XL198908-199108

sub45100-12571

sub45100-12570

main45100-12570-04iAE91,95,CE90,95,EE90..(MX,SE)..(CBR,DSL,EFI)198905-199108

sub45100-12571

sub45100-12570

main45100-12570-04iCE96,EE98..(3FC,4FC,5F)..XL198908-199108

sub45100-12571

sub45100-12570

main45100-12580-01iAE95..AV2198908-199009

sub45100-12580

main45100-12580-01iAE92198905-199106

sub45100-12580

main45100-12580-03iAE95..AV2198908-199009

sub45100-12580

main45100-12580-04iAE95..AV2198908-199009

sub45100-12580

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-12050iAE91,95,CE90,95..MX199101-199106

main45105-12050iAE91..5D;AE91..SE..EFIS198705-199106

main45105-12050iAE91..SE..EFI198801-199106

main45105-12050iAE91..SE198909-199005

main45105-12050iAE91,95,CE90,95..MX199001-199101

main45105-12060iAE91,95,CE90..SE..(CBR,DSL)198705-198905

main45105-12060iEE98..(3FC,5F)..XL198808-198908

main45105-12060iAE91,95,CE90,EE90..MX198805-198905

main45105-12070iAE91,95,CE9#,EE9#..AV1,DX,LX,MX,STD,XL198705-199108

main45105-12070iAE91..3FC..MX198905-199106

main45105-12080iAE91..SE..EFI198901-198904

main45105-12080iAE91..SE..EFI198811-198812

main45105-12080iAE92198705-198905

main45105-12080iAE95..AV2198802-198908

main45105-12110iAE91,95,CE90,95,EE90..(MX,SE)..(CBR,DSL,EFI)198905-199108

main45105-12110iCE96,EE98..(3FC,4FC,5F)..XL198908-199108

main45105-12120iAE92198905-199106

main45105-12120iAE95..AV2198908-199009

45130BUTTON ASSY, HORN

main45130-12340-02iAE91,CE90,EE90..MX198705-198905

MAROON,TRIM3#

sub45130-12341

main45130-12340-03iAE91,CE9#,EE9#..DX,LX,MX,STD,XL198705-198905

SHADOW GRAY,TRIM1#

sub45130-12341

main45130-12340-05iCE96,EE96,98..DX,XL;AE91,CE90,EE90..LX,MX198705-198905

DARK BEIGE,TRIM4#

sub45130-12341

main45130-12341-02iCE90,EE90..MX198905-198908

MAROON

sub45130-12341

main45130-12341-02iAE91..3FC..MX198905-199106

sub45130-12341

main45130-12341-03iAE91,CE90,96,EE9#..CTD,DX,LX,XL198905-199108

SHADOW GRAY,TRIM1#

sub45130-12341

main45130-12341-03iAE91..3FC..MX198905-199106

sub45130-12341

main45130-12341-03iAE91,CE9#,EE9#..DX,LX,STD,XL198905-198908

SHADOW GRAY

sub45130-12341

main45130-12341-04iAE91..3FC..MX198905-199106

sub45130-12341

main45130-12341-04iAE91,CE90,EE90..DX,LX198905-199108

DARK BLUE,TRIM8#

sub45130-12341

main45130-12341-05iCE90,EE90..LX,MX198905-198908

DARK BEIGE,TRIM4#

sub45130-12341

main45130-12341-05iCE96,EE96,98..DX,XL198905-198908

DARK BEIGE

sub45130-12341

main45130-12350-02iAE91,CE90,EE90..(MX,SE)..(CBR,DSL,EFI)198905-199106

MAROON,TRIM3#

sub45130-12350

main45130-12350-03iCE96,EE98..(3FC,4FC,5F)..XL198908-199108

sub45130-12350

main45130-12350-03iAE91,CE90,EE90..(MX,SE)..(CBR,DSL,EFI)198905-199106

SHADOW GRAY,TRIM1#

sub45130-12350

main45130-12350-04iAE91,CE90,EE90..(MX,SE)..(CBR,DSL,EFI)198905-199106

DARK BLUE,TRIM8#

sub45130-12350

main45130-12350-04iCE96,EE98..(3FC,4FC,5F)..XL198908-199108

sub45130-12350

main45130-12370-02iAE91,CE90..SE..(CBR,DSL)198705-198905

MAROON,TRIM3#

main45130-12370-02iAE91,CE90,EE90..MX198805-198905

main45130-12370-03iAE91,CE90..SE..(CBR,DSL)198705-198905

SHADOW GRAY,TRIM1#

main45130-12370-03iEE98..(3FC,5F)..XL198808-198908

main45130-12370-03iAE91,CE90,EE90..MX198805-198905

main45130-12370-05iAE91,CE90..SE..(CBR,DSL)198705-198905

DARK BEIGE,TRIM4#

main45130-12370-05iAE91,CE90,EE90..MX198805-198905

main45130-12370-05iEE98..(3FC,5F)..XL198808-198908

main45130-12390-02iAE91,CE90..SE..(CBR,DSL)198801-198904

sub45130-12391

main45130-12390-02iAE91,CE90..SE..(CBR,DSL)198901-198904

sub45130-12391

main45130-12390-02iAE91..SE..EFI198805-198905

MAROON,TRIM3#

sub45130-12391

main45130-12390-03iAE91..5D;AE91..SE..EFI198705-198905

SHADOW GRAY,TRIM1#

sub45130-12391

main45130-12390-05iAE91..5D;AE91..SE..EFI198705-198905

DARK BEIGE,TRIM4#

sub45130-12391

main45130-12391-02iAE91,CE90..MX199001-199106

sub45130-12391

sub45130-12501

main45130-12391-02iAE91..SE..EFIS198905-199106

MAROON,TRIM3#

sub45130-12391

sub45130-12501

main45130-12391-02iAE91..SE..EFI198905-198908

MAROON

sub45130-12391

sub45130-12501

main45130-12391-02iAE91..SE198909-199005

sub45130-12391

sub45130-12501

main45130-12391-02iAE91198909

sub45130-12391

sub45130-12501

main45130-12391-02iAE91..EFI199005

sub45130-12391

sub45130-12501

main45130-12391-02iAE91..SE..EFI199005-199106

sub45130-12391

sub45130-12501

main45130-12391-02iAE91,CE90199101

sub45130-12391

sub45130-12501

main45130-12391-03iAE91,CE90..MX199001-199106

sub45130-12391

sub45130-12501

main45130-12391-03iAE91,CE90199101

sub45130-12391

sub45130-12501

main45130-12391-03iAE91..SE..EFI199005-199106

sub45130-12391

sub45130-12501

main45130-12391-03iAE91..5D;AE91..SE..EFIS198905-199106

SHADOW GRAY,TRIM1#

sub45130-12391

sub45130-12501

main45130-12391-04iAE91..5D;AE91..SE..EFIS198905-199106

DARK BLUE,TRIM8#

sub45130-12391

sub45130-12501

main45130-12391-04iAE91,CE90..MX199101-199106

sub45130-12391

sub45130-12501

main45130-12391-04iAE91..SE..EFI199005-199106

sub45130-12391

sub45130-12501

main45130-12430-01iAE92198705-198905

BLACK,TRIM1#

sub45130-12430

main45130-12430-12iAE91..SE..EFI198901-198904

sub45130-12430

main45130-12430-12iAE91..EFI198901-198904

sub45130-12430

main45130-12430-12iAE91..SE..EFI198811-198812

sub45130-12430

main45130-12480-02iAE95..MX198710-198905

MAROON,TRIM3#

sub45130-12481

main45130-12480-03iAE95..AV1,LX,MX198710-198905

SHADOW GRAY,TRIM1#

sub45130-12481

main45130-12480-05iAE95..AV1,LX,MX198710-198905

DARK BEIGE,TRIM4#

sub45130-12481

main45130-12481-03iAE95,CE95..AV1,LX198905-199106

SHADOW GRAY,TRIM1#

sub45130-12481

main45130-12481-04iAE95..LX198905-199106

DARK BLUE,TRIM8#

sub45130-12481

main45130-12481-05iAE95..AV1198905-198908

DARK BEIGE,TRIM4#

sub45130-12481

main45130-12490-02iAE95..MX198805-198905

main45130-12490-02iAE95..SE198710-198905

MAROON,TRIM3#

main45130-12490-03iAE95..SE198710-198905

SHADOW GRAY,TRIM1#

main45130-12490-03iAE95..MX198805-198905

main45130-12490-05iAE95..SE198710-198905

DARK BEIGE,TRIM4#

main45130-12490-05iAE95..MX198805-198905

main45130-12500-01iAE95..AV2198802-198905

BLACK,TRIM1#

sub45130-12501

main45130-12500-02iAE95..SE198901-198904

sub45130-12501

main45130-12500-02iAE95198901-198904

sub45130-12501

main45130-12500-03iAE95..AV2,RVS198802-198905

SHADOW GRAY,TRIM1#

sub45130-12501

main45130-12500-05iAE95..RVS198802-198905

DARK BEIGE,TRIM4#

sub45130-12501

main45130-12501-01iAE95..AV2198905-198908

BLACK,TRIM1#

sub45130-12501

sub45130-12391

main45130-12501-02iAE95,CE95..MX199101-199106

sub45130-12501

sub45130-12391

main45130-12501-03iAE95,CE95..MX199001-199106

sub45130-12501

sub45130-12391

main45130-12501-03iAE95,CE95199101

sub45130-12501

sub45130-12391

main45130-12501-03iAE95..AV2,RVS198908-199009

SHADOW GRAY,TRIM1#

sub45130-12501

sub45130-12391

main45130-12501-04iAE95..AV2,RVS198908-199009

DARK BLUE,TRIM8#

sub45130-12501

sub45130-12391

main45130-12501-04iAE95,CE95..MX199101-199106

sub45130-12501

sub45130-12391

main45130-12501-05iAE95..RVS198905-198908

DARK BEIGE,TRIM4#

sub45130-12501

sub45130-12391

main45130-12510-01iAE95..AV2198802-198908

sub45130-12430

main45130-12510-03iAE95..AV2198802-198908

sub45130-12430

main45130-12600-02iAE95,CE95..MX,SE198905-199106

MAROON,TRIM3#

sub45130-12600

main45130-12600-03iAE95,CE95..MX,SE198905-199106

SHADOW GRAY,TRIM1#

sub45130-12600

main45130-12600-04iAE95,CE95..MX,SE198905-199106

DARK BLUE,TRIM8#

sub45130-12600

main45130-12630-01iAE92198905-199106

BLACK,TRIM1#

sub45130-12630

main45130-12640-01iAE95..AV2198908-199009

sub45130-12630

main45130-12640-03iAE95..AV2198908-199009

sub45130-12630

main45130-12640-04iAE95..AV2198908-199009

sub45130-12630

45131BUTTON, HORN, NO.1

main45131-12260-02iAE91,CE90,EE90..MX198705-198905

MAROON,TRIM3#

sub45131-12261

main45131-12260-03iAE91,CE9#,EE9#..DX,LX,MX,STD,XL198705-198905

SHADOW GRAY,TRIM1#

sub45131-12261

main45131-12260-05iCE96,EE96,98..DX,XL;AE91,CE90,EE90..LX,MX198705-198905

DARK BEIGE,TRIM4#

sub45131-12261

main45131-12261-02iAE91..3FC..MX198905-199106

sub45131-12261

main45131-12261-03iAE91..3FC..MX198905-199106

sub45131-12261

main45131-12261-03iAE91,CE90,96,EE9#..CTD,DX,LX,STD,XL198905-199108

SHADOW GRAY,TRIM1#

sub45131-12261

main45131-12261-04iAE91,CE90,EE90..DX,LX198905-199108

DARK BLUE,TRIM8#

sub45131-12261

main45131-12261-04iAE91..3FC..MX198905-199106

sub45131-12261

main45131-12261-05iCE96,EE96,98..DX,XL198905-198908

DARK BEIGE,TRIM4#

sub45131-12261

main45131-12270-02iAE95..MX198710-198905

MAROON,TRIM3#

sub45131-12271

main45131-12270-03iAE95..AV1,LX,MX198710-198905

SHADOW GRAY,TRIM1#

sub45131-12271

main45131-12270-05iAE95..LX,MX198710-198905

DARK BEIGE,TRIM4#

sub45131-12271

main45131-12271-03iAE95,CE95..AV1,LX198905-199106

SHADOW GRAY,TRIM1#

sub45131-12271

main45131-12271-04iAE95,CE95..AV1,LX198905-199106

DARK BLUE,TRIM8#

sub45131-12271

main45131-12271-05iAE95..AV1198905-198908

DARK BEIGE,TRIM4#

sub45131-12271

45158ASOCKET, HORN BUTTON JOINT

main45158-12020iAE91,95,CE9#,EE9#..AV1,CTD,DX,LX,STD,XL198905-199108

main45158-12020iAE91,95,CE9#,EE9#..AV1,DX,LX,MX,STD,XL198705-198905

main45158-12030iAE92,95..AV2,GT198705-199106

main45158-12030iAE91..SE..EFI198811-198812

main45158-12030iAE91..SE..EFI198901-198904

main45158-12030iAE95..AV2198802-198908

45180COVER SUB-ASSY, STEERING WHEEL

main45180-12040-02iAE91,95,CE90,95,EE90..(MX,SE)..(CBR,DSL,EFI)198905-199108

MAROON,TRIM3#

sub45180-12040

main45180-12040-03iAE91,95,CE90,95,EE90..(MX,SE)..(CBR,DSL,EFI)198905-199108

SHADOW GRAY,TRIM1#

sub45180-12040

main45180-12040-03iCE96,EE98..(3FC,4FC,5F)..XL198908-199108

sub45180-12040

main45180-12040-04iCE96,EE98..(3FC,4FC,5F)..XL198908-199108

sub45180-12040

main45180-12040-04iAE91,95,CE90,95,EE90..(MX,SE)..(CBR,DSL,EFI)198905-199108

DARK BLUE,TRIM8#

sub45180-12040

main45180-12050-02iAE91,95,CE90,EE90..MX198705-198905

MAROON,TRIM3#

sub45180-12050

main45180-12050-02iAE91..3FC..MX198905-198909

sub45180-12050

main45180-12050-03iAE91..3FC..MX198905-198909

sub45180-12050

main45180-12050-03iAE91,95,CE9#,EE9#..AV1,DX,LX,MX,STD,XL198705-198909

SHADOW GRAY,TRIM1#

sub45180-12050

main45180-12050-04iAE91,95,CE90,EE90..DX,LX198905-198909

DARK BLUE,TRIM8#

sub45180-12050

main45180-12050-04iAE91..3FC..MX198905-198909

sub45180-12050

main45180-12050-05iAE95,CE96,EE96,98..AV1,DX,XL198705-198908

DARK BEIGE,TRIM4#

sub45180-12050

main45180-12051-02iAE91..3FC..MX198909-199108

sub45180-12051

main45180-12051-03iAE91..3FC..MX198909-199108

sub45180-12051

main45180-12051-03iAE91..3FC..MX198909-199108

SHADOW GRAY,TRIM1#

sub45180-12051

main45180-12051-04iAE91,95,CE9#,EE9#..AV1,CTD,DX,LX,XL198909-199108

DARK BLUE,TRIM8#

sub45180-12051

main45180-12051-04iAE91,95,CE9#,EE9#..AV1,CTD,DX,LX,XL198909-199108

sub45180-12051

main45180-12060-02iCE90,EE90..MX,SE198908-198909

MAROON

sub45180-12060

main45180-12060-02iAE91,95,CE90..SE..(CBR,DSL)198705-198905

MAROON,TRIM3#

sub45180-12060

main45180-12060-02iAE91,95,CE90,EE90..MX198805-198905

sub45180-12060

main45180-12060-03iAE91,95,CE90,EE90..MX198805-198905

sub45180-12060

main45180-12060-03iAE91,95,CE90..SE..(CBR,DSL)198705-198905

SHADOW GRAY,TRIM1#

sub45180-12060

main45180-12060-03iEE98..(3FC,5F)..XL198908-198909

sub45180-12060

main45180-12060-03iEE98..(3FC,5F)..XL198808-198908

sub45180-12060

main45180-12060-05iAE91,95,CE90..SE..(CBR,DSL)198705-198905

DARK BEIGE,TRIM4#

sub45180-12060

main45180-12060-05iEE98..(3FC,5F)..XL198808-198908

sub45180-12060

main45180-12060-05iAE91,95,CE90,EE90..MX198805-198905

sub45180-12060

main45180-12070-01iAE95..AV2198802-199009

BLACK,TRIM1#

sub45180-12070

main45180-12070-02iAE91..SE..EFI198805-199106

MAROON,TRIM3#

sub45180-12070

main45180-12070-02iAE91..SE198909-199005

sub45180-12070

main45180-12070-02iAE91,95,CE90,95..MX199001-199106

sub45180-12070

main45180-12070-02iAE91..SE198801-198904

sub45180-12070

main45180-12070-02iAE91..SE..EFI199005-199101

sub45180-12070

main45180-12070-03iAE91..5D;AE91..SE..EFIS198705-199106

SHADOW GRAY,TRIM1#

sub45180-12070

main45180-12070-03iAE91..SE..EFI199005-199101

sub45180-12070

main45180-12070-03iAE91,95,CE90,95..MX199001-199106

sub45180-12070

main45180-12070-04iAE91..SE..EFI199005-199101

sub45180-12070

main45180-12070-04iAE91..SE..EFIS;AE91,95..AV2,G,L,RVS,XS198905-199106

DARK BLUE,TRIM8#

sub45180-12070

main45180-12070-04iAE91,95,CE90,95..MX199101-199106

sub45180-12070

main45180-12070-05iAE95..RVS198705-198908

DARK BEIGE,TRIM4#

sub45180-12070

main45180-12080-01iAE95..AV2198802-198907

sub45180-12080

main45180-12080-01iAE92198705-198905

BLACK,TRIM1#

sub45180-12080

main45180-12080-03iAE95..AV2198802-198908

sub45180-12080

main45180-12080-12iAE91..SE..EFI198901-198904

sub45180-12080

main45180-12080-12iAE91..SE..EFI198811-198812

sub45180-12080

main45180-12080-C0iAE95..AV2198907-198908

sub45180-12080

main45180-12100-01iAE92198905-199106

BLACK,TRIM1#

sub45180-12100

main45180-12100-01iAE95..AV2198908-199009

sub45180-12100

main45180-12100-03iAE95..AV2198908-199009

sub45180-12100

main45180-12100-04iAE95..AV2198908-199009

sub45180-12100

45201PNUT, STEERING WHEEL SET

main90179-12086iAE9#,CE90,96,EE9#198705-199108

9015950210

main90159-50210

9351015012

main93510-15012

9354044016

main93540-44016

10 parts on this diagram · 4 diagrams in section
