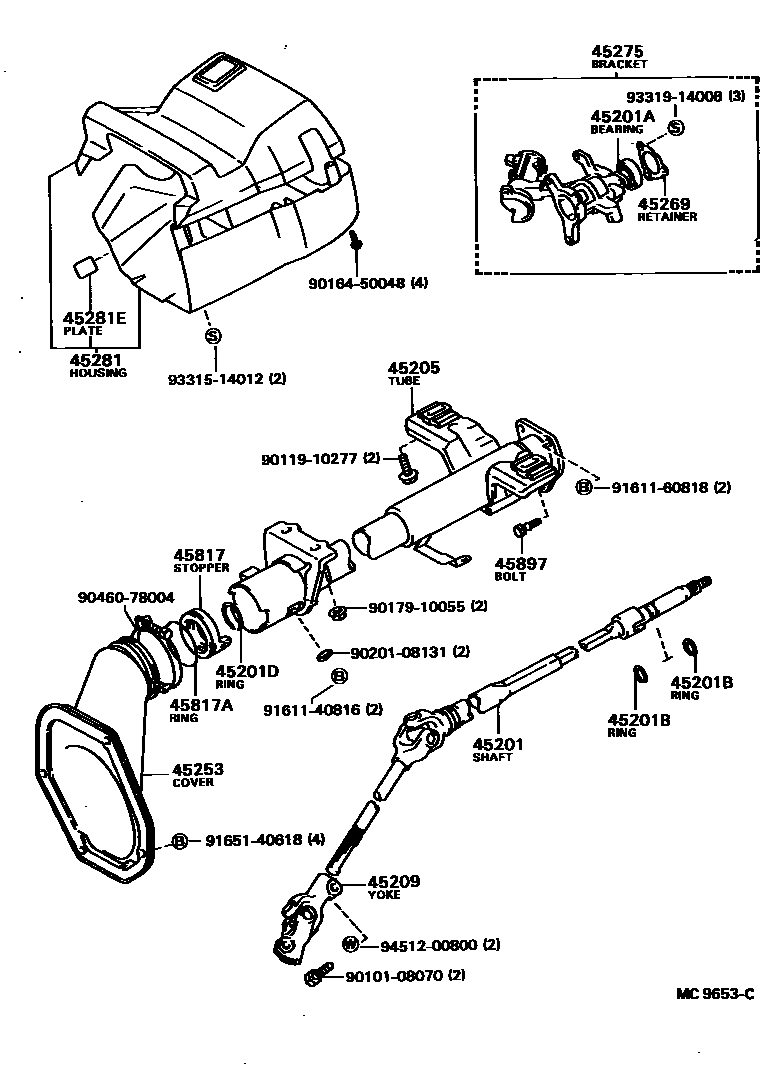

Toyota SPRINTER — STEERING COLUMN & SHAFT
45201SHAFT SUB-ASSY, STEERING MAIN
W/POWER STEERING
45201ABEARING(FOR STEERING MAIN SHAFT)
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
45201DRING(FOR STEERING MAIN SHAFT)
45205TUBE SUB-ASSY, STEERING COLUMN
W/TILT STEERING
45209YOKE SUB-ASSY, STEERING SLIDING
W/POWER STEERING
45253COVER, STEERING COLUMN HOLE
45269RETAINER, MAIN SHAFT BEARING
45275BRACKET, STEERING COLUMN, UPPER
45281HOUSING, STEERING COLUMN
BLACK,BLACK,TRIM1#
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
BLACK,W/TILT STEERING,BLACK,TRIM4#
MAROON,W/TILT STEERING,RED/MAROON,TRIM3#
GRAY,W/TILT STEERING,GRAY,TRIM4#; W/TILT STEERING,GRAY,GRAY,TRIM4#
BLUE,W/TILT STEERING,BLUE,TRIM8#; W/TILT STEERING,BLUE,BLUE,TRIM8#
BROWN,W/TILT STEERING,BROWN,TRIM4#; W/TILT STEERING,BROWN,BROWN,TRIM4#
BLUE,W/TILT STEERING,BLUE,TRIM8#; W/TILT STEERING,BLUE,BLUE,TRIM8#
45281EPLATE, SAFETY CAUTION
45817STOPPER, STEERING SHAFT THRUST
45817ARING, O(FOR STEERING SHAFT THRUST STOPPER)
45897BOLT, STEERING LOCK SET
9010108070
main90101-08070
9011910277
main90119-10277
9016450048
main90164-50048
9017910055
main90179-10055
9020108131
main90201-08131
9046078004
main90460-78004
9161140816
main91611-40816
9161160818
main91611-60818
9165140618
main91651-40618
9331514012
main93315-14012
9331914008
main93319-14008
9451200800
main94512-00800
26 parts on this diagram · 2 diagrams in section
STEERING COLUMN & SHAFT for Toyota SPRINTER
This section contains 43 genuine Toyota parts for the STEERING COLUMN & SHAFT system of the Toyota SPRINTER. Key components include: SUPPORT SUB-ASSY, TILT STEERING, BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE, SPRING, TORSION(FOR TILT STEERING RETURN), SHAFT SUB-ASSY, STEERING MAIN, BEARING(FOR STEERING MAIN SHAFT).
