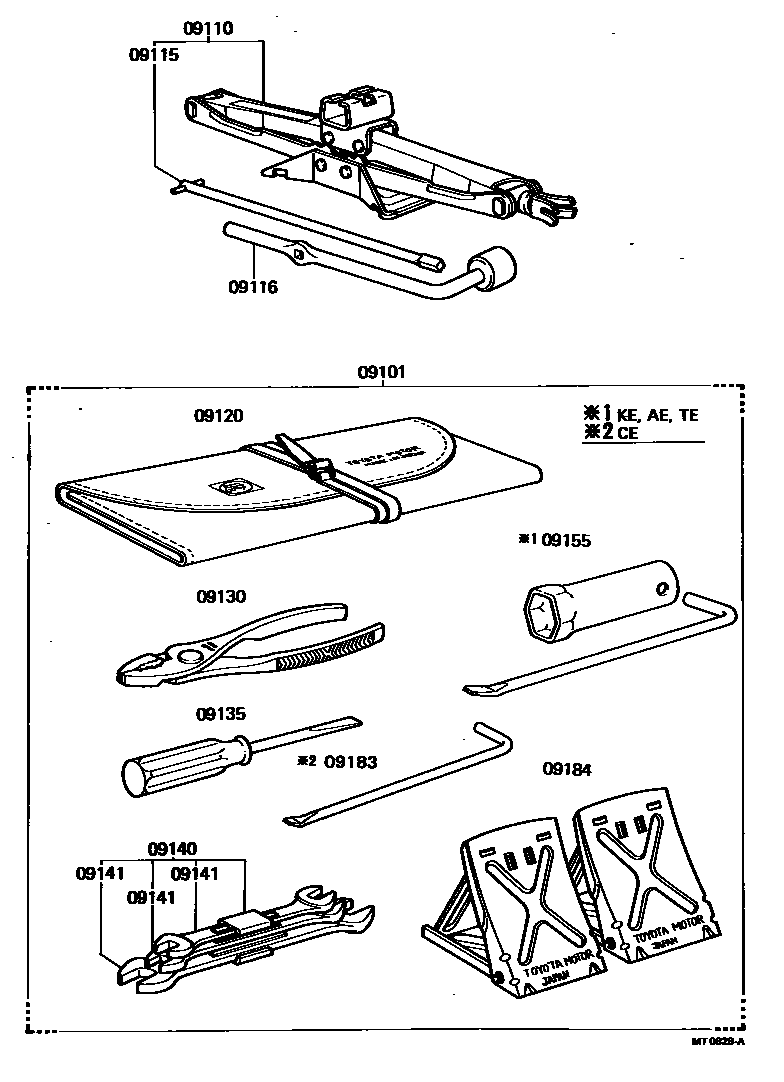

Toyota SPRINTER — STANDARD TOOL

09101TOOL SET, STANDARD W/O JACK

main09102-12010iAE70,KE70197903-198205

main09102-12020iTE7#197903-198205

main09102-12050iCE70198202-198205

main09102-12070iCE70198205-198304

main09102-12072iTE71198205-198304

main09102-12074iAE70,KE70198205-198304

09110JACK ASSY

main09118-10010iAE70,CE70,KE70,TE7#197903-198304

sub09111-22040

09115ROD SUB-ASSY, JACK HANDLE

main09115-16010iAE70,CE70,KE70,TE7#197903-198205

main09115-16020iAE70,CE70,KE70,TE71198205-198304

09116LEVER, JACK HANDLE

main09116-16010iAE70,CE70,KE70,TE7#197903-198304

09120BAG, TOOL

main09120-12011iAE70,CE70,KE70,TE7#197903-198304

09130PLIERS

main09130-00010iAE70,CE70,KE70,TE7#197903-198205

sub09130-00012

main99913-11500iAE70,CE70,KE70,TE71198205-198304

09135DRIVER, SCREW

main99915-10700iAE70,CE70,KE70,TE7#197903-198304

09140SPANNER SET

main09140-12011iAE70,CE70,KE70,TE7#197903-198304

09141SPANNER

main99914-10810iAE70,CE70,KE70,TE7#197903-198304

main99914-11012iAE70,CE70,KE70,TE7#197903-198304

main99914-11417iAE70,CE70,KE70,TE7#197903-198304

09155WRENCH, SPARK PLUG

main09155-24010iAE70,KE70197903-198205

main09155-26020iTE7#197903-198304

main09155-44020iAE70,KE70198205-198304

09183WRENCH, WHEEL CAP

main09183-00010iCE70198202-198304

09184STOPPER, WHEEL

main09184-00010×2iAE70,CE70,KE70,TE7#197903-198304

12 parts on this diagram · 1 diagram in section
