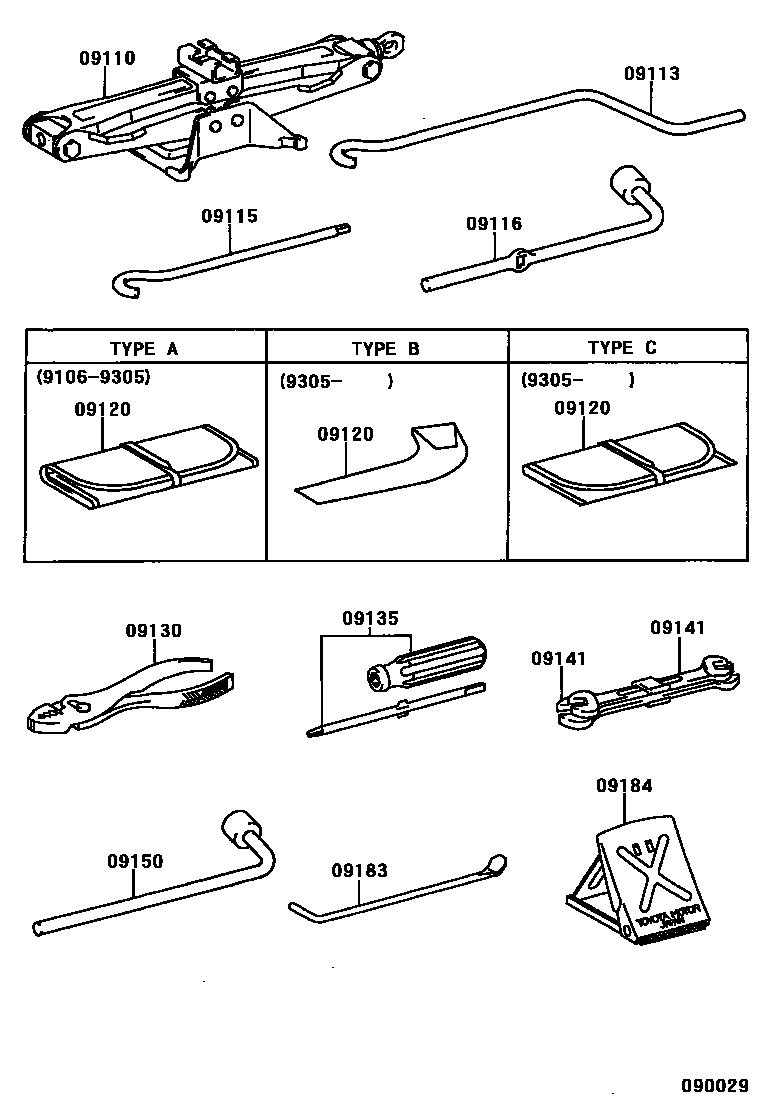

Toyota SPRINTER — STANDARD TOOL

09110JACK ASSY

main09111-03011iAE10#,CE100,104,EE101199209-199505

main09111-12090iCE106,108,109,EE106,107,108199109-199301

main09111-12100iAE10#,CE100,EE101199106-199107

sub09111-20060

main09111-12130iAE10#,CE100,104,EE101199107-199402

main09111-12140iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199301-200009

main09111-21050iAE109,CE10#,EE10#200009

09113HANDLE, JACK

main09113-12010iAE109,CE102,105,106,107,108,109,EE102,103,104199401

main09113-12020iAE10#,CE100,104,EE101199106-199505

09115ROD SUB-ASSY, JACK HANDLE

main09115-13010iCE106,108,109,EE106,107,108199109-199401

09116LEVER, JACK HANDLE

main09116-16010iCE106,108,109,EE106,107,108199109-199401

09120BAG, TOOL

main09120-12011iAE10#,CE10#,EE10#199106-199305

main09120-12040iAE10#,CE100,104,EE101199305-199401

main09120-16030iAE10#,CE10#,EE10#199305

09130PLIERS

main99913-11500iAE10#,CE10#,EE10#199106

09135DRIVER, SCREW

main99915-10700iAE10#,CE10#,EE10#199106

09141SPANNER

main99914-10810iAE10#,CE10#,EE10#199106

main99914-11214iAE10#,CE10#,EE10#199106

09150WRENCH, HUB NUT BOX

main09150-26010iAE10#,CE100,104,EE101199106-199305

main09150-40010iAE10#,CE100,104,EE101199305-199401

09183WRENCH, WHEEL CAP

main09183-00010iAE10#,CE10#,EE10#199106-199305

09184STOPPER, WHEEL

main09184-00010iAE10#,CE10#,EE10#199106

11 parts on this diagram · 1 diagram in section
