Toyota SPRINTER — SPEEDOMETER DRIVEN GEAR (ATM)

0001 1A131L,A132L 0002 1A240L,A240E,A245E 0003 1A241H 0004 1A241L

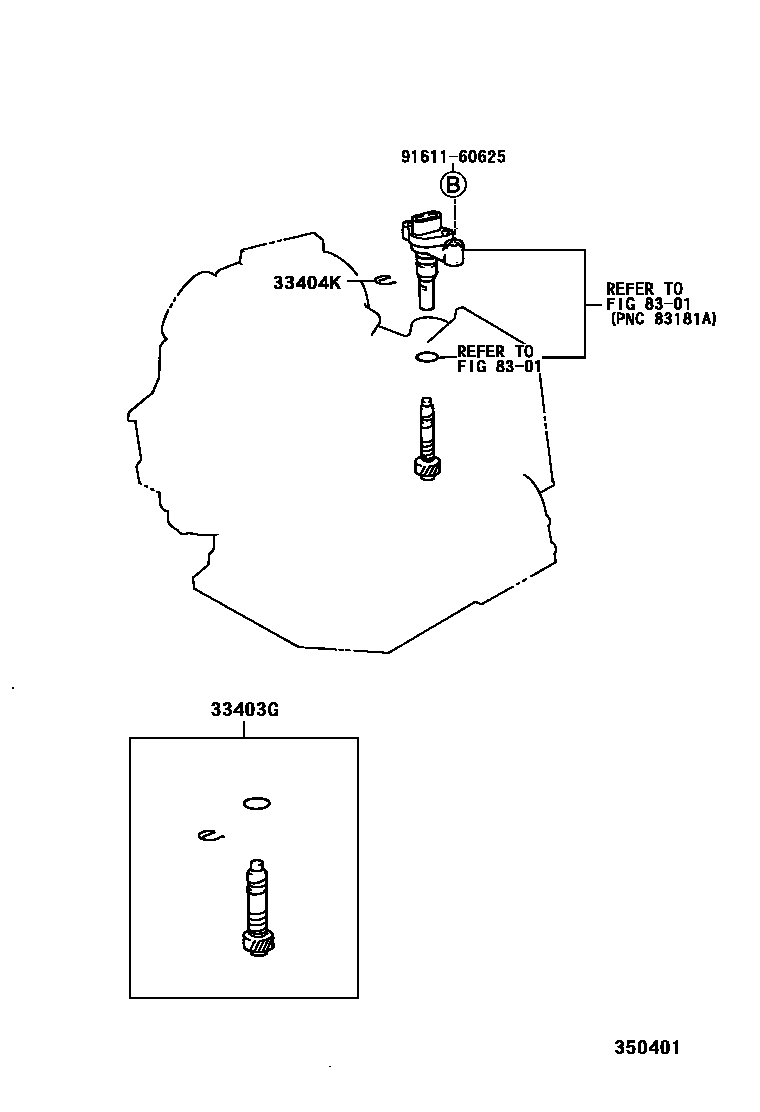

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-19455iAE100..4FC..XE199106-199505

main33403-19465iAE100,101..4FC199106-199505

main33403-19515iAE100,EE10#..3FC199106

main33403-19525iCE100,108..4FC..(DX,L,LX,XE)199106-199705

main33403-19535iCE102,106,107,108..4FC199106-199704

main33403-19545iAE104..4FC199109-199505

main33403-19555iAE109..4FC199605

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iAE10#,CE100,106,108,EE10#..ATM199106-199305

8301

9161160625

main91611-60625

4 parts on this diagram · 4 diagrams in section
