Toyota SPRINTER — SPEAKER

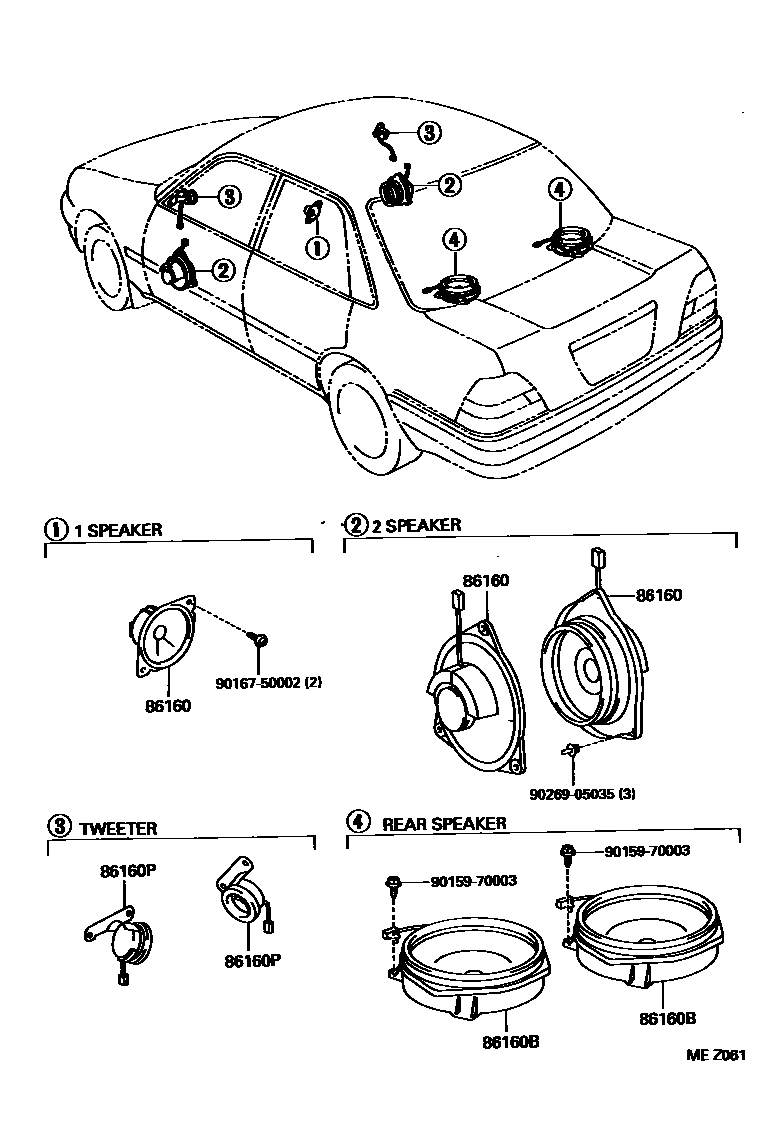

86160SPEAKER ASSY, FRONT NO.1

main86160-12630iAE110,114,CE11#,EE111..LX,XEVIN199505-199704

main86160-12820×2iAE11#,CE11#,EE111199505-199704

main86160-1A040iAE110,114,CE11#,EE111..LX199704-200008

86160BSPEAKER ASSY, REAR

main86160-12830×2iAE11#,CE11#,EE111..GT,SEVIN,XEVIN199704-200008

86160PSPEAKER ASSY, FRONT NO.2

main86160-12840iAE11#,CE11#..SCRU,SEVIN199505-199704

main86160-12850iAE11#,CE11#..SCRU,SEVIN199505-199704

9015970003

main90159-70003

9016750002

main90167-50002

9026905035

main90269-05035

6 parts on this diagram · 1 diagram in section
