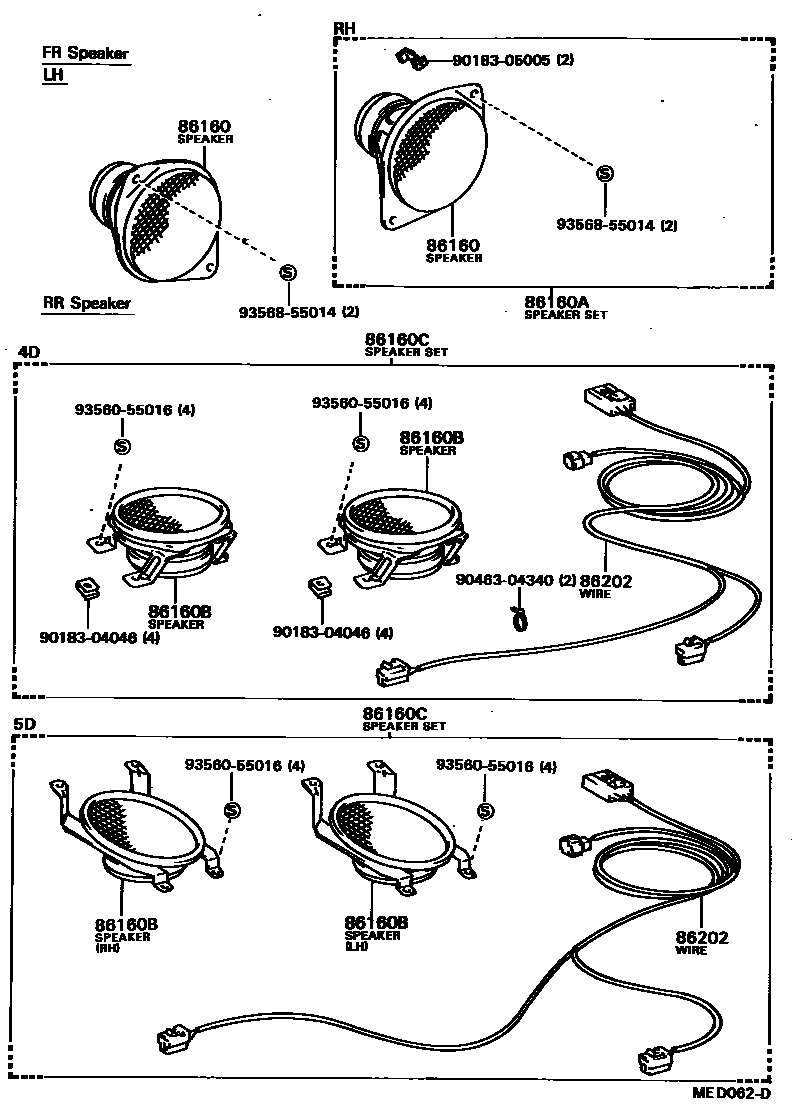

Toyota SPRINTER — SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-12170×2iAE81..SE,SX,XL,ZX;AE80,82,CE80..DX,SE,SR,SX,XL,ZX198305-198401

AM/FM MULTIPLEX OR TAPE PLAYER

86160ASPEAKER SET, FRONT

main86160-19665iAE81..SE,SX,XL,ZX;AE80,82,CE80..DX,SE,SR,SX,XL,ZX198305-198401

RH

86160BSPEAKER ASSY, REAR

main86160-12100iAE81,82,CE80..5D198305-198704

RH

main86160-12130×2iAE81,82,CE80..GT,SE,SR198305-198704

main86160-12180iAE81,82,CE80..5D198305-198704

LH

86160CSPEAKER SET, REAR

main86160-19685iAE81,82,CE80..GT,SE,SR198305-198704

main86160-19695iAE81,82,CE80..5D198305-198704

86202WIRE, SPEAKER, NO.1

main86203-12140iAE81,82,CE80..GT,SE,SR198305-198704

main86203-12150iAE81,82,CE80..5D198305-198704

9018304046

main90183-04046

9018305005

main90183-05005

9046304340

main90463-04340

9356055016

main93560-55016

9356855014

main93568-55014

10 parts on this diagram · 1 diagram in section
