Toyota SPRINTER — SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-13010i198808-199108

81730BBULB (FOR SIDE TURN SIGNAL LAMP)

main99132-12050×2i198808-199108

81731LENS, SIDE TURN SIGNAL LAMP, RH

main81731-13010i198808-199108

81732GASKET, SIDE TURN SIGNAL LAMP LENS, RH

main81732-13010i198808-199108

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81740-13010i198808-199108

81741LENS, SIDE TURN SIGNAL LAMP, LH

main81741-13010i198808-199108

81742GASKET, SIDE TURN SIGNAL LAMP LENS, LH

main81732-13010i198808-199108

8151987010BRACKET, FRONT TURN SIGNAL LAMP, RH

main81519-87010

8 parts on this diagram · 1 diagram in section

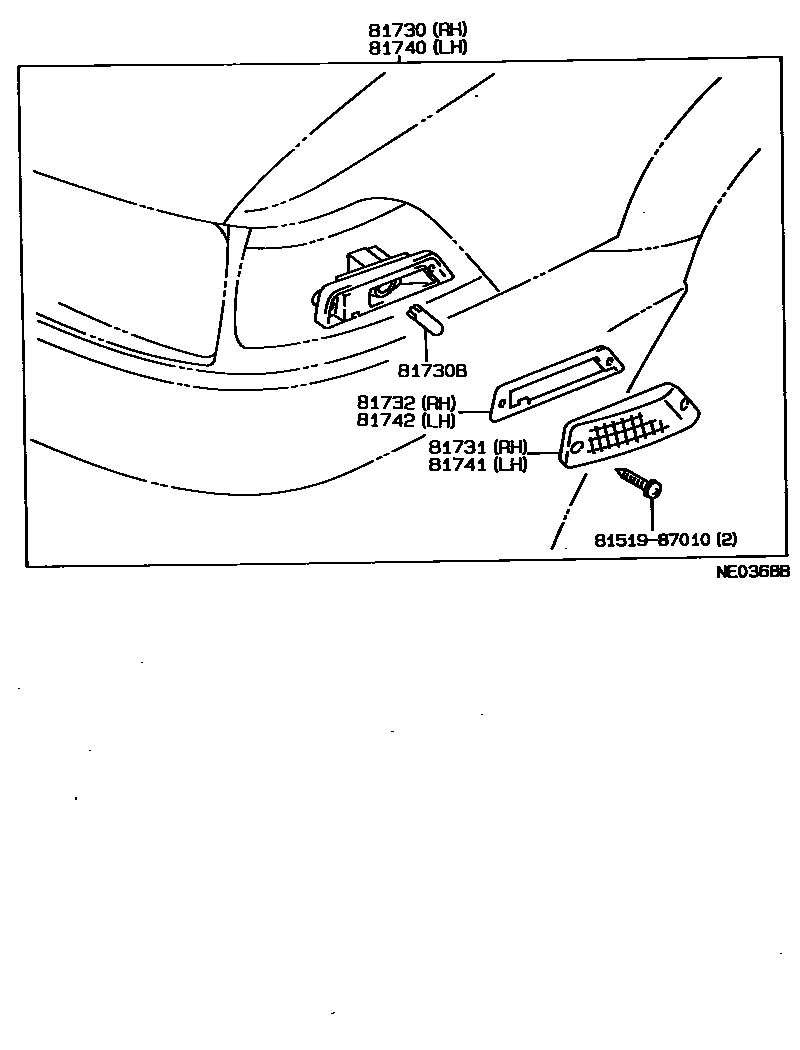

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP for Toyota SPRINTER

This section contains 8 genuine Toyota parts for the SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP system of the Toyota SPRINTER. Key components include: LAMP ASSY, SIDE TURN SIGNAL, RH, BULB (FOR SIDE TURN SIGNAL LAMP), LENS, SIDE TURN SIGNAL LAMP, RH, GASKET, SIDE TURN SIGNAL LAMP LENS, RH, LAMP ASSY, SIDE TURN SIGNAL, LH.
