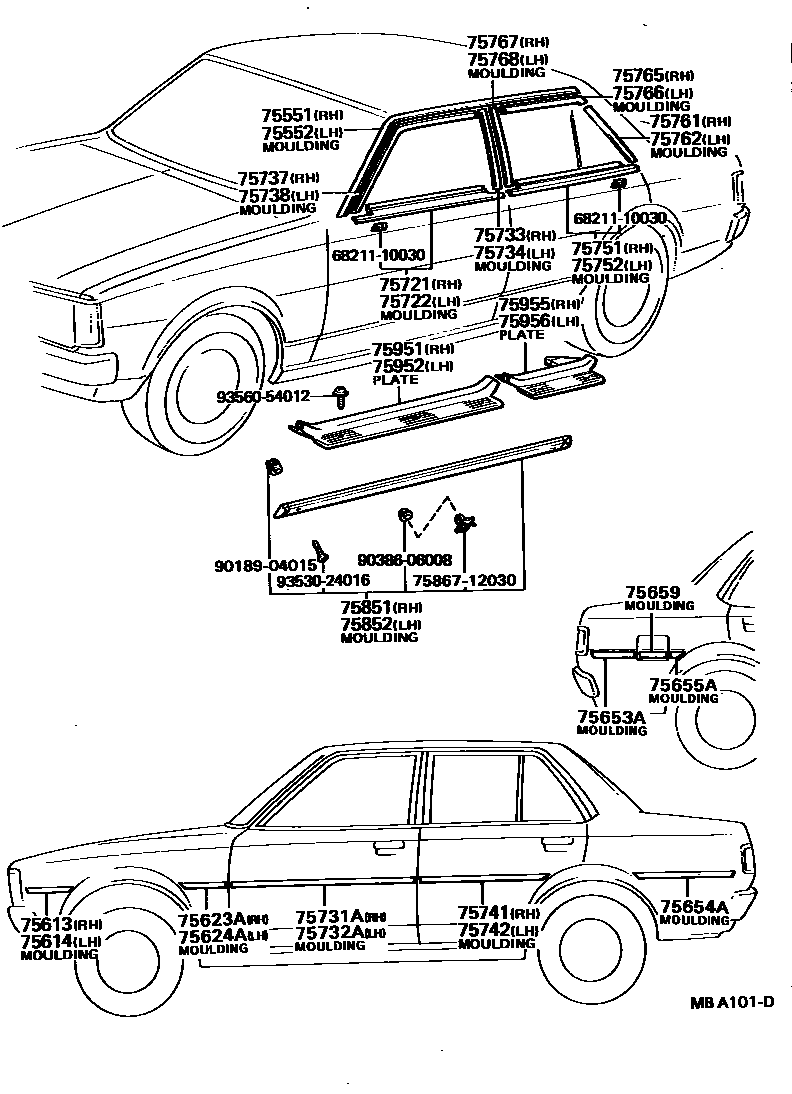

Toyota SPRINTER — SIDE MOULDING
75551MOULDING, ROOF DRIP SIDE FINISH, RH
75552MOULDING, ROOF DRIP SIDE FINISH, LH
75613MOULDING, FRONT FENDER, OUTSIDE RH
BLACK,BLACK
APEX,GRAY,GRAY
LIMITED EDITION,DARK BROWN,BROWN
ORANGE
MAROON
75614MOULDING, FRONT FENDER, OUTSIDE LH
BLACK,BLACK
APEX,GRAY,GRAY
LIMITED EDITION,DARK BROWN,BROWN
ORANGE
MAROON
75623AMOULDING, FRONT FENDER, OUTSIDE REAR RH
BLACK,BLACK
APEX,GRAY,GRAY
LIMITED EDITION,DARK BROWN,BROWN
LISSE
ORANGE
MAROON
75624AMOULDING, FRONT FENDER, OUTSIDE REAR LH
BLACK,BLACK
APEX,GRAY,GRAY
LIMITED EDITION,DARK BROWN,BROWN
LISSE
ORANGE
MAROON
75653AMOULDING, QUARTER, OUTSIDE REAR RH
BLACK,BLACK
APEX,GRAY,GRAY
LIMITED EDITION,DARK BROWN,BROWN
ORANGE
MAROON
75654AMOULDING, QUARTER, OUTSIDE REAR LH
BLACK,BLACK
AREX,GRAY,GRAY
LIMITED EDITION,DARK BROWN,BROWN
ORANGE
MAROON
75655AMOULDING, QUARTER, OUTSIDE CENTER RH
75659MOULDING, FUEL FILLER LID
75721MOULDING, FRONT DOOR BELT, RH
PLANT.NO.N11,M12,B11
PLANT.NO.M11,M21,B11
PLANT.NO.A31,A32
PLANT.NO.A31,A32
75722MOULDING, FRONT DOOR BELT, LH
PLANT.NO.M11,M21,B11
PLANT.NO.M11,M21,B11
PLANT.NO.A31,A32
PLANT.NO.A31,A32
75731AMOULDING, FRONT DOOR, OUTSIDE RH
BLACK,BLACK
APEX,GRAY,GRAY
LIMITED EDITION,DARK BROWN,BROWN
ORANGE
MAROON
75732AMOULDING, FRONT DOOR, OUTSIDE LH
BLACK,BLACK
APEX,GRAY,GRAY
LIMITED EDITION,DARK BROWN,BROWN
ORANGE
MAROON
75733MOULDING, FRONT DOOR WINDOW FRAME, REAR RH
75734MOULDING, FRONT DOOR WINDOW FRAME, REAR LH
75737MOULDING, FRONT DOOR WINDOW FRAME, FRONT RH
75738MOULDING, FRONT DOOR WINDOW FRAME, FRONT LH
75741MOULDING, REAR DOOR, OUTSIDE RH
75742MOULDING, REAR DOOR, OUTSIDE LH
75751MOULDING, REAR DOOR BELT, RH
75752MOULDING, REAR DOOR BELT, LH
75761MOULDING, REAR DOOR WINDOW FRAME, REAR RH
75762MOULDING, REAR DOOR WINDOW FRAME, REAR LH
75765MOULDING, REAR DOOR WINDOW FRAME, UPPER RH
75766MOULDING, REAR DOOR WINDOW FRAME, UPPER LH
75767MOULDING, REAR DOOR WINDOW FRAME, FRONT RH
75768MOULDING, REAR DOOR WINDOW FRAME, FRONT LH
75851MOULDING, ROCKER PANEL, RH
75852MOULDING, ROCKER PANEL, LH
75951PLATE, FRONT DOOR SCUFF, OUTSIDE RH
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
LIGHT BROWN,BROWN,TRIM4#
DARK BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
75952PLATE, FRONT DOOR SCUFF, OUTSIDE LH
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
LIGHT BROWN,BROWN,TRIM4#
DARK BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
75955PLATE, REAR DOOR SCUFF, OUTSIDE RH
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
LIGHT BROWN,BROWN,TRIM4#
DARK BROWN,BROWN,TRIM4#
75956PLATE, REAR DOOR SCUFF, OUTSIDE LH
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
LIGHT BROWN,BROWN,TRIM4#
DARK BROWN,BROWN,TRIM4#
6821110030CHANNEL, DOOR WINDOW SET(FOR CANVAS DOOR)
main68211-10030
7586712030MOULDING, FRONT PANEL
main75867-12030
9018904015
main90189-04015
9038606008
main90386-06008
9353024016
main93530-24016
9356054012
main93560-54012
40 parts on this diagram · 4 diagrams in section
