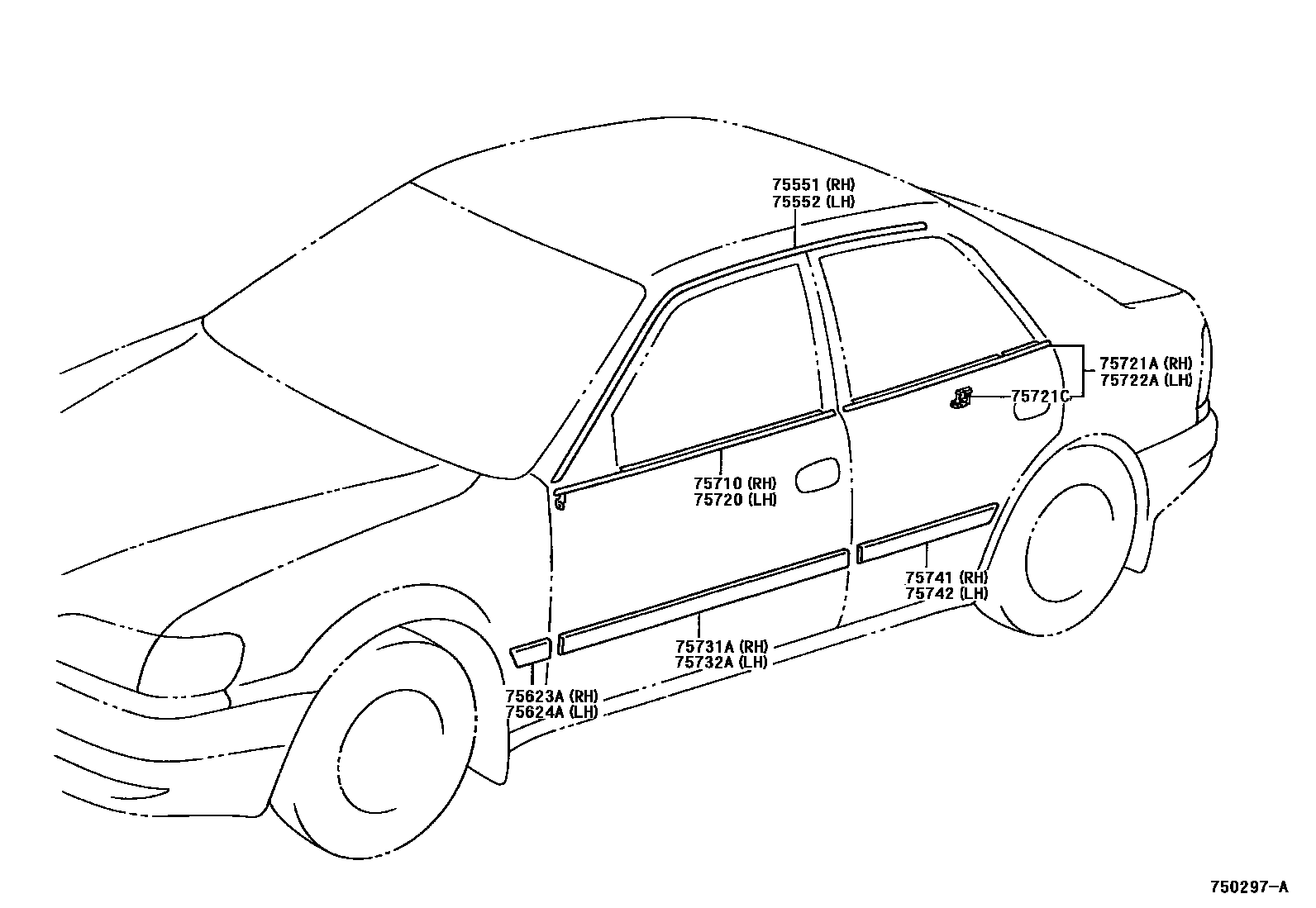

Toyota SPRINTER — SIDE MOULDING

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-12560iAE11#,CE11#,EE111..SCRU,SEVIN,XEVIN199605-199704

main75551-12570iAE110,114,CE11#,EE111..LX199605-199704

main75551-12610iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

main75551-12700iAE11#,CE11#,EE111..GT,SEVIN,XEVIN199704-200008

main75551-12710iAE110,114,CE11#,EE111..LX199704-200008

main75551-12720iAE11#,CE11#,EE111..GT,SEVIN,XEVIN199704-200008

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-12560iAE11#,CE11#,EE111..SCRU,SEVIN,XEVIN199605-199704

main75552-12570iAE11#,CE11#,EE111..LX,SCRU199505-199605

main75552-12610iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

main75552-12700iAE11#,CE11#,EE111..GT,SEVIN,XEVIN199704-200008

main75552-12710iAE110,114,CE11#,EE111..LX199704-200008

main75552-12720iAE11#,CE11#,EE111..GT,SEVIN,XEVIN199704-200008

75623AMOULDING, FRONT FENDER, OUTSIDE REAR RH

main75623-12700iAE11#,CE11#,EE111199505-199704

main75623-12710-A0iAE11#,CE11#,EE111199704-200008

SUPER WHITE 2,040

sub75623-12790

main75623-12710-B1iAE11#,CE11#,EE111199704-200008

WARM GRAY PEARL ME.,1A5

sub75623-12790

main75623-12710-B4iAE11#,CE11#,EE111199704-200008

SILVER ME,199

sub75623-12790

main75623-12710-B5iAE11#,CE11#,EE111199704-200008

DK.GRAY ME.,1B4

sub75623-12790

main75623-12710-B6iAE11#,CE11#,EE111199804-200008

CRYSTAL SILVER PEARL,1C1

sub75623-12790

main75623-12710-D0iAE11#,CE11#,EE111199704-199804

RED M.M.,3K4

sub75623-12790

main75623-12710-G2iAE11#,CE11#,EE111199704-200008

DK.GREEN M.M.,6P2

sub75623-12790

main75623-12710-J0iAE11#,CE11#,EE111199704-200008

DK. BLUE MICA ME.,8L2

sub75623-12790

main75623-12720iAE110,114,CE11#,EE111..LX199704-200008

main75623-12730-B0iAE11#,CE11#,EE111..SCRU,SEVIN,XEVIN199605-199704

GRAY MM,199

sub75623-12790

main75623-12730-C1iAE11#,CE11#,EE111..SCRU,SEVIN,XEVIN199605-199704

SILVER M.,040

sub75623-12790

main75623-12730-E0iAE11#,CE11#,EE111..SCRU,SEVIN,XEVIN199605-199704

LT. GRAYISH BEIGE ME,1A5

sub75623-12790

main75623-12740-A1iAE110,114,CE11#..SEVIN199904-200004

sub75623-12800

75624AMOULDING, FRONT FENDER, OUTSIDE REAR LH

main75624-12700iAE11#,CE11#,EE111199505-199704

main75624-12710-A0iAE11#,CE11#,EE111199704-200008

SUPER WHITE 2,040

sub75624-12790

main75624-12710-B1iAE11#,CE11#,EE111199704-200008

WARM GRAY PEARL ME.,1A5

sub75624-12790

main75624-12710-B4iAE11#,CE11#,EE111199704-200008

SILVER ME,199

sub75624-12790

main75624-12710-B5iAE11#,CE11#,EE111199704-200008

DK.GRAY ME.,1B4

sub75624-12790

main75624-12710-B6iAE11#,CE11#,EE111199804-200008

CRYSTAL SILVER PEARL,1C1

sub75624-12790

main75624-12710-D0iAE11#,CE11#,EE111199704-199804

RED M.M.,3K4

sub75624-12790

main75624-12710-G2iAE11#,CE11#,EE111199704-200008

DK.GREEN M.M.,6P2

sub75624-12790

main75624-12710-J0iAE11#,CE11#,EE111199704-200008

DK. BLUE MICA ME.,8L2

sub75624-12790

main75624-12720iAE110,114,CE11#,EE111..LX199704-200008

main75624-12730-B0iAE11#,CE11#,EE111..SCRU,SEVIN,XEVIN199605-199704

sub75624-12790

main75624-12730-C1iAE11#,CE11#,EE111..SCRU,SEVIN,XEVIN199605-199704

sub75624-12790

main75624-12730-E0iAE11#,CE11#,EE111..SCRU,SEVIN,XEVIN199605-199704

sub75624-12790

main75624-12740-A1iAE110,114,CE11#..SEVIN200004-200008

sub75624-12800

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-12630iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

sub75710-12680

main75710-12640iAE11#,CE11#,EE111..SCRU,SEVIN,XEVIN199605-199704

main75710-12650iAE11#,CE11#,EE111..LX,SCRU199505-199605

main75710-12700iAE11#,CE11#,EE111..GT,SEVIN,XEVIN199704-200008

main75710-12710iAE110,114,CE11#,EE111..LX199704-200008

main75710-12720iAE11#,CE11#,EE111..GT,SEVIN,XEVIN199704-200008

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-12630iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

sub75720-12680

main75720-12640iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199605

main75720-12650iAE110,114,CE11#,EE111..LX199605-199704

main75720-12700iAE11#,CE11#,EE111..GT,SEVIN,XEVIN199704-200008

main75720-12710iAE110,114,CE11#,EE111..LX199704-200008

main75720-12720iAE11#,CE11#,EE111..GT,SEVIN,XEVIN199704-200008

75721AMOULDING, REAR DOOR BELT, RH

main75721-12370iAE11#,CE11#,EE111..SCRU,SEVIN,XEVIN199605-199704

main75721-12380iAE11#,CE11#,EE111..LX,SCRU199505-199605

main75721-12420iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199605

main75721-12470iAE11#,CE11#,EE111..GT,SEVIN,XEVIN199704-200008

main75721-12480iAE110,114,CE11#,EE111..LX199704-200008

main75721-12490iAE11#,CE11#,EE111..GT,SEVIN,XEVIN199704-200008

75721CCLIP, DOOR GLASS WEATHERSTRIP

main68211-12240×12iAE11#,CE11#,EE111199704-200008

75722AMOULDING, REAR DOOR BELT, LH

main75722-12370iAE11#,CE11#,EE111..SCRU,SEVIN,XEVIN199605-199704

main75722-12380iAE11#,CE11#,EE111..LX,SCRU199505-199605

main75722-12420iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199605

main75722-12470iAE11#,CE11#,EE111..GT,SEVIN,XEVIN199704-200008

main75722-12480iAE110,114,CE11#,EE111..LX199704-200008

main75722-12490iAE11#,CE11#,EE111..GT,SEVIN,XEVIN199704-200008

75731AMOULDING, FRONT DOOR, OUTSIDE RH

main75731-1A410iAE11#,CE11#,EE111199505-199704

main75731-1A420-A0iAE11#,CE11#,EE111199704-200008

SUPER WHITE 2,040

sub75731-1A500

main75731-1A420-B1iAE11#,CE11#,EE111199704-200008

WARM GRAY PEARL ME.,1A5

sub75731-1A500

main75731-1A420-B3iAE11#,CE11#,EE111199704-200008

SILVER ME,199

sub75731-1A500

main75731-1A420-B4iAE11#,CE11#,EE111199704-200008

DK.GRAY ME.,1B4

sub75731-1A500

main75731-1A420-B6iAE11#,CE11#,EE111199804-200008

CRYSTAL SILVER PEARL,1C1

sub75731-1A500

main75731-1A420-D0iAE11#,CE11#,EE111199704-199804

RED M.M.,3K4

sub75731-1A500

main75731-1A420-G2iAE11#,CE11#,EE111199704-200008

DK.GREEN M.M.,6P2

sub75731-1A500

main75731-1A420-J0iAE11#,CE11#,EE111199704-200008

DK. BLUE MICA ME.,8L2

sub75731-1A500

main75731-1A430iAE110,114,CE11#,EE111..LX199704-200008

main75731-1A440-B0iAE11#,CE11#,EE111..SCRU,SEVIN,XEVIN199605-199704

GRAY MM,199

sub75731-1A500

main75731-1A440-C1iAE11#,CE11#,EE111..SCRU,SEVIN,XEVIN199605-199704

SILVER M.,040

sub75731-1A500

main75731-1A440-E0iAE11#,CE11#,EE111..SCRU,SEVIN,XEVIN199605-199704

LT. GRAYISH BEIGE ME,1A5

sub75731-1A500

main75731-1A450-A1iAE110,114,CE11#..SEVIN200004-200008

sub75731-1A510

75732AMOULDING, FRONT DOOR, OUTSIDE LH

main75732-1A250iAE11#,CE11#,EE111199505-199704

main75732-1A260-A0iAE11#,CE11#,EE111199704-200008

SUPER WHITE 2,040

sub75732-1A340

main75732-1A260-B1iAE11#,CE11#,EE111199704-200008

WARM GRAY PEARL ME.,1A5

sub75732-1A340

main75732-1A260-B3iAE11#,CE11#,EE111199704-200008

SILVER ME,199

sub75732-1A340

main75732-1A260-B4iAE11#,CE11#,EE111199704-200008

DK.GRAY ME.,1B4

sub75732-1A340

main75732-1A260-B6iAE11#,CE11#,EE111199804-200008

CRYSTAL SILVER PEARL,1C1

sub75732-1A340

main75732-1A260-D0iAE11#,CE11#,EE111199704-199804

RED M.M.,3K4

sub75732-1A340

main75732-1A260-G2iAE11#,CE11#,EE111199704-200008

DK.GREEN M.M.,6P2

sub75732-1A340

main75732-1A260-J0iAE11#,CE11#,EE111199704-200008

DK. BLUE MICA ME.,8L2

sub75732-1A340

main75732-1A270iAE110,114,CE11#,EE111..LX199704-200008

main75732-1A280-B0iAE11#,CE11#,EE111..SCRU,SEVIN,XEVIN199605-199704

GRAY MM,199

sub75732-1A340

main75732-1A280-C1iAE11#,CE11#,EE111..SCRU,SEVIN,XEVIN199605-199704

SILVER M.,040

sub75732-1A340

main75732-1A280-E0iAE11#,CE11#,EE111..SCRU,SEVIN,XEVIN199605-199704

LT. GRAYISH BEIGE ME,1A5

sub75732-1A340

main75732-1A290-A1iAE110,114,CE11#..SEVIN200004-200008

sub75732-1A350

75741MOULDING, REAR DOOR, OUTSIDE RH

main75741-12890iAE11#,CE11#,EE111199505-199704

main75741-1A010-A0iAE11#,CE11#,EE111199704-200008

SUPER WHITE 2,040

sub75741-1A070

main75741-1A010-B1iAE11#,CE11#,EE111199704-200008

WARM GRAY PEARL ME.,1A5

sub75741-1A070

main75741-1A010-B3iAE11#,CE11#,EE111199704-200008

SILVER ME,199

sub75741-1A070

main75741-1A010-B4iAE11#,CE11#,EE111199704-200008

DK.GRAY ME.,1B4

sub75741-1A070

main75741-1A010-B6iAE11#,CE11#,EE111199804-200008

CRYSTAL SILVER PEARL,1C1

sub75741-1A070

main75741-1A010-D0iAE11#,CE11#,EE111199704-199804

RED M.M.,3K4

sub75741-1A070

main75741-1A010-G2iAE11#,CE11#,EE111199704-200008

DK.GREEN M.M.,6P2

sub75741-1A070

main75741-1A010-J0iAE11#,CE11#,EE111199704-200008

DK. BLUE MICA ME.,8L2

sub75741-1A070

main75741-1A020iAE110,114,CE11#,EE111..LX199704-200008

main75741-1A030-B0iAE11#,CE11#,EE111..SCRU,SEVIN,XEVIN199605-199704

GRAY MM,199

sub75741-1A070

main75741-1A030-C1iAE11#,CE11#,EE111..SCRU,SEVIN,XEVIN199605-199704

SILVER M.,040

sub75741-1A070

main75741-1A030-E0iAE11#,CE11#,EE111..SCRU,SEVIN,XEVIN199605-199704

LT. GRAYISH BEIGE ME,1A5

sub75741-1A070

main75741-1A040-A1iAE110,114,CE11#..SEVIN200004-200008

sub75741-1A080

75742MOULDING, REAR DOOR, OUTSIDE LH

main75742-12880iAE11#,CE11#,EE111199505-199704

main75742-12890-A0iAE11#,CE11#,EE111199704-200008

SUPER WHITE 2,040

sub75742-1A060

main75742-12890-B1iAE11#,CE11#,EE111199704-200008

WARM GRAY PEARL ME.,1A5

sub75742-1A060

main75742-12890-B3iAE11#,CE11#,EE111199704-200008

SILVER ME,199

sub75742-1A060

main75742-12890-B4iAE11#,CE11#,EE111199704-200008

DK.GRAY ME.,1B4

sub75742-1A060

main75742-12890-B6iAE11#,CE11#,EE111199804-200008

CRYSTAL SILVER PEARL,1C1

sub75742-1A060

main75742-12890-D0iAE11#,CE11#,EE111199704-199804

RED M.M.,3K4

sub75742-1A060

main75742-12890-G2iAE11#,CE11#,EE111199704-200008

DK.GREEN M.M.,6P2

sub75742-1A060

main75742-12890-J0iAE11#,CE11#,EE111199704-200008

DK. BLUE MICA ME.,8L2

sub75742-1A060

main75742-1A010iAE110,114,CE11#,EE111..LX199704-200008

main75742-1A020-B0iAE11#,CE11#,EE111..SCRU,SEVIN,XEVIN199605-199704

GRAY MM,199

sub75742-1A060

main75742-1A020-C1iAE11#,CE11#,EE111..SCRU,SEVIN,XEVIN199605-199704

SILVER M.,040

sub75742-1A060

main75742-1A020-E0iAE11#,CE11#,EE111..SCRU,SEVIN,XEVIN199605-199704

LT. GRAYISH BEIGE ME,1A5

sub75742-1A060

main75742-1A030-A1iAE110,114,CE11#..SEVIN199904-200004

sub75742-1A070

13 parts on this diagram · 1 diagram in section
