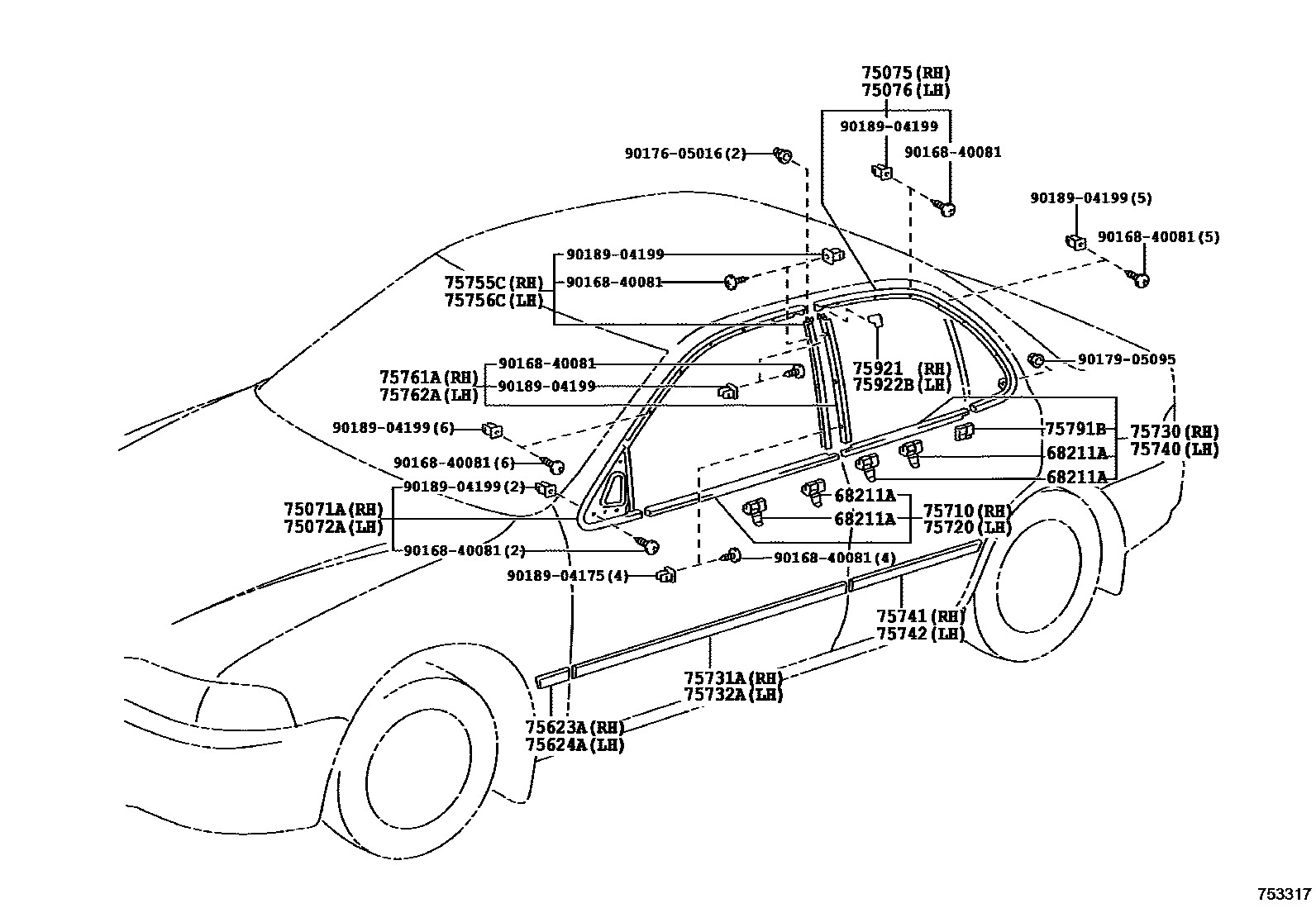

Toyota SPRINTER — SIDE MOULDING

0001 1 0002 1

68211ACLIP, DOOR BELT MOULDING

main68211-12180iAE10#,CE100,104,EE101199106-199505

main68211-12190iCE108,EE108199109-199205

main68211-12190iCE108,EE108199205-199401

main68211-12190iCE106,109,EE103,107..XL199205-200008

main68211-12190iCE108,EE104199401-199705

main68211-13010iCE102,105,106,107,109,EE103,107..L,XL199205-200008

main68211-13010iEE104199401-199704

main68211-13010iCE108199205-199804

main68212-12020iAE10#,CE100,104,EE101199106-199505

75071AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH

main75071-12010iAE100,CE100,EE101..DX199106-199505

main75071-12020iAE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE199106-199505

main75071-12060iAE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE199106-199505

75072AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH

main75072-12010iAE100,CE100,EE101..DX199106-199505

main75072-12020iAE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE199106-199505

main75072-12060iAE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE199106-199505

75075MOULDING SUB-ASSY, REAR DOOR, OUTSIDE RH

main75075-12010iAE100,CE100,EE101..DX199106-199505

main75075-12020iAE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE199106-199505

main75075-12030iAE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE199106-199505

75076MOULDING SUB-ASSY, REAR DOOR, OUTSIDE LH

main75076-12040iAE100,CE100,EE101..DX199106-199505

main75076-12050iAE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE199106-199505

main75076-12060iAE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE199106-199505

75623AMOULDING, FRONT FENDER, OUTSIDE REAR RH

main75623-12640iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108..DX,L,XL199109-200206

main75623-12650-03iCE108,EE104199401-199508

sub75623-12650

main75623-12650-08iCE102199804-200206

SUPER WHITE 2,040

sub75623-12650

main75623-12650-08iCE108,EE104199401-200206

sub75623-12650

main75623-12650-13iCE108,EE104199401-199508

sub75623-12650

main75623-12650-B2iCE108,EE104199508-200206

sub75623-12650

main75623-12650-B2iCE102199804-200206

BLUISH GRAY ME,182

sub75623-12650

main75623-12650-B3iCE108,EE104199508-199605

sub75623-12650

main75623-12650-B3iCE108,EE104199704-199804

sub75623-12650

main75623-12650-B4iEE104199804-200206

SILVER ME,199 ,2EY

sub75623-12650

main75623-12650-B4iEE104199804-200206

sub75623-12650

main75623-12650-B4iCE108,EE104199704-199804

sub75623-12650

main75623-12650-B4iCE108,EE104199605-199704

sub75623-12650

main75623-12650-G1iCE108,EE104199401-199704

sub75623-12650

main75623-12650-G7iCE102199804-200206

DK.GREEN M.M.,6P2

sub75623-12650

main75623-12650-G7iCE108,EE104199704-200206

sub75623-12650

main75623-12660iAE100,CE100,EE101..DX199305-199505

BLACK TYPE

main75623-12660iAE100,104,CE100,104,EE101..DX,LX199106-199305

main75623-12670-02iAE100,104,CE100,104,EE101..LX199110-199305

sub75623-12670

main75623-12670-02iAE10#,CE100,104,EE101..GT,SEG,SEL,XE199106-199305

RED MICA M,3K4

sub75623-12670

main75623-12670-03iAE10#,CE100,104,EE101..GT,SEG,SEL,XE199106-199505

DARK BLUEISH GRAY M,183

sub75623-12670

main75623-12670-03iAE100,104,CE100,104,EE101..LX199110-199305

sub75623-12670

main75623-12670-04iAE10#,CE100,104,EE101..GT,SEG,SEL,XE199106-199305

DARK BLUE MICA M,8J7

sub75623-12670

main75623-12670-04iAE100,104,CE100,104,EE101..LX199110-199305

sub75623-12670

main75623-12670-05iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199505

LIGHT BEIGE M,3K9

sub75623-12670

main75623-12670-05iAE100,104,CE100,104,EE101..LX199110-199305

sub75623-12670

main75623-12670-07iAE100,104,CE100,104,EE101..LX199110-199305

sub75623-12670

main75623-12670-07iAE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE199106-199505

GRAYISH GREEN M,6M3

sub75623-12670

main75623-12670-08iAE100,104,CE100,104,EE101..LX199110-199305

sub75623-12670

main75623-12670-08iAE10#,CE100,104,EE101..GT,SEG,SEL,XE199106-199505

SUPER WHITE 2,040

sub75623-12670

main75623-12670-12iAE10#,CE100,104,EE101..SEG,SEL,XE199106-199205

ROSE MICA M.GRAPHITE,3K5

sub75623-12670

main75623-12670-12iAE100,104,CE100,104,EE101..LX199110-199205

sub75623-12670

main75623-12670-B1iAE10#,CE100,104,EE101..GT,SEG,SEL,XE199205-199305

sub75623-12670

main75623-12670-B1iAE10#,CE100,104,EE101..GT,SEG,SEL,XE199205-199505

SILVER MICA M,192

sub75623-12670

main75623-12670-G0iAE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE199305-199505

MD.GRAISHGREEN MC.GR,6N1

sub75623-12670

main75623-12670-J0iAE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE199305-199505

DARK BLUE MICA M.,8G5

sub75623-12670

75624AMOULDING, FRONT FENDER, OUTSIDE REAR LH

main75624-12640iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108..DX,L,XL199109-200206

main75624-12650-03iCE108,EE104199401-199508

sub75624-12650

main75624-12650-08iCE102199804-200206

SUPER WHITE 2,040

sub75624-12650

main75624-12650-08iCE108,EE104199401-200206

sub75624-12650

main75624-12650-13iCE108,EE104199401-199508

sub75624-12650

main75624-12650-B2iCE102199804-200206

BLUISH GRAY ME,182

sub75624-12650

main75624-12650-B2iCE108,EE104199508-200206

sub75624-12650

main75624-12650-B3iCE108,EE104199508-199605

sub75624-12650

main75624-12650-B3iCE108,EE104199704-199804

sub75624-12650

main75624-12650-B4iEE104199804-200206

SILVER ME,199 ,2EY

sub75624-12650

main75624-12650-B4iCE108,EE104199704-199804

sub75624-12650

main75624-12650-B4iCE108,EE104199605-199704

sub75624-12650

main75624-12650-B4iEE104199804-200206

sub75624-12650

main75624-12650-G1iCE108,EE104199401-199704

sub75624-12650

main75624-12650-G7iCE108,EE104199704-200206

sub75624-12650

main75624-12650-G7iCE102199804-200206

DK.GREEN M.M.,6P2

sub75624-12650

main75624-12660iAE100,CE100,EE101..DX199305-199505

BLACK TYPE

main75624-12660iAE100,104,CE100,104,EE101..DX,LX199106-199305

main75624-12670-02iAE100,104,CE100,104,EE101..LX199110-199305

sub75624-12670

main75624-12670-02iAE10#,CE100,104,EE101..GT,SEG,SEL,XE199106-199305

RED MICA M,3K4

sub75624-12670

main75624-12670-03iAE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE199106-199505

DARK BLUEISH GRAY M,183

sub75624-12670

main75624-12670-03iAE100,104,CE100,104,EE101..LX199110-199305

sub75624-12670

main75624-12670-04iAE100,104,CE100,104,EE101..LX199110-199305

sub75624-12670

main75624-12670-04iAE10#,CE100,104,EE101..GT,SEG,SEL,XE199106-199305

DARK BLUE MICA M,8J7

sub75624-12670

main75624-12670-05iAE10#,CE100,104,EE101..SEG,SEL,XE199106-199505

LIGHT BEIGE M,3K9

sub75624-12670

main75624-12670-05iAE100,104,CE100,104,EE101..LX199110-199305

sub75624-12670

main75624-12670-07iAE10#,CE100,104,EE101..GT,SEG,SEL,XE199106-199505

GRAYISH GREEN M,6M3

sub75624-12670

main75624-12670-07iAE100,104,CE100,104,EE101..LX199110-199305

sub75624-12670

main75624-12670-08iAE10#,CE100,104,EE101..GT,SEG,SEL,XE199106-199505

SUPER WHITE 2,040

sub75624-12670

main75624-12670-08iAE100,104,CE100,104,EE101..LX199110-199305

sub75624-12670

main75624-12670-12iAE100,104,CE100,104,EE101..LX199110-199205

sub75624-12670

main75624-12670-12iAE10#,CE100,104,EE101..SEG,SEL,XE199106-199205

ROSE MICA M.GRAPHITE,3K5

sub75624-12670

main75624-12670-B1iAE100,104,CE100,104,EE101..LX199205-199305

sub75624-12670

main75624-12670-B1iAE100,104,CE100,104,EE101..LX199205-199505

SILVER MICA M,192

sub75624-12670

main75624-12670-G0iAE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE199305-199505

MD.GRAISHGREEN MC.GR,6N1

sub75624-12670

main75624-12670-J0iAE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE199305-199505

DARK BLUE MICA M.,8G5

sub75624-12670

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-12500iCE102,105,106,107,109,EE103,107..L,XL199109-200008

main75710-12500iCE108,EE108199109-199804

main75710-12500iEE104199401-199704

main75710-12520iAE100,CE100,EE101..DX199106-199505

main75710-12530iAE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE199106-199505

main75710-12570iAE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE199106-199505

sub75710-12530

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-12500iCE108,EE108199109-199804

main75720-12500iCE105,107,EE103..XL;AE109,CE102,EE102..DX,L199109-200008

main75720-12500iEE104199401-199704

main75720-12520iAE100,CE100,EE101..DX199106-199505

main75720-12530iAE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE199106-199505

main75720-12570iAE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE199106-199505

sub75720-12530

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-12190iAE100,CE100,EE101..DX199106-199505

main75730-12200iAE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE199106-199505

main75730-12210iAE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE199106-199505

main75730-13040iCE102,105,106,107,109,EE103,107..L,XL199109-200008

main75730-13040iEE104199401-199704

main75730-13040iCE108199109-199804

75731AMOULDING, FRONT DOOR, OUTSIDE RH

main75731-1A330iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108..DX,L,XL199109

main75731-1A340-03iCE108,EE104199401-199508

sub75731-1A340

main75731-1A340-08iCE108,EE104199401

sub75731-1A340

main75731-1A340-08iCE102199804

SUPER WHITE 2,040

sub75731-1A340

main75731-1A340-13iCE108,EE104199401-199508

sub75731-1A340

main75731-1A340-B2iCE108,EE104199508

sub75731-1A340

main75731-1A340-B2iCE102199804

BLUISH GRAY ME,182

sub75731-1A340

main75731-1A340-B3iCE108,EE104199508-199605

sub75731-1A340

main75731-1A340-B3iCE108,EE104199704-199804

sub75731-1A340

main75731-1A340-B4iEE104199804

SILVER ME,199 ,2EY

sub75731-1A340

main75731-1A340-B4iEE104199804

sub75731-1A340

main75731-1A340-B4iCE108,EE104199704-199804

sub75731-1A340

main75731-1A340-B4iCE108,EE104199605-199704

sub75731-1A340

main75731-1A340-G1iCE108,EE104199401-199704

sub75731-1A340

main75731-1A340-G7iCE102199804

DK.GREEN M.M.,6P2

sub75731-1A340

main75731-1A340-G7iCE108,EE104199704

sub75731-1A340

main75731-1A350iAE100,104,CE100,104,EE101..LX199305-199505

BLACK TYPE

main75731-1A350iAE100,104,CE100,104,EE101..DX,LX199106-199305

main75731-1A360-02iAE100,104,CE100,104,EE101..LX199110-199305

sub75731-1A360

main75731-1A360-02iAE10#,CE100,104,EE101..GT,SEG,SEL,XE199106-199305

RED MICA M,3K4

sub75731-1A360

main75731-1A360-03iAE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE199106-199505

DARK BLUEISH GRAY M,183

sub75731-1A360

main75731-1A360-03iAE100,104,CE100,104,EE101..LX199110-199305

sub75731-1A360

main75731-1A360-04iAE10#,CE100,104,EE101..GT,SEG,SEL,XE199106-199305

DARK BLUE MICA M,8J7

sub75731-1A360

main75731-1A360-04iAE100,104,CE100,104,EE101..LX199110-199305

sub75731-1A360

main75731-1A360-05iAE100,104,CE100,104,EE101..LX199110-199305

sub75731-1A360

main75731-1A360-05iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199505

LIGHT BEIGE M,3K9

sub75731-1A360

main75731-1A360-07iAE100,104,CE100,104,EE101..LX199110-199305

sub75731-1A360

main75731-1A360-07iAE10#,CE100,104,EE101..GT,SEG,SEL,XE199106-199505

GRAYISH GREEN M,6M3

sub75731-1A360

main75731-1A360-08iAE100,104,CE100,104,EE101..LX199110-199305

sub75731-1A360

main75731-1A360-08iAE10#,CE100,104,EE101..GT,SEG,SEL,XE199106-199505

SUPER WHITE 2,040

sub75731-1A360

main75731-1A360-12iAE100,104,CE100,104,EE101..LX199110-199205

sub75731-1A360

main75731-1A360-12iAE10#,CE100,104,EE101..SEG,SEL,XE199106-199205

ROSE MICA M.GRAPHITE,3K5

sub75731-1A360

main75731-1A360-B1iAE10#,CE100,104,EE101..GT,SEG,SEL,XE199205-199505

SILVER MICA M,192

sub75731-1A360

main75731-1A360-B1iAE10#,CE100,104,EE101..GT,SEG,SEL,XE199205-199305

sub75731-1A360

main75731-1A360-G0iAE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE199305-199505

MD.GRAISHGREEN MC.GR,6N1

sub75731-1A360

main75731-1A360-J0iAE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE199305-199505

DARK BLUE MICA M,8G5

sub75731-1A360

75732AMOULDING, FRONT DOOR, OUTSIDE LH

main75732-1A170iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108..DX,L,XL199109

main75732-1A180-03iCE108,EE104199401-199508

sub75732-1A180

main75732-1A180-08iCE102199804

SUPER WHITE 2,040

sub75732-1A180

main75732-1A180-08iCE108,EE104199401

sub75732-1A180

main75732-1A180-13iCE108,EE104199401-199508

sub75732-1A180

main75732-1A180-B2iCE102199804

BLUISH GRAY ME,182

sub75732-1A180

main75732-1A180-B2iCE108,EE104199508

sub75732-1A180

main75732-1A180-B3iCE108,EE104199508-199605

sub75732-1A180

main75732-1A180-B3iCE108,EE104199704-199804

sub75732-1A180

main75732-1A180-B4iEE104199804

SILVER ME,199 ,2EY

sub75732-1A180

main75732-1A180-B4iCE108,EE104199605-199704

sub75732-1A180

main75732-1A180-B4iCE108,EE104199704-199804

sub75732-1A180

main75732-1A180-B4iCE102199804

sub75732-1A180

main75732-1A180-G1iCE108,EE104199401-199704

sub75732-1A180

main75732-1A180-G7iCE108,EE104199704

sub75732-1A180

main75732-1A180-G7iCE102199804

DK.GREEN M.M.,6P2

sub75732-1A180

main75732-1A190iAE100,104,CE100,104,EE101..LX199305-199505

BLACK TYPE

main75732-1A190iAE100,104,CE100,104,EE101..DX,LX199106-199305

main75732-1A200-02iAE100,104,CE100,104,EE101..LX199110-199305

sub75732-1A200

main75732-1A200-02iAE10#,CE100,104,EE101..GT,SEG,SEL,XE199106-199305

RED MICA M,3K4

sub75732-1A200

main75732-1A200-03iAE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE199106-199505

DARK BLUEISH GRAY M,183

sub75732-1A200

main75732-1A200-03iAE100,104,CE100,104,EE101..LX199110-199305

sub75732-1A200

main75732-1A200-04iAE10#,CE100,104,EE101..GT,SEG,SEL,XE199106-199305

DARK BLUE MICA M,8J7

sub75732-1A200

main75732-1A200-04iAE100,104,CE100,104,EE101..LX199110-199305

sub75732-1A200

main75732-1A200-05iAE100,104,CE100,104,EE101..LX199110-199305

sub75732-1A200

main75732-1A200-05iAE10#,CE100,104,EE101..SEG,SEL,XE199106-199505

LIGHT BEIGE M,3K9

sub75732-1A200

main75732-1A200-07iAE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE199106-199505

GRAYISH GREEN M,6M3

sub75732-1A200

main75732-1A200-07iAE100,104,CE100,104,EE101..LX199110-199305

sub75732-1A200

main75732-1A200-08iAE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE199106-199505

SUPER WHITE 2,040

sub75732-1A200

main75732-1A200-08iAE100,104,CE100,104,EE101..LX199110-199305

sub75732-1A200

main75732-1A200-12iAE100,104,CE100,104,EE101..LX199110-199205

sub75732-1A200

main75732-1A200-12iAE10#,CE100,104,EE101..SEG,SEL,XE199106-199205

ROSE MICA M.GRAPHITE,3K5

sub75732-1A200

main75732-1A200-B1iAE10#,CE100,104,EE101..GT,SEG,SEL,XE199205-199305

sub75732-1A200

main75732-1A200-B1iAE10#,CE100,104,EE101..GT,SEG,SEL,XE199205-199505

SILVER MICA M,192

sub75732-1A200

main75732-1A200-G0iAE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE199305-199505

MD.GRAISHGREEN MC.GR,6N1

sub75732-1A200

main75732-1A200-J0iAE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE199305-199505

DARK BLUE MICA M.,8G5

sub75732-1A200

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-12280iAE100,CE100,EE101..DX199106-199505

main75740-12290iAE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE199106-199505

main75740-12300iAE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE199106-199505

sub75740-12290

main75740-13040iCE108,EE108199109-199804

main75740-13040iCE108,EE104199401-199704

main75740-13040iCE102,105,106,107,109,EE103,107..L,XL199109-200008

75741MOULDING, REAR DOOR, OUTSIDE RH

main75741-12840iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108..DX,L,XL199109

main75741-12850-03iCE108,EE104199401-199508

sub75741-12850

main75741-12850-08iCE102199804

SUPER WHITE 2,040

sub75741-12850

main75741-12850-08iCE108,EE104199401

sub75741-12850

main75741-12850-13iCE108,EE104199401-199508

sub75741-12850

main75741-12850-B2iCE102199804

BLUISH GRAY ME,182

sub75741-12850

main75741-12850-B2iCE108,EE104199508

sub75741-12850

main75741-12850-B3iCE108,EE104199704-199804

sub75741-12850

main75741-12850-B3iCE108,EE104199508-199605

sub75741-12850

main75741-12850-B4iCE102199804

sub75741-12850

main75741-12850-B4iEE104199804

SILVER ME,199 ,2EY

sub75741-12850

main75741-12850-B4iCE108,EE104199605-199704

sub75741-12850

main75741-12850-B4iCE108,EE104199704-199804

sub75741-12850

main75741-12850-G1iCE108,EE104199401-199704

sub75741-12850

main75741-12850-G7iCE108,EE104199704

sub75741-12850

main75741-12850-G7iCE102199804

DK.GREEN M.M.,6P2

sub75741-12850

main75741-12860iAE100,104,CE100,104,EE101..LX199305-199505

BLACK TYPE

main75741-12860iAE100,104,CE100,104,EE101..DX,LX199106-199305

main75741-12870-02iAE100,104,CE100,104,EE101..LX199110-199305

sub75741-12870

main75741-12870-02iAE10#,CE100,104,EE101..GT,SEG,SEL,XE199106-199305

RED MICA M,3K4

sub75741-12870

main75741-12870-03iAE10#,CE100,104,EE101..GT,SEG,SEL,XE199106-199505

DARK BLUEISH GRAY M,183

sub75741-12870

main75741-12870-03iAE100,104,CE100,104,EE101..LX199110-199505

sub75741-12870

main75741-12870-04iAE100,104,CE100,104,EE101..LX199110-199305

sub75741-12870

main75741-12870-04iAE10#,CE100,104,EE101..GT,SEG,SEL,XE199106-199305

DARK BLUE MICA M,8J7

sub75741-12870

main75741-12870-05iAE10#,CE100,104,EE101..SEG,SEL,XE199106-199505

LIGHT BEIGE M,3K9

sub75741-12870

main75741-12870-05iAE100,104,CE100,104,EE101..LX199110-199505

sub75741-12870

main75741-12870-07iAE10#,CE100,104,EE101..GT,SEG,SEL,XE199106-199505

GRAYISH GREEN M,6M3

sub75741-12870

main75741-12870-07iAE100,104,CE100,104,EE101..LX199110-199505

sub75741-12870

main75741-12870-08iAE100,104,CE100,104,EE101..LX199110-199505

sub75741-12870

main75741-12870-08iAE10#,CE100,104,EE101..GT,SEG,SEL,XE199106-199505

SUPER WHITE 2,040

sub75741-12870

main75741-12870-12iAE100,104,CE100,104,EE101..LX199110-199205

sub75741-12870

main75741-12870-12iAE10#,CE100,104,EE101..SEG,SEL,XE199106-199205

ROSE MICA M.GRAPHITE,3K5

sub75741-12870

main75741-12870-B1iAE10#,CE100,104,EE101..GT,SEG,SEL,XE199205-199505

SILVER MICA M,192

sub75741-12870

main75741-12870-B1iAE10#,CE100,104,EE101..GT,SEG,SEL,XE199205-199505

sub75741-12870

main75741-12870-G0iAE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE199305-199505

MD.GRAISHGREEN MC.GR,6N1

sub75741-12870

main75741-12870-J0iAE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE199305-199505

DARK BLUE MICA M.,8G5

sub75741-12870

75742MOULDING, REAR DOOR, OUTSIDE LH

main75742-12830iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108..DX,L,XL199109

main75742-12840-03iCE108,EE104199401-199508

sub75742-12840

main75742-12840-08iCE108,EE104199401

sub75742-12840

main75742-12840-08iCE102199804

SUPER WHITE 2,040

sub75742-12840

main75742-12840-13iCE108,EE104199401-199508

sub75742-12840

main75742-12840-B2iCE108,EE104199508

sub75742-12840

main75742-12840-B2iCE102199804

BLUISH GRAY ME,182

sub75742-12840

main75742-12840-B3iCE108,EE104199704-199804

sub75742-12840

main75742-12840-B3iCE108,EE104199508-199605

sub75742-12840

main75742-12840-B4iCE102199804

sub75742-12840

main75742-12840-B4iCE108,EE104199605-199704

sub75742-12840

main75742-12840-B4iCE108,EE104199704-199804

sub75742-12840

main75742-12840-B4iCE102199804

SILVER ME,199 ,2EY

sub75742-12840

main75742-12840-G1iCE108,EE104199401-199704

sub75742-12840

main75742-12840-G7iCE108,EE104199704

sub75742-12840

main75742-12840-G7iCE102199804

DK.GREEN M.M.,6P2

sub75742-12840

main75742-12850iAE100,CE100,EE101..DX199305-199505

BLACK TYPE

main75742-12850iAE100,104,CE100,104,EE101..DX,LX199106-199305

main75742-12860-02iAE100,104,CE100,104,EE101..LX199110-199305

sub75742-12860

main75742-12860-02iAE10#,CE100,104,EE101..GT,SEG,SEL,XE199106-199305

RED MICA M,3K4

sub75742-12860

main75742-12860-03iAE10#,CE100,104,EE101..GT,SEG,SEL,XE199106-199505

DARK BLUEISH GRAY M,183

sub75742-12860

main75742-12860-03iAE100,104,CE100,104,EE101..LX199110-199505

sub75742-12860

main75742-12860-04iAE100,104,CE100,104,EE101..LX199110-199305

sub75742-12860

main75742-12860-04iAE10#,CE100,104,EE101..GT,SEG,SEL,XE199106-199305

DARK BLUE MICA M,8J7

sub75742-12860

main75742-12860-05iAE10#,CE100,104,EE101..SEG,SEL,XE199106-199505

LIGHT BEIGE M,3K9

sub75742-12860

main75742-12860-05iAE100,104,CE100,104,EE101..LX199110-199505

sub75742-12860

main75742-12860-07iAE10#,CE100,104,EE101..GT,SEG,SEL,XE199106-199505

GRAYISH GREEN M,6M3

sub75742-12860

main75742-12860-07iAE100,104,CE100,104,EE101..LX199110-199505

sub75742-12860

main75742-12860-08iAE100,104,CE100,104,EE101..LX199110-199505

sub75742-12860

main75742-12860-08iAE10#,CE100,104,EE101..GT,SEG,SEL,XE199106-199505

SUPER WHITE 2,040

sub75742-12860

main75742-12860-12iAE10#,CE100,104,EE101..SEG,SEL,XE199106-199205

ROSE MICA M.GRAPHITE,3K5

sub75742-12860

main75742-12860-12iAE100,104,CE100,104,EE101..LX199110-199205

sub75742-12860

main75742-12860-B1iAE100,104,CE100,104,EE101..LX199205-199505

SILVER MICA M,192

sub75742-12860

main75742-12860-B1iAE10#,CE100,104,EE101..GT,SEG,SEL,XE199205-199505

sub75742-12860

main75742-12860-G0iAE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE199305-199505

MD.GRAISHGREEN MC.GR,6N1

sub75742-12860

main75742-12860-J0iAE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE199305-199505

DARK BLUE MICA M.,8G5

sub75742-12860

75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-12090iAE10#,CE100,104,EE101199106-199505

75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-12110iAE10#,CE100,104,EE101199106-199505

75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH

main75761-12040iAE10#,CE100,104,EE101199106-199405

main75761-12041iAE10#,CE100,104,EE101199405-199505

75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH

main75762-12040iAE10#,CE100,104,EE101199106-199405

main75762-12041iAE10#,CE100,104,EE101199405-199505

75791BCLIP, BELT MOULDING SIDE

main75791-12050iAE100,CE100,EE101..DX199106-199505

75921TAPE, BLACK OUT, NO.1 RH

main75921-12020iAE10#,CE100,104,EE101199405-199505

75922BTAPE, BLACK OUT, NO.1 LH

main75922-12020iAE10#,CE100,104,EE101199405-199505

9016840081

main90168-40081

9017605016

main90176-05016

9017905095

main90179-05095

9018904175

main90189-04175

9018904199

main90189-04199

27 parts on this diagram · 2 diagrams in section
