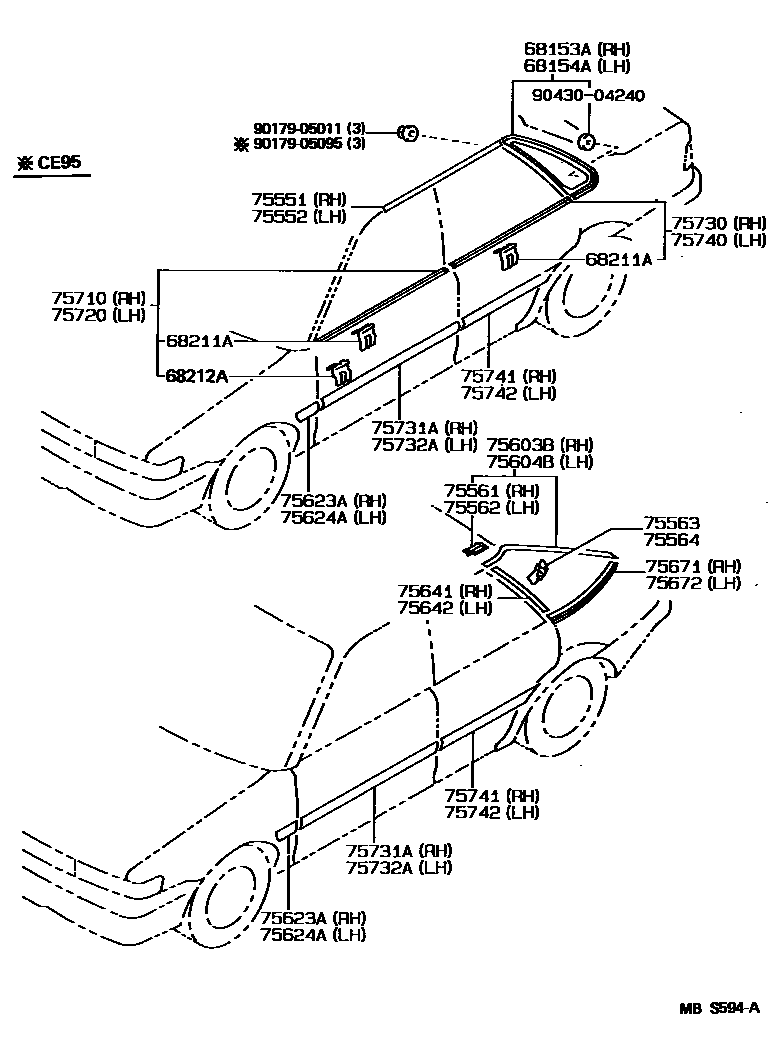

Toyota SPRINTER — SIDE MOULDING

0001 1 0002 1 0003 1

68153AMOULDING, QUARTER WINDOW NO.2 GLASS, RH

main68153-12040iAE91,CE90,EE90..DX198705-199106

main68153-12050iAE9#,CE90,95,EE90..4D..(GT,LX,MX,SE)198705-199106

68154AMOULDING, QUARTER WINDOW NO.2 GLASS, LH

main68154-12040iAE91,CE90,EE90..DX198705-199106

main68154-12050iAE9#,CE90,95,EE90..4D..(GT,LX,MX,SE)198705-199106

68211ACLIP, DOOR BELT MOULDING

main68211-12130×26iEE98..(3FC,5F)..XL;AE9#,CE90,EE90..4D,5D198705-198905

68212ACLIP, DOOR GLASS WEATHERSTRIP, OUTER

main68212-12010×2iAE95..EFI198802-198905

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-12390iAE91,CE90,EE90..DX198705-199106

main75551-12400iAE9#,CE90,95,EE90..4D..(GT,LX,MX,SE)198705-199106

main75551-12430iAE95..WG198802-199009

main75551-12450iAE91,92..5D198705-199106

main75551-12470iAE9#,CE90,95,EE90..4D..(GT,LX,MX,SE)198905-199106

main75551-12480iAE91,92..5D198905-199106

main75551-13071iCE96,EE96,98198808-199108

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-12390iAE91,CE90,EE90..DX198705-199106

main75552-12400iAE9#,CE90,95,EE90..4D..(GT,LX,MX,SE)198705-199106

main75552-12430iAE95..WG198802-199009

main75552-12450iAE91,92..5D198705-199106

main75552-12470iAE9#,CE90,95,EE90..4D..(GT,LX,MX,SE)198905-199106

main75552-12480iAE91,92..5D198905-199106

main75552-13071iCE96,EE96,98198808-199108

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-12020iAE91,92..5D198705-199106

75562CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.2

main75562-12020iAE91,92..5D198705-199106

75563RETAINER, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75563-12040iAE91,92..5D198705-199106

75564RETAINER, ROOF DRIP SIDE FINISH MOULDING, NO.2

main75564-12020iAE91,92..5D198705-199106

75603BMOULDING SUB-ASSY, QUARTER WINDOW OUTSIDE, RH

main75603-12110iAE91,92..5D198705-199106

main75603-12130iAE91,92..5D198905-199106

75604BMOULDING SUB-ASSY, QUARTER WINDOW OUTSIDE, LH

main75604-12050iAE91,92..5D198705-199106

main75604-12080iAE91,92..5D198905-199106

75623AMOULDING, FRONT FENDER, OUTSIDE REAR RH

main75623-12320-05iAE91..SE198801-198803

main75623-12460iCE96,EE96,98..DX,XL198808-199108

main75623-12480iAE91,CE90,EE90..DX198905-199106

BLACK

main75623-12490iAE9#,CE90,95,EE90..G,GT,L,LX,MX,SE,XS198905-199106

main75623-12540-02iAE95..AV1198802-199009

RED,040 ,168

main75623-12540-03iAE95..AV1198908-199009

SILVER,3E5 ,8E9

main75623-12550-02iAE95..AV2,RVS198802-199009

RED,040 ,168 ,20G

main75623-12550-03iAE95..AV2198909-198910

main75623-12590-08iAE91..SE198909-199005

75624AMOULDING, FRONT FENDER, OUTSIDE REAR LH

main75624-12320-05iAE91..SE198801-198803

main75624-12460iCE96,EE96,98..DX,XL198808-199108

main75624-12480iAE91,CE90,EE90..DX198905-199106

BLACK

main75624-12490iAE9#,CE90,95,EE90..G,GT,L,LX,MX,SE,XS198905-199106

main75624-12540-02iAE95..AV1198802-199009

RED,040 ,168

main75624-12540-03iAE95..AV1198908-199009

SILVER,3E5 ,8E9

main75624-12550-02iAE95..AV2,RVS198802-199009

RED,040 ,168 ,20G

main75624-12550-03iAE95..AV2,RVS198908-199009

SILVER,25M ,26M ,3E5 ,8E9

main75624-12590-08iAE91..SE198909-199005

75641MOULDING, QUARTER WINDOW, OUTSIDE FRONT RH

main75641-12130iAE91,92..5D198705-199106

75642MOULDING, QUARTER WINDOW, OUTSIDE FRONT LH

main75642-12130iAE91,92..5D198705-199106

75671MOULDING, QUARTER BELT, RH

main75671-12140iAE91,92..5D198705-199106

main75671-12160iAE91,92..5D198905-199106

75672MOULDING, QUARTER BELT, LH

main75672-12150iAE91,92..5D198705-199106

main75672-12170iAE91,92..5D198905-199106

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-12400iAE9#,CE90,95,EE90..G,GT,L,LX,MX,SE,XI,XS198705-199106

main75710-12410iEE98..(3FC,5F)..XL;AE91,95,CE90,EE90..AV1,AV2,DX,RVS198705-198908

main75710-12480iAE9#,CE90,95,EE90..G,GT,L,LX,MX,SE,XS198905-199106

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-12400iAE9#,CE90,95,EE90..G,GT,L,LX,MX,SE,XI,XS198705-199106

main75720-12410iEE98..(3FC,5F)..XL;AE91,95,CE90,EE90..AV1,AV2,DX,RVS198705-198908

main75720-12480iAE9#,CE90,95,EE90..G,GT,L,LX,MX,SE,XS198905-199106

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-12100iAE9#,CE90,EE90..G,GT,L,LX,MX,SE,XI198705-198802

main75730-12101iAE9#,CE90,95,EE90..G,GT,L,LX,MX,SE,XI,XS198802-199106

main75730-12110iAE91,CE90,EE90..DX198705-198802

main75730-12111iAE91,CE90,EE90..DX198802-199106

main75730-12130iAE95,CE96,EE98..(3FC,4FC,5F)..(AV1,AV2,RVS,XL)198908-199108

main75730-12150iAE9#,CE90,95,EE90..G,GT,L,LX,MX,SE,XS198905-199106

75731AMOULDING, FRONT DOOR, OUTSIDE RH

main75731-12860iCE96,EE96,98..DX,XL198808-199108

main75731-12880iAE91,CE90,EE90..DX198905-199106

BLACK

main75731-12890iAE9#,CE90,95,EE90..G,GT,L,LX,MX,SE,XS198905-199106

main75731-1A120-02iAE95..AV1198802-199009

RED,040 ,168

main75731-1A120-03iAE95..AV1198802-198908

SILVER,3E5 ,4H7

main75731-1A130-02iAE95..AV2,RVS198802-199009

RED,040 ,168 ,20G

main75731-1A130-03iAE95..AV2198909-198910

main75731-1A160-05iAE91..SE198801-198803

main75731-1A240-08iAE91..SE199005-199106

SUPER WHITE 2,040

75732AMOULDING, FRONT DOOR, OUTSIDE LH

main75732-12700iCE96,EE96,98..DX,XL198808-199108

main75732-12720iAE91,CE90,EE90..DX198905-199106

BLACK

main75732-12730iAE9#,CE90,95,EE90..G,GT,L,LX,MX,SE,XS198905-199106

main75732-12850-02iAE95..AV1198802-199009

RED,040 ,168

main75732-12850-03iAE95..AV1198908-199009

SILVER,3E5 ,8E9

main75732-12860-02iAE95..AV2,RVS198802-199009

RED,040 ,168 ,20G

main75732-12860-03iAE95..RVS198802-198908

SILVER,21G ,22G ,3E5 ,4H7

main75732-12890-05iAE91..SE198801-198803

main75732-1A080-08iAE91,95,CE90..SE198901-198905

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-12190iAE9#,CE90,EE90..G,GT,L,LX,MX,SE,XI198705-198802

main75740-12191iAE9#,CE90,95,EE90..G,GT,L,LX,MX,SE,XI,XS198802-199106

main75740-12200iAE91,CE90,EE90..DX198705-198802

main75740-12201iAE91,CE90,EE90..DX198802-199106

main75740-12210iAE9#,CE90,95,EE90..G,GT,L,LX,MX,SE,XS198905-199106

main75740-12220iAE95,CE96,EE98..(3FC,4FC,5F)..(AV1,AV2,RVS,XL)198908-199108

75741MOULDING, REAR DOOR, OUTSIDE RH

main75741-12630iCE96,EE96,98..DX,XL198808-199108

main75741-12650iAE91,CE90,EE90..DX198905-199106

BLACK

main75741-12660iAE9#,CE90,95,EE90..G,GT,L,LX,MX,SE,XS198905-199106

main75741-12710-02iAE95..AV1198802-199009

RED,040 ,168

main75741-12710-03iAE95..AV1198802-198908

SILVER,3E5 ,4H7

main75741-12720-03iAE95..AV2198809-198810

main75741-12740-02iAE95..AV2,RVS198802-199009

RED,040 ,168 ,20G

main75741-12740-03iAE95..RVS198802-198908

SILVER,21G ,22G ,3E5 ,4H7

main75741-12770-05iAE91..SE198801-198803

main75741-12790-08iAE91..SE198909-199005

75742MOULDING, REAR DOOR, OUTSIDE LH

main75742-12610iCE96,EE96,98..DX,XL198808-199108

main75742-12630iAE91,CE90,EE90..LX198910-199106

main75742-12640iAE9#,CE90,EE90..G,GT,L,MX,SE,XI198705-198905

main75742-12690-02iAE95..AV1198802-199009

RED,040 ,168

main75742-12690-03iAE95..AV1198908-199009

SILVER,3E5 ,8E9

main75742-12700-03iAE95..AV2198909-198910

main75742-12720-02iAE95..AV2,RVS198802-199009

RED,040 ,168 ,20G

main75742-12720-03iAE95..RVS198802-198908

SILVER,21G ,22G ,3E5 ,4H7

main75742-12750-05iAE91..SE198801-198803

main75742-12780-08iAE91..SE198909-199005

9017905011

main90179-05011

9017905095

main90179-05095

9043004240

main90430-04240

29 parts on this diagram · 3 diagrams in section
