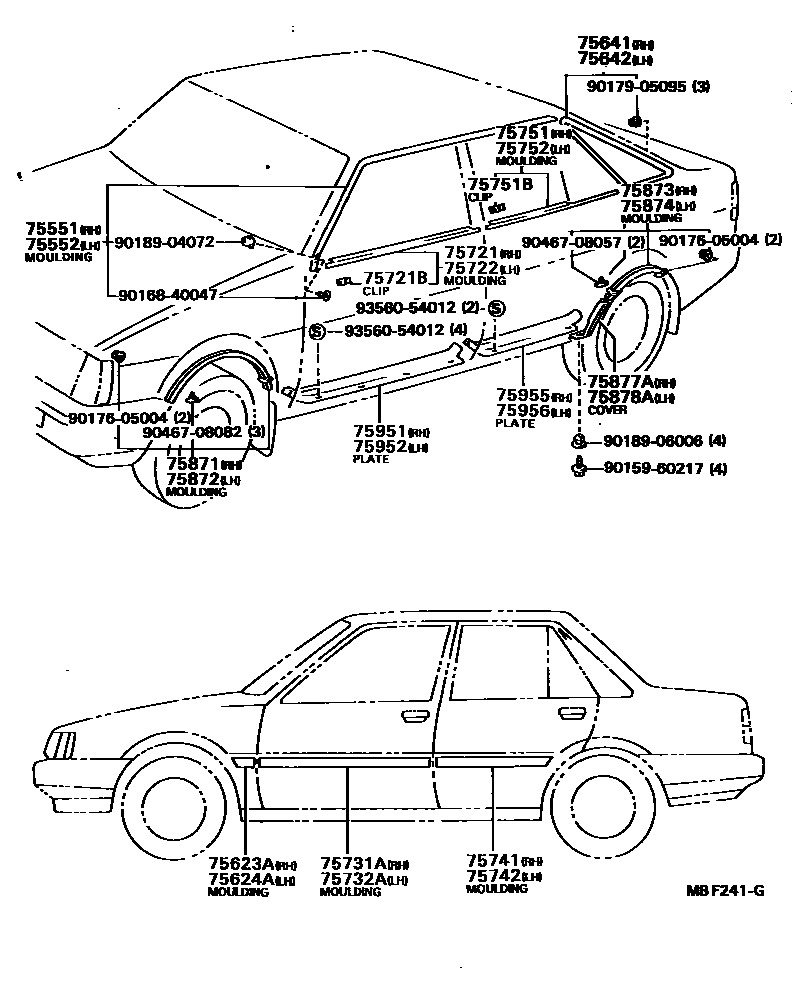

Toyota SPRINTER — SIDE MOULDING

0001 1 0002 1

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-19145iAE8#,CE80,EE80..4D..(DX,SPD,SR,XL)198305-198704

main75551-19155iAE81,82,CE80..GT,SE198305-198704

main75551-19165iAE81,82,CE80,EE80..5D198305-198704

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-19145iAE8#,CE80,EE80..4D..(DX,SPD,SR,XL)198305-198704

main75552-19155iAE81..4D..XL198608-198704

SUPER XL SALOON

main75552-19165iAE81,82,CE80,EE80..5D198305-198704

75623AMOULDING, FRONT FENDER, OUTSIDE REAR RH

main75623-12150-01iAE81,CE80,EE80..DX,SPD,XL198505-198704

BLACK,BLACK

main75623-12160-01iAE8#,CE80..DX,SPD,SR,SX,XL,ZX198401-198505

BLACK,BLACK

main75623-12160-03iAE81..SE,SX,XL,ZX198305-198401

GRAY,GRAY

main75623-12180iAE81,82,CE80..GT,SE198401-198505

BLACK

main75623-12300-01iAE8#,CE80..GT,SE,ZX198505-198704

BLACK,BLACK

main75623-12350iAE8#,CE80..SE,ZX198505-198704

SILVER-M

75624AMOULDING, FRONT FENDER, OUTSIDE REAR LH

main75624-12150-01iAE81,CE80,EE80..DX,SPD,XL198505-198704

BLACK,BLACK

main75624-12160-01iAE8#,CE80..DX,SPD,SR,SX,XL,ZX198401-198505

BLACK,BLACK

main75624-12160-03iAE81..SE,SX,XL,ZX198305-198401

GRAY,GRAY

main75624-12180iAE81,82,CE80..GT,SE198401-198505

BLACK

main75624-12300-01iAE8#,CE80..GT,SE,ZX198505-198704

BLACK,BLACK

main75624-12350iAE8#,CE80..SE,ZX198505-198704

SILVER-M

75641MOULDING, QUARTER WINDOW, OUTSIDE FRONT RH

main68153-19015iAE81,CE80,EE80..4D..(DX,SPD,XL)198505-198704

main68153-19025iAE81..4D..XL198608-198704

SUPER XL SALOON

main68153-19035iAE81,82,CE80,EE80..5D198305-198704

75642MOULDING, QUARTER WINDOW, OUTSIDE FRONT LH

main68154-19015iAE8#,CE80..DX,SPD,SR,XL198305-198505

main68154-19025iAE81..4D..XL198608-198704

SUPER XL SALOON

main68154-19035iAE81,82,CE80,EE80..5D198305-198704

75721MOULDING, FRONT DOOR BELT, RH

main75710-12360iCE80..DX;AE80..SPD198409-198505

RIVIERE

main75710-12380iAE81,82,CE80..GT,SE198305-198704

75721BCLIP(FOR FRONT DOOR BELT MOULDING SET)

main68211-12090×12iAE8#,CE80,EE80..GT,SE,SX,XL,ZX198305-198704

75722MOULDING, FRONT DOOR BELT, LH

main75720-12360iCE80..DX;AE80..SPD198409-198505

RIVIERE

main75720-12380iAE81,82,CE80..GT,SE198305-198704

75731AMOULDING, FRONT DOOR, OUTSIDE RH

main75731-12370-01iAE81,CE80,EE80..DX,SPD,XL198505-198704

BLACK,BLACK

main75731-12380-01iAE81,82,CE80..SE,SR198305-198401

BLACK,BLACK

main75731-12380-03iAE81..SE,SX,XL,ZX198305-198401

GRAY,GRAY

main75731-12430iAE81,82,CE80..GT,SE198401-198505

BLACK

main75731-12610-01iAE8#,CE80..GT,SE,ZX198505-198704

BLACK,BLACK

main75731-12660iAE8#,CE80..SE,ZX198505-198704

SILVER-M

75732AMOULDING, FRONT DOOR, OUTSIDE LH

main75732-12210-01iAE81,CE80,EE80..DX,SPD,XL198505-198704

BLACK,BLACK

main75732-12220-01iAE8#,CE80..DX,SPD,SR,SX,XL,ZX198401-198505

BLACK,BLACK

main75732-12220-03iAE81..SE,SX,XL,ZX198305-198401

GRAY,GRAY

main75732-12270iAE81,82,CE80..GT,SE198401-198505

BLACK

main75732-12450-01iAE8#,CE80..GT,SE,ZX198505-198704

BLACK,BLACK

main75732-12500iAE8#,CE80..SE,ZX198505-198704

SILVER-M

75741MOULDING, REAR DOOR, OUTSIDE RH

main75741-12211-01iAE81,CE80,EE80..DX,SPD,XL198505-198704

BLACK,BLACK

main75741-12220-01iAE8#,CE80..DX,SPD,SX,XL,ZX198401-198408

BLACK,BLACK

main75741-12220-03iAE80,CE80198305-198401

GRAY,GRAY

main75741-12260-01iAE80,81..XL198401-198505

LISSE,BLACK,BLACK

main75741-12260-03iAE80,81..XL198305-198401

LISSE,GRAY,GRAY

main75741-12261-01iAE81,EE80..4D..XL198505-198704

LISSE,BLACK,BLACK

main75741-12330iAE81,CE80..SE198401-198505

BLACK

sub75741-12540

main75741-12350-01iAE82..SR198310-198408

BLACK,BLACK

main75741-12350-03iAE82..SR198310-198401

GRAY,GRAY

main75741-12380-01iAE82..GT198410-198505

BLACK,BLACK

sub75741-12540

main75741-12450-01iAE81,CE80,EE80..4D..XL198505-198704

BLACK,BLACK

main75741-12460-01iAE82..GT198505-198704

BLACK,BLACK

main75741-12500iAE8#,CE80..SE,ZX198505-198704

SILVER-M

main75741-12620iAE81..SE198701-198704

SALOON LIMITED

75742MOULDING, REAR DOOR, OUTSIDE LH

main75742-12201-01iAE81,CE80,EE80..DX,SPD,XL198505-198704

BLACK,BLACK

main75742-12210-01iAE81,CE80..SE198305-198401

BLACK,BLACK

main75742-12210-03iAE80,CE80198305-198401

GRAY,GRAY

main75742-12250-01iAE80,81..XL198401-198505

LISSE,BLACK,BLACK

main75742-12250-03iAE80,81..XL198305-198401

LISSE,GRAY,GRAY

main75742-12251-01iAE81,EE80..4D..XL198505-198704

LISSE,BLACK,BLACK

main75742-12310iAE81,CE80..SE198401-198505

BLACK

sub75742-12520

main75742-12330-01iAE82..SR198310-198408

BLACK,BLACK

main75742-12330-03iAE82..SR198310-198401

GRAY,GRAY

main75742-12360-01iAE82..GT198410-198505

BLACK

sub75742-12520

main75742-12430-01iAE81,CE80,EE80..4D..XL198505-198704

BLACK,BLACK

main75742-12440-01iAE82..GT198505-198704

BLACK,BLACK

main75742-12480iAE8#,CE80..SE,ZX198505-198704

SILVER-M

main75742-12600iAE81..SE198701-198704

SALOON LIMITED

75751MOULDING, REAR DOOR BELT, RH

main75730-12050iAE81..4D..XL198608-198704

SUPER XL SALOON

main75730-12060iAE8#,CE80,EE80..SR,SX,XL,ZX198305-198704

75751BCLIP (FOR REAR DOOR BELT MOULDING SET)

main68211-12080×8iAE81,CE80,EE80..DX198505-198704

RIVIERE

75752MOULDING, REAR DOOR BELT, LH

main75740-12140iAE81,82,CE80..GT,SE198305-198704

main75740-12150iCE80..DX;AE80..SPD198409-198505

RIVIERE

75871MOULDING, FRONT FENDER WHEEL OPENING, RH

main75871-19105iAE82..GT198410-198704

75872MOULDING, FRONT FENDER WHEEL OPENING, LH

main75872-19105iAE82..GT198410-198704

75873MOULDING, QUARTER PANEL WHEEL OPENING, RH

main75873-19055iAE82..GT198410-198704

75874MOULDING, QUARTER PANEL WHEEL OPENING, LH

main75874-19055iAE82..GT198410-198704

75877ACOVER, QUARTER OPENING END, RH

main75877-12010iAE82..GT198410-198704

75878ACOVER, QUARTER OPENING END, LH

main75878-12010iAE82..GT198410-198704

75951PLATE, FRONT DOOR SCUFF, OUTSIDE RH

main67913-12140-02iAE8#,CE80198305-198408

MAROON,RED/MAROON,TRIM3#

main67913-12140-03iAE8#,CE80,EE80198305-198704

GRAY,GRAY,TRIM1#

main67913-12140-04iAE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX198305-198505

BLUE,BLUE,TRIM8#

main67913-12140-06iAE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX198408-198704

BROWN,BROWN,TRIM4#

75952PLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67913-12140-02iAE8#,CE80198305-198408

MAROON,RED/MAROON,TRIM3#

main67913-12140-03iAE8#,CE80,EE80198305-198704

GRAY,GRAY,TRIM1#

main67913-12140-04iAE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX198305-198505

BLUE,BLUE,TRIM8#

main67913-12140-06iAE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX198408-198704

BROWN,BROWN,TRIM4#

75955PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67917-12050-02iAE8#,CE80198305-198408

MAROON,RED/MAROON,TRIM3#

main67917-12050-03iAE8#,CE80,EE80198305-198704

GRAY,GRAY,TRIM1#

main67917-12050-04iAE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX198305-198505

BLUE,BLUE,TRIM8#

main67917-12050-06iAE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX198408-198704

BROWN,BROWN,TRIM4#

75956PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67917-12050-02iAE8#,CE80198305-198408

MAROON,RED/MAROON,TRIM3#

main67917-12050-03iAE8#,CE80,EE80198305-198704

GRAY,GRAY,TRIM1#

main67917-12050-04iAE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX198305-198505

BLUE,BLUE,TRIM8#

main67917-12050-06iAE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX198408-198704

BROWN,BROWN,TRIM4#

9015960217

main90159-60217

9016840047

main90168-40047

9017605004

main90176-05004

9017905095

main90179-05095

9018904072

main90189-04072

9018906006

main90189-06006

9046708057

main90467-08057

9046708082

main90467-08082

9356054012

main93560-54012

35 parts on this diagram · 2 diagrams in section
