Toyota SPRINTER — SIDE MEMBER

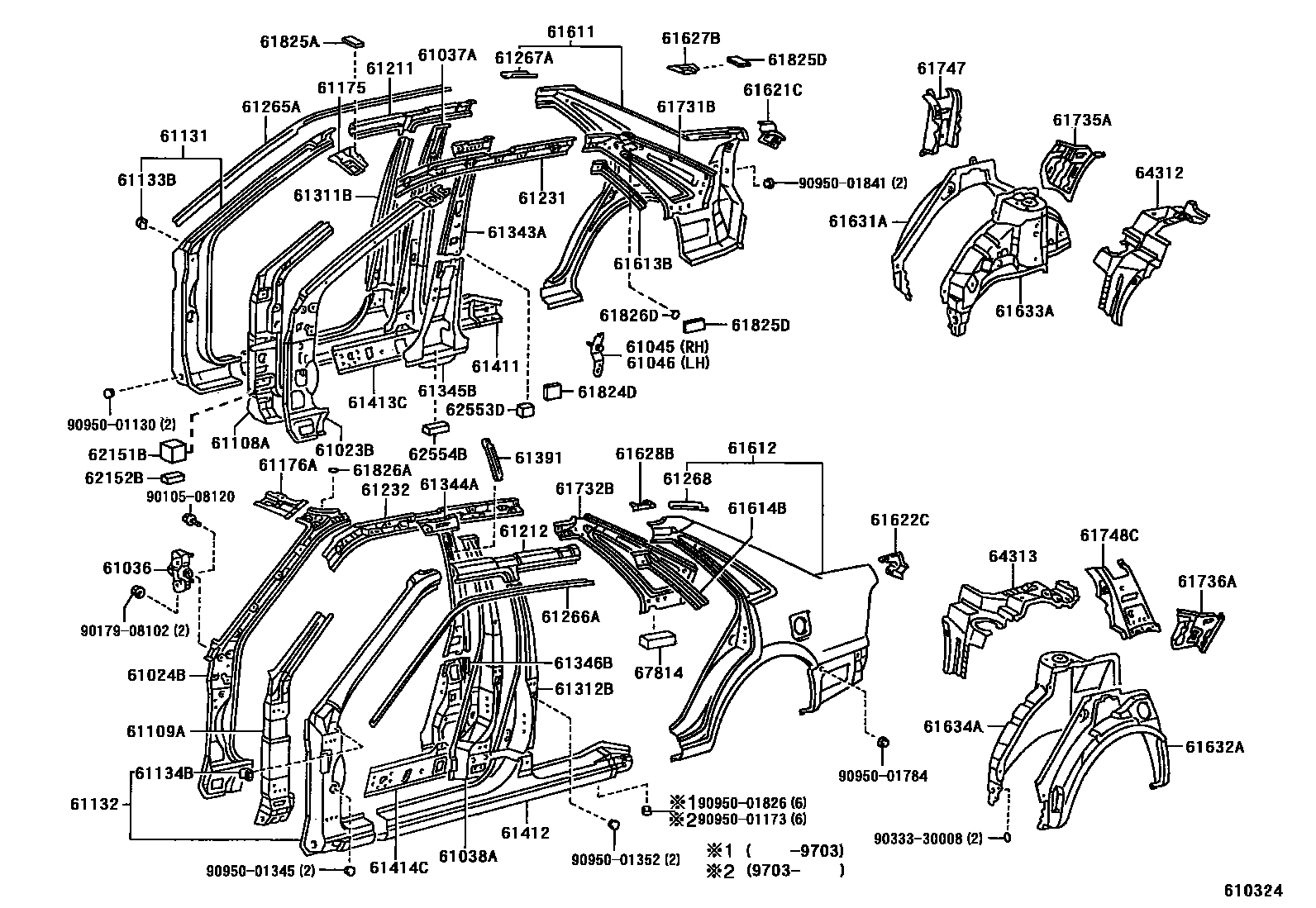

Parts diagram
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
main61023-12090i199505-199704
main61023-12230i199704-200008
61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH
main61024-12090i199505-199704
main61024-12230i199704-200008
61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH
main61036-12070i199505-199704
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
main61037-12100i199505-199704
INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC
main61037-12901i199704-200008
61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
main61038-12100i199505-199704
INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC
main61038-12901i199704-200008
61045REINFORCE SUB-ASSY, BELT TO CENTER PILLAR, RH
main61045-12070i199505-199704
61046REINFORCE SUB-ASSY, BELT TO CENTER PILLAR, LH
main61046-12070i199505-199704
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
main61108-12160i199505-199704
main61108-12180i199704-200008
61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
main61109-12150i199505-199704
main61109-12170i199704-200008
61131PILLAR, FRONT BODY, UPPER OUTER RH
main61131-12440i199904-200004
sub90950-01173
main61131-12450i199505-199704
main61131-12470i199704-199909
sub90950-01944
main61131-12500i199704-199909
sub90950-01944
main61131-12510i199704-199909
main61131-12560i199909-200008
main61131-12570i199909-200008
main61131-12580i199909-200008
61132PILLAR, FRONT BODY, UPPER OUTER LH
main61132-12450i199505-199704
sub90950-01173
main61132-12480i199704-199909
sub90950-01944
main61132-12510i199704-199909
sub90950-01944
main61132-12570i199909-200008
main61132-12580i199909-200008
61133BBRACKET, FRONT BODY PILLAR ,OUTER RH
main61133-12190i199505-199704
61134BBRACKET, FRONT BODY PILLAR OUTER, LH
main61133-12190i199505-199704
61175REINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 RH
main61175-12110i199505-199704
61176AREINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 LH
main61176-12120i199505-199704
61211RAIL, ROOF SIDE, OUTER RH
main61211-12350i199505-199704
61212RAIL, ROOF SIDE, OUTER LH
main61212-12350i199505-199704
61231RAIL, ROOF SIDE, INNER RH
main61231-12840i199505-199704
main61231-1A040i199704-200008
61232RAIL, ROOF SIDE, INNER LH
main61232-12720i199505-199704
main61232-12810i199704-200008
61265ACHANNEL, ROOF DRIP SIDE, CENTER RH
main61265-12230i199505-199704
61266ACHANNEL, ROOF DRIP SIDE, CENTER LH
main61266-12230i199505-199704
61267ACHANNEL, ROOF DRIP SIDE, REAR RH
main61267-12200i199505-199704
61268CHANNEL, ROOF DRIP SIDE, REAR LH
main61268-12200i199505-199704
61311BPILLAR, CENTER BODY, OUTER RH
main61311-12240i199505-199704
main61311-12290i199704-199909
sub90950-01944
main61311-12300i199704-199909
sub90950-01944
main61311-12310i199909-200008
main61311-12320i199909-200008
61312BPILLAR, CENTER BODY, OUTER LH
main61312-12280i199505-199704
main61312-12330i199704-199909
sub90950-01944
main61312-12340i199704-199909
sub90950-01944
main61312-12350i199909-200008
main61312-12360i199909-200008
61343APILLAR, CENTER BODY, INNER RH
main61343-12120i199505-199704
main61343-12160i199704-200008
61344APILLAR, CENTER BODY, INNER LH
main61344-12120i199505-199704
main61344-12160i199704-200008
61345BPILLAR, CENTER BODY, INNER LOWER RH
main61345-12030i199505-199704
main61345-12040i199704-200008
61346BPILLAR, CENTER BODY, INNER LOWER LH
main61346-12030i199505-199704
main61346-12040i199704-200008
61391SPACER, CENTER BODY PILLAR, INNER
main61391-12010×2i199704-199705
61411PANEL, ROCKER, OUTER RH
main61411-12590i199505-199704
sub90950-01173
61412PANEL, ROCKER, OUTER LH
main61412-12580i199505-199704
sub90950-01173
61413CREINFORCEMENT, ROCKER PANEL, NO.2 RH
main61413-12080i199505-199704
main61413-12900i199704-200008
61414CREINFORCEMENT, ROCKER PANEL, NO.2 LH
main61414-12100i199505-199704
main61414-12900i199704-200008
61611PANEL, QUARTER, RH
main61601-1E931i199505-199704
main61601-1H901i199704-200008
61612PANEL, QUARTER, LH
main61602-1E937i199505-199704
main61602-1E943i199704-200008
61613BPANEL, QUARTER, INNER FRONT RH
main61613-12040i199505-199704
61614BPANEL, QUARTER, INNER FRONT LH
main61614-12040i199505-199704
61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH
main61621-12340i199505-199704
61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH
main61622-12340i199505-199704
61627BEXTENSION, QUARTER PANEL, UPPER REAR RH
main61627-12150i199505-199704
61628BEXTENSION, QUARTER PANEL, UPPER REAR LH
main61628-12160i199505-199704
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
main61631-12300i199505-199704
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
main61632-12320i199505-199704
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
main61607-12922i199505-199704
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
main61608-12920i199505-199704
61731BPANEL, ROOF SIDE, INNER RH
main61731-12660i199505-199704
61732BPANEL, ROOF SIDE, INNER LH
main61732-12580i199505-199704
61735APANEL, ROOF SIDE, INNER REAR RH
main61735-12350i199505-199704
61736APANEL, ROOF SIDE, INNER REAR LH
main61736-12340i199505-199704
61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH
main61747-12250i199505-199704
61748CBRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH
main61748-12250i199505-199704
61824DPLATE, NOISE CONTROL, NO.1
main61824-50020×2i199505-199704
61825APLATE, NOISE CONTROL, NO.2
main61815-32020×2i199505-199704
61825DCOVER, ROOF SIDE, INNER UPPER RH
main61815-32020×4i199505-199704
61826APLATE, NOISE CONTROL, NO.3
main61824-12040×2i199505-199704
main61824-12050×2i199704-200008
61826DPLATE, NOISE CONTROL, NO.3
main61824-12040×2i199505-199704
main61824-12050×2i199704-200008
62151BPAD, COWL SIDE SILENCER
main62151-12130×2i199704-199705
62152BPAD, COWL SIDE SILENCER, NO.2
main62152-12050×2i199704-200008
90 X 140
main62554-12130×2i199505-199704
80 X 180
main62554-12160×2i199704-200008
70 X 150
62553DPAD, PILLAR, NO.3
main62553-12120×4i199704-200008
62554BPAD, PILLAR, NO.4
main62554-12130×2i199505-199704
main62554-12160×2i199704-200008
64312BRACKET, PACKAGE TRAY, RH
main64301-12250i199505-199704
64313BRACKET, PACKAGE TRAY, LH
main64302-12250i199505-199704
67814PAD, QUARTER PANEL SILENCER, NO.2
main67814-12020×2i199505-199704
9010508120
main90105-08120
9017908102
main90179-08102
9033330008
main90333-30008
9095001130
main90950-01130
9095001173
main90950-01173
9095001345
main90950-01345
9095001352
main90950-01352
9095001784
main90950-01784
9095001826
main90950-01826
9095001841
main90950-01841

74 parts on this diagram · 2 diagrams in section
