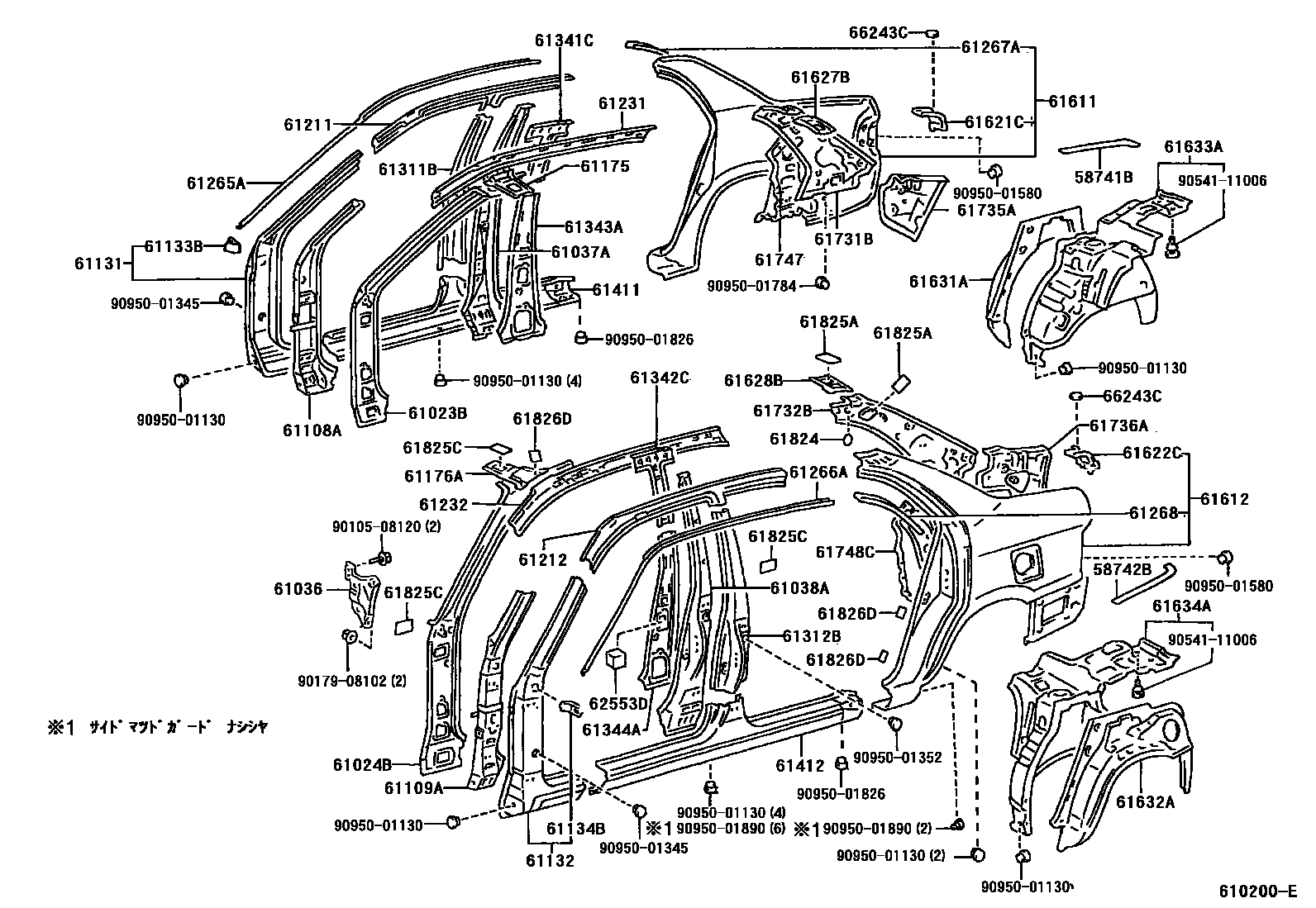

Toyota SPRINTER — SIDE MEMBER

0001 1 0002 1

58741BPROTECTOR, QUARTER PANEL, RH

main52462-12040iAE10#,CE100,104,EE101199106-199505

58742BPROTECTOR, QUARTER PANEL, LH

main52463-12030iAE10#,CE100,104,EE101199106-199505

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-12110iAE10#,CE100,104,EE101199106-199505

sub61023-12160

main61023-12140iAE109,CE10#,EE10#199109-199505

main61023-12160iAE100,104..ATM..(LX,SEL)199106-199402

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-12110iAE10#,CE100,104,EE101199106-199505

main61024-12140iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109

61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH

main61036-12050iAE10#,CE10#,EE10#199106-199505

sub61036-12090

main61036-12090iAE109,CE10#,EE10#199505

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-12050iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109-200008

main61037-12060iAE10#,CE100,104,EE101199106-199505

main61037-13020iAE109,CE10#,EE10#200008

61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

main61038-12050iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109-200008

main61038-12060iAE10#,CE100,104,EE101199106-199505

main61038-13020iAE109,CE10#,EE10#200008

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-12110iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109

main61108-12120iAE10#,CE100,104,EE101199106-199505

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-12100iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109

main61109-12110iAE10#,CE100,104,EE101199106-199505

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-12350iAE109,CE106,108,109,EE102,103,104,106,107,108199109-199704

main61131-12370iAE10#,CE100,104,EE101199106-199505

main61131-13020iAE109,CE10#,EE10#199704-200206

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-12360iAE109,CE106,108,109,EE102,103,104,106,107,108199109-199704

main61132-12380iAE10#,CE100,104,EE101199106-199505

main61132-13020iAE109,CE10#,EE10#199704-200206

61133BBRACKET, FRONT BODY PILLAR ,OUTER RH

main61133-12190iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109

main61133-12240iAE10#,CE100,104,EE101199106-199505

61134BBRACKET, FRONT BODY PILLAR OUTER, LH

main61133-12190iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109

main61134-12210iAE10#,CE100,104,EE101199106-199505

61175REINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 RH

main61175-12080iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109

main61175-12090iAE10#,CE100,104,EE101199106-199505

61176AREINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 LH

main61176-12080iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109

main61176-12090iAE10#,CE100,104,EE101199106-199505

61211RAIL, ROOF SIDE, OUTER RH

main61211-12300iAE10#,CE100,104,EE101199106-199505

main61211-13050iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109

61212RAIL, ROOF SIDE, OUTER LH

main61212-12300iAE10#,CE100,104,EE101199106-199505

main61212-13050iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109

61231RAIL, ROOF SIDE, INNER RH

main61231-12720iAE100,104..4FC..SEL199106-199505

main61231-12760iAE10#,CE100,104,EE101199106-199505

main61231-13130iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109-200008

sub61231-13131

main61231-13131iAE109,CE10#,EE10#200008

sub61231-13181

main61231-13180iCE102,108,EE104199401-200008

sub61231-13181

main61231-13181iCE102,EE104200008

61232RAIL, ROOF SIDE, INNER LH

main61232-12600iAE10#,CE100,104,EE101199106-199505

main61232-13110iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109-200008

sub61232-13111

main61232-13111iAE109,CE10#,EE10#200008

sub61232-13161

main61232-13160iCE102,108,EE104199401-200008

sub61232-13161

main61232-13161iCE102,EE104200008

61265ACHANNEL, ROOF DRIP SIDE, CENTER RH

main61265-12190iAE10#,CE100,104,EE101199106-199505

main61265-13030iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109

61266ACHANNEL, ROOF DRIP SIDE, CENTER LH

main61266-12190iAE10#,CE100,104,EE101199106-199505

main61266-13030iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109

61267ACHANNEL, ROOF DRIP SIDE, REAR RH

main61267-12140iAE10#,CE100,104,EE101199106-199505

main61267-13040iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109

61268CHANNEL, ROOF DRIP SIDE, REAR LH

main61268-12140iAE10#,CE100,104,EE101199106-199505

main61268-13040iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109

61311BPILLAR, CENTER BODY, OUTER RH

main61311-12190iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109

main61311-12200iAE10#,CE100,104,EE101199106-199505

61312BPILLAR, CENTER BODY, OUTER LH

main61312-12230iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109

main61312-12240iAE10#,CE100,104,EE101199106-199505

61341CPILLAR, CENTER BODY, INNER UPPER RH

main61341-12090iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109-200008

main61341-12100iAE10#,CE100,104,EE101199106-199505

main61341-12130iAE109,CE10#,EE10#200008

61342CPILLAR, CENTER BODY, INNER UPPER LH

main61342-12090iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109-200008

main61342-12100iAE10#,CE100,104,EE101199106-199505

main61342-12130iAE109,CE10#,EE10#200008

61343APILLAR, CENTER BODY, INNER RH

main61343-12090iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109-200008

main61343-12100iAE10#,CE100,104,EE101199106-199505

main61343-12200iAE109,CE10#,EE10#200008

61344APILLAR, CENTER BODY, INNER LH

main61344-12090iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109-200008

main61344-12100iAE10#,CE100,104,EE101199106-199505

main61344-12200iAE109,CE10#,EE10#200008

61411PANEL, ROCKER, OUTER RH

main61411-12530iAE109,CE106,108,109,EE102,103,104,106,107,108199109-199704

main61411-12540iAE10#,CE100,104,EE101199106-199505

main61411-13020iAE109,CE10#,EE10#199704-200008

sub61411-13030

sub90950-01130

sub90950-01826

main61411-13030iAE109,CE10#,EE10#200008

61412PANEL, ROCKER, OUTER LH

main61412-12520iAE109,CE106,108,109,EE102,103,104,106,107,108199109-199704

main61412-12530iAE10#,CE100,104,EE101199106-199505

main61412-13020iAE109,CE10#,EE10#199704-200008

sub61412-13030

sub90950-01130

sub90950-01826

main61412-13030iAE109,CE10#,EE10#200008

61611PANEL, QUARTER, RH

main61601-13370iCE106,EE102,106..MTM..DX199201-199704

sub61601-13371

sub90950-01890

main61601-13371iAE109,EE103..ATM..DX;CE106,107,EE102..(4F,4FC,5F)..DX199704-199708

sub61601-13401

main61601-13400iAE109,CE106,108,109,EE102,103,104,106,107,108199109-199704

sub61601-13401

sub90950-01890

main61601-13401iAE109,CE10#,EE10#199704

main61601-1E916iAE10#,CE100,104,EE101199106-199505

61612PANEL, QUARTER, LH

main61602-13460iCE106,EE102,106..MTM..DX199201-199704

sub61602-13461

sub90950-01890

main61602-13461iCE106,EE102..MTM..DX199704-199708

sub61602-13481

main61602-13480iAE109,CE106,108,109,EE102,103,104,106,107,108199109-199704

sub61602-13481

sub90950-01890

main61602-13481iAE109,CE10#,EE10#199704

main61602-1E925iAE10#,CE100,104,EE101199106-199505

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-12370iAE10#,CE100,104,EE101199106-199505

61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-12370iAE10#,CE100,104,EE101199106-199505

61627BEXTENSION, QUARTER PANEL, UPPER REAR RH

main61627-12080iAE10#,CE100,104,EE101199106-199505

61628BEXTENSION, QUARTER PANEL, UPPER REAR LH

main61628-12100iAE10#,CE100,104,EE101199106-199505

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-12210iAE10#,CE100,104,EE101199106-199505

main61631-13070iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-12210iAE10#,CE100,104,EE101199106-199505

main61632-13060iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-12918iAE10#,CE100,104,EE101..DX,LX,SEG,SEL,XE199106-199505

main61607-12919iAE101..GT199106-199505

main61607-13070iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109

main61607-13120iCE106,EE102,106..MTM..DX199201-200008

main61607-13120iCE107,EE102..(4FC,5F)..DX;AE109,CE106,EE103..ATM..DX199708

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-12916iAE10#,CE100,104,EE101..DX,LX,SEG,SEL,XE199106-199505

main61608-12917iAE101..GT199106-199505

main61608-13070iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109

main61608-13120iCE106,EE102,106..MTM..DX199201-200008

main61608-13120iCE107,EE102..(4FC,5F)..DX;AE109,CE106,EE103..ATM..DX199708

61731BPANEL, ROOF SIDE, INNER RH

main61731-12911iAE10#,CE100,104,EE101199106-199505

main61731-13260iAE109,CE105,106,107,109,EE102,103,106,107199109

main61731-13300iCE102,108,EE104,108199109

sub61731-13260

main61731-13330iCE108,EE104199401

main61731-13330iCE102199804

61732BPANEL, ROOF SIDE, INNER LH

main61732-12911iAE10#,CE100,104,EE101199106-199505

main61732-13260iAE109,CE105,106,107,109,EE102,103,106,107199109

main61732-13310iCE102,108,EE104,108199109

sub61732-13260

main61732-13330iEE106..4F199109-199401

main61732-13340iCE102199804

main61732-13340iCE108,EE104199401

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-12905iAE10#,CE100,104,EE101199106-199505

main61735-13060iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109

61736APANEL, ROOF SIDE, INNER REAR LH

main61736-12906iAE10#,CE100,104,EE101199106-199505

main61736-13060iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109

61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH

main61747-12190iAE10#,CE100,104,EE101199106-199505

61748CBRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH

main61748-12190iAE10#,CE100,104,EE101199106-199505

61824PLATE, NOISE CONTROL, NO.1

main61824-12040iAE10#,CE100,104,EE101199106-199505

61825APLATE, NOISE CONTROL, NO.2

main61825-12010iAE10#,CE100,104,EE101..GT,SEG,SEL,XE199106-199505

61825CPAD, NOISE SHUTTER, NO.2

main61815-32020iCE106,108,109,EE106,107,108199109-199401

main61825-12010iAE10#,CE100,104,EE101199106-199505

61826DPLATE, NOISE CONTROL, NO.3

main61824-12040iAE10#,CE10#,EE10#199106-199401

OD=60

main61827-12030iAE10#,CE100,104,EE101199108-199505

62553DPAD, PILLAR, NO.3

main61667-12050iEE103..XL;EE102,103..(3FC,4F)..(DX,DXJ);AE109,CE106,108,109,EE104,106,107,108199205

150X50X50

main62151-12130iAE100,101,104,CE100,102,104,105,107,EE101199106-200008

85X85X85

main62553-12120iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109-200008

70X70X70

main62553-12120iAE109,CE10#,EE10#200008

main67812-12050iCE106,108,109,EE106,107,108199109-199205

80X80X80

66243CPROTECTOR, REAR BODY, NO.1

main66243-13010iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109

main66243-20010iAE10#,CE100,104,EE101199106-199505

9010508120

main90105-08120

9017908102

main90179-08102

9054111006

main90541-11006

9095001130

main90950-01130

9095001345

main90950-01345

9095001352

main90950-01352

9095001580

main90950-01580

9095001784

main90950-01784

9095001826

main90950-01826

9095001890

main90950-01890
