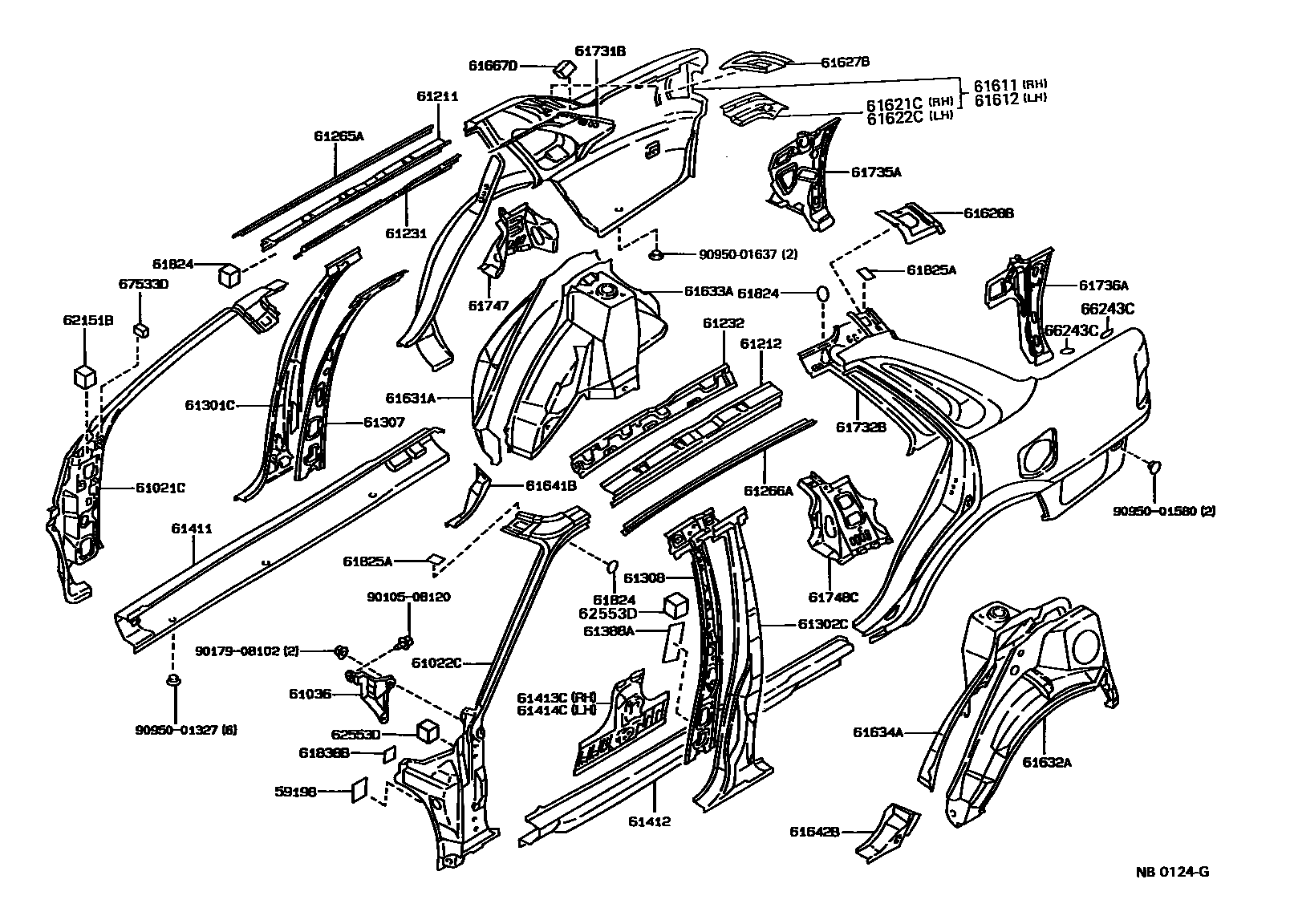

Toyota SPRINTER — SIDE MEMBER

0001 1 0002 1 0003 1 0004 1

59198SEAL, NOISE SHUTTER

main59198-12010iCE95..LX;AE9#,CE90,EE90198705-198911

61021CPILLAR SUB-ASSY, FRONT BODY, RH

main61021-12820iAE9#,CE90,95,EE90..4D,5D198705-199106

main61021-13010iCE96,EE96,98198808-199108

main61021-1A030iAE95..WG198802-199009

61022CPILLAR SUB-ASSY, FRONT BODY, LH

main61022-12830iAE9#,CE90,95,EE90..4D,5D198705-199106

main61022-13010iCE96,EE96,98198808-199108

main61022-1A040iAE95..WG198802-199009

61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH

main61036-12040iAE95..5F..AV2;AE9#,CE9#,EE9#..AV1,DX,G,GT,L,LX,MX,RVS,SE,STD,XI,XL,XS198705-198908

61211RAIL, ROOF SIDE, OUTER RH

main61211-12230iAE9#,CE90,95,EE90..4D,5D198705-199106

main61211-12270iAE95..WG198802-199009

main61211-13040iCE96,EE96,98198808

61212RAIL, ROOF SIDE, OUTER LH

main61212-12230iAE9#,CE90,95,EE90..4D,5D198705-199106

main61212-12270iAE95..WG198802-199009

main61212-13040iCE96,EE96,98198808

61231RAIL, ROOF SIDE, INNER RH

main61231-12450iAE9#,CE90,95,EE90..4D,5D198705-199106

main61231-12660iAE95..WG198802-199009

main61231-13060iCE96,EE96,98198808

61232RAIL, ROOF SIDE, INNER LH

main61232-12360iAE9#,CE90,95,EE90..4D,5D198705-199106

main61232-12530iAE95..WG198802-199009

main61232-13040iCE96,EE96,98198808

61265ACHANNEL, ROOF DRIP SIDE, CENTER RH

main61265-12120iAE9#,CE90,95,EE90..4D198705-199106

main61265-12160iAE91,92..5D198705-199106

main61265-12170iAE95..WG198802-199009

main61265-13020iCE96,EE96,98198808

61266ACHANNEL, ROOF DRIP SIDE, CENTER LH

main61266-12120iAE9#,CE90,95,EE90..4D198705-199106

main61266-12160iAE91,92..5D198705-199106

main61266-12170iAE95..WG198802-199009

main61266-13020iCE96,EE96,98198808

61301CPILLAR SUB-ASSY, CENTER BODY, OUTER RH

main61301-12190iAE91..XI;AE91..CBR;AE92,95,CE9#,EE9#198705-198905

61302CPILLAR SUB-ASSY, CENTER BODY, OUTER LH

main61302-12250iAE91..XI;AE91..CBR;AE92,95,CE9#,EE9#198705-198905

61307PILLAR SUB-ASSY, CENTER BODY, INNER RH

main61307-12020iAE91..XI;AE91..CBR;AE92,95,CE90,EE90..4D,5D198705-198905

main61307-13010iAE95..WG198802-199009

main61307-13030iCE96,EE96,98198808-199108

sub61307-13020

61308PILLAR SUB-ASSY, CENTER BODY, INNER LH

main61308-12020iAE91..XI;AE91..CBR;AE92,95,CE90,EE90..4D,5D198705-198905

main61308-13020iAE95..WG198802-199009

main61308-13040iCE96,EE96,98198808-199108

sub61308-13030

61388APLATE, CENTER BODY PILLAR END, RH

main61388-12010×2iCE95..LX;AE9#,CE90,EE90198705-198911

61411PANEL, ROCKER, OUTER RH

main61411-12370iAE9#,CE9#,EE9#198705-199108

61412PANEL, ROCKER, OUTER LH

main61412-12360iAE9#,CE9#,EE9#198705-199108

61413CREINFORCEMENT, ROCKER PANEL, NO.2 RH

main61413-12040iAE9#,CE9#,EE9#198705-199108

61414CREINFORCEMENT, ROCKER PANEL, NO.2 LH

main61414-12060iAE9#,CE9#,EE9#198705-199108

61611PANEL, QUARTER, RH

main61601-13905iCE96,EE96,98198808-198908

sub61525-13010

main61601-13908iCE96,EE96,98198908-199108

main61601-1E900iAE91..5D198705-199106

main61601-1E901iAE91..G,XI,XS198705-199106

main61601-1E908iAE9#,CE90,95,EE90..4D198705-199106

main61601-1E909iAE95..WG198802-199009

61612PANEL, QUARTER, LH

main61602-13903iCE96,EE96,98198808-198908

sub61526-13010

main61602-13904iCE96,EE96,98..XL198808-198908

sub61526-13010

main61602-13911iCE96,EE96,98..CTD,DX198908-199108

main61602-13912iCE96,EE96,98..XL198908-199108

main61602-1E900iAE91..5D198705-199106

main61602-1E902iAE91..G,XI,XS198705-199106

main61602-1E914iAE91,CE90,EE90..DX198705-199106

main61602-1E915iAE9#,CE90,95,EE90..4D..(GT,LX,MX,SE)198705-199106

main61602-1E916iAE95..AV2,RVS198802-198908

main61602-1E918iAE95..AV1198802-198908

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-12290iAE9#,CE90,EE90..4D198705-198905

main61621-12291iAE9#,CE90,95,EE90..4D198910-199106

61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-12290iAE9#,CE90,EE90..4D198705-198905

main61622-12291iAE9#,CE90,95,EE90..4D198910-199106

61627BEXTENSION, QUARTER PANEL, UPPER REAR RH

main61627-12030iAE9#,CE90,95,EE90..4D198705-199106

61628BEXTENSION, QUARTER PANEL, UPPER REAR LH

main61628-12050iAE9#,CE90,95,EE90..4D198705-199106

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-12230iAE9#,CE90,95,EE90..4D,5D198705-199106

main61631-13040iCE96,EE96,98198808-199108

main61631-13060iAE95..WG198802-199009

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-12230iAE91,92,CE90,EE90198705-199106

main61632-12270iAE95..WG198802-199009

main61632-12280iAE95,CE95..4D198710-199106

main61632-13030iCE96,EE96,98198808-199108

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-12190iAE91..L198705-199106

sub61607-12210

main61607-12200iAE91,92..5D..(G,GT,XI,XS)198705-199106

sub61607-12220

main61607-12400iAE95..WG198802-199009

main61607-12906iAE92..4D198705-199106

main61607-12907iAE91,CE90,EE90..4D198705-199106

main61607-12912iAE95,CE95..4D198710-199106

main61607-13030iCE96,EE96,98198808-199108

main61607-13040iCE96,EE96..MTM..DX199003-199108

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-12200iAE91..L198705-199106

sub61608-12220

main61608-12210iAE91,92..5D..(G,GT,XI,XS)198705-199106

sub61608-12230

main61608-12420iAE95..WG198802-199009

main61608-12904iAE92..4D198705-199106

main61608-12905iAE91,CE90,EE90..4D198705-199106

main61608-12910iAE95,CE95..4D198710-199106

main61608-13030iCE96,EE96,98198808-199108

main61608-13040iCE96,EE96..MTM..DX199003-199108

61641BGUSSET, QUARTER WHEEL HOUSE, RH

main61641-12040iAE9#,CE9#,EE9#198705-199108

61642BGUSSET, QUARTER WHEEL HOUSE, LH

main61642-12040iAE9#,CE9#,EE9#198705-199108

61667DSEAL, QUARTER PANEL

main61667-12060×2iAE9#,CE90,95,EE90..4D198705-199106

61731BPANEL, ROOF SIDE, INNER RH

main61731-12430iAE9#,CE90,95,EE90..4D198705-199106

main61731-12440iAE91,92..5D198705-199106

main61731-12490iAE95..WG198802-199009

main61731-13240iCE96,EE96,98198808-199108

61732BPANEL, ROOF SIDE, INNER LH

main61732-12390iAE9#,CE90,95,EE90..4D198705-199106

main61732-12400iAE91,92..5D198705-199106

main61732-12450iAE95..WG198802-199009

main61732-13240iCE96,EE96,98198808-199108

61735APANEL, ROOF SIDE, INNER REAR RH

main61705-12949iAE91,92..5D198705-199106

main61735-12290iAE95..WG198802-199009

main61735-12900iAE9#,CE90,95,EE90..4D198705-199106

main61735-13040iCE96,EE96,98198808-199108

61736APANEL, ROOF SIDE, INNER REAR LH

main61706-12954iAE91,92..5D198705-199106

main61736-12260iAE95..WG198802-199009

main61736-12900iAE91,92,CE90,EE90..4D198705-199106

main61736-12903iAE95,CE95..4D198710-199106

main61736-13040iCE96,EE96,98198808-199108

61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH

main61747-12110iAE9#,CE90,95,EE90..4D198705-199106

main61747-12140iAE91,92..5D198705-199106

main61747-12160iAE95..WG198802-199009

61748CBRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH

main61748-12110iAE9#,CE90,95,EE90..4D198705-199106

main61748-12140iAE91,92..5D198705-199106

main61748-12160iAE95..WG198802-199009

61824PLATE, NOISE CONTROL, NO.1

main61824-12020×2iAE91,92..5D198705-198905

main61824-12040×6iAE95..WG198808-199009

61825APLATE, NOISE CONTROL, NO.2

main61825-12010×4iAE9#,CE90,95,EE90..4D198705-199106

61838BPLATE, NOISE CONTROL, NO.5

main61838-12010×2iCE95..LX;AE9#,CE90,EE90198705-198911

62151BPAD, COWL SIDE SILENCER

main62151-12100×4iCE95..LX;AE9#,CE90,EE90198705-198911

62553DPAD, PILLAR, NO.3

main62553-12120×2iCE95..LX;AE9#,CE90,EE90198705-198911

66243CPROTECTOR, REAR BODY, NO.1

main53393-12020×2iCE96,EE96,98198908-199108

main66243-20010×4iAE9#,CE90,EE90..4D,5D198905-198909

67533DPAD, FRONT DOOR LOWER FRAME GARNISH, RH

main67533-12010×2iCE95..LX;AE9#,CE90,EE90198705-198911

9010508120

main90105-08120

9017908102

main90179-08102

9095001327

main90950-01327

9095001580

main90950-01580

9095001637

main90950-01637

50 parts on this diagram · 4 diagrams in section
