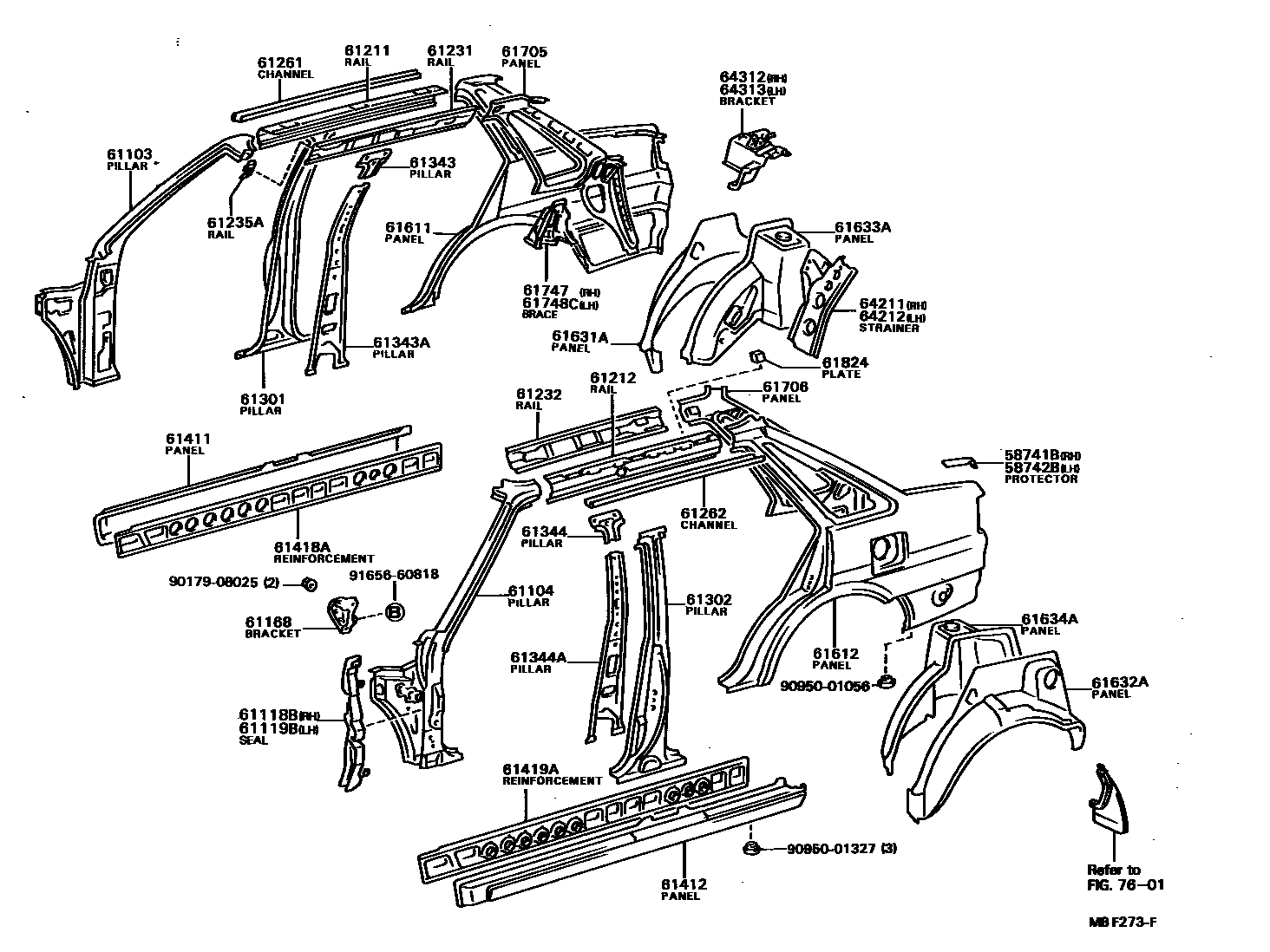

Toyota SPRINTER — SIDE MEMBER

0001 1 0002 1

58741BPROTECTOR, QUARTER PANEL, RH

main58741-12030iAE82..GT198505-198704

58742BPROTECTOR, QUARTER PANEL, LH

main58742-12030iAE82..GT198505-198704

61103PILLAR SUB-ASSY, FRONT BODY, RH

main61021-12460iAE80,81,CE80198305-198505

main61021-12470iAE80,81,EE80..4D..XL198401-198608

W/*PW OR ELECTRIC *DM

main61021-12530iAE81..4D..3FC..XL198511-198704

*TECS1,W/ELECTRIC *FM

main61021-12590iAE81..3FC..XL198308-198505

*TECS1

main61021-12610iAE81..4D..3FC..XL198401-198608

*TECS1,W/ELECTRIC *DM

61104PILLAR SUB-ASSY, FRONT BODY, LH

main61022-12520iAE80,81,CE80198305-198505

main61022-12530iAE80,81,EE80..4D..XL198401-198608

W/*PW & ELECTRIC *DM

61118BSEAL, FRONT BODY PILLAR TO FRONT FENDER, RH

main61118-12020iAE8#,CE80,EE80198602-198704

61119BSEAL, FRONT BODY PILLAR TO FRONT FENDER, LH

main61119-12020iAE8#,CE80,EE80198602-198704

61168BRACKET, INSTRUMENT PANEL TO COWL SIDE, LH

main61036-12030iAE8#,CE80,EE80198305-198704

61211RAIL, ROOF SIDE, OUTER RH

main61211-12200iAE8#,CE80,EE80198305-198704

61212RAIL, ROOF SIDE, OUTER LH

main61212-12200iAE8#,CE80,EE80198305-198704

61231RAIL, ROOF SIDE, INNER RH

main61231-12370iAE8#,CE80,EE80198305-198512

W/O SUN ROOF

main61231-12380iAE81,82,CE80..SX,ZX198305-198512

W/SUN ROOF

main61231-12550iAE81..4D..3FC..XL198308-198704

*TECS1

61232RAIL, ROOF SIDE, INNER LH

main61232-12270iAE8#,CE80,EE80198305-198512

W/O SUN ROOF

main61232-12280iAE81,82,CE80..SX,ZX198305-198512

W/SUN ROOF

61235ARAIL, ROOF SIDE, INNER NO.3 RH

main61235-12050iAE81..4D..3FC..XL198308-198704

*TECS1

61261CHANNEL, ROOF DRIP, RH

main61265-12070iAE8#,CE80,EE80..4D198305-198704

main61265-12080iAE81,82,CE80,EE80..5D198305-198704

61262CHANNEL, ROOF DRIP, LH

main61266-12070iAE8#,CE80,EE80..4D198305-198704

main61266-12080iAE81,82,CE80,EE80..5D198305-198704

61301PILLAR SUB-ASSY, CENTER BODY, RH

main61301-12150iAE82..GT,SR,SX198305-198411

main61301-12160iAE82..GT198410-198411

W/*PW

61302PILLAR SUB-ASSY, CENTER BODY, LH

main61302-12180iAE80,81,CE80198305-198505

main61302-12190iAE82..ZX198305-198505

61343PILLAR, CENTER BODY, INNER UPPER RH

main61341-12060iAE8#,CE80,EE80198305-198704

61343APILLAR, CENTER BODY, INNER RH

main61343-12900iAE8#,CE80,EE80198305-198704

61344PILLAR, CENTER BODY, INNER UPPER LH

main61342-12060iAE8#,CE80,EE80198305-198704

61344APILLAR, CENTER BODY, INNER LH

main61344-12900iAE8#,CE80,EE80198305-198704

61411PANEL, ROCKER, OUTER RH

main61411-12290iAE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX198305-198704

main61411-12340iAE82..GT198410-198704

61412PANEL, ROCKER, OUTER LH

main61412-12290iAE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX198305-198704

sub61412-12300

main61412-12330iAE82..GT198410-198704

61418AREINFORCEMENT, ROCKER PANEL, RH

main61418-12070iAE8#,CE80,EE80198305-198704

61419AREINFORCEMENT, ROCKER PANEL, LH

main61419-12070iAE8#,CE80,EE80198305-198704

61611PANEL, QUARTER, RH

main61601-12915iAE8#,CE80,EE80..5D198505-198704

main61601-1A820iAE8#,CE80,EE80..4D..(DX,SE,SPD,SR,XL)198305-198704

main61601-1A860iAE81,82,CE80..5D198305-198505

main61601-1E210iAE82..GT198410-198704

61612PANEL, QUARTER, LH

main61602-12921iAE8#,CE80,EE80..5D198505-198704

main61602-1A440iAE80,81,CE80,EE80..DX,SPD198305-198704

W/O FUEL LID OPENER

main61602-1A450iAE80,CE80..DX,SE,XL198305-198401

W/FUEL LID OPENER

main61602-1A510iAE81,82,CE80..5D198305-198505

main61602-1A810iAE82..GT198410-198704

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-12160iAE8#,CE80,EE80..DX,SE,SPD,XL,ZX198508-198704

main61631-12170iAE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX198305-198508

main61631-12180iAE82..GT198410-198704

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-12160iAE8#,CE80,EE80..DX,SE,SPD,XL,ZX198508-198704

main61632-12170iAE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX198305-198508

main61632-12180iAE82..GT198410-198704

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-12900iAE80,81,CE80..DX,SPD,XL198305-198505

main61607-12901iAE82..GT198505-198704

main61607-12902iAE81,82,CE80..SX198305-198505

W/O *FFS

main61607-12903iAE81,82,CE80..5D198401-198505

W/*FFS

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-12900iAE80,81,CE80..DX,SPD,XL198305-198505

main61608-12901iAE82..GT198505-198704

main61608-12902iAE81,82,CE80..SX198305-198505

W/O *FFS

main61608-12903iAE81,82..ZX198305-198401

61705PANEL SUB-ASSY, ROOF SIDE, INNER RH

main61705-12941iAE81,82,CE80,EE80..5D198305-198704

sub61705-12943

main61705-12945iAE8#,CE80,EE80..4D198305-198704

61706PANEL SUB-ASSY, ROOF SIDE, INNER LH

main61706-12943iAE81,82,CE80,EE80..5D198305-198704

sub61706-12945

main61706-12947iAE8#,CE80,EE80..4D198305-198704

61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH

main61747-12070iAE8#,CE80,EE80198305-198704

61748CBRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH

main61748-12070iAE8#,CE80,EE80198305-198704

61824PLATE, NOISE CONTROL, NO.1

main61824-12010×4iAE8#,CE80,EE80198305-198704

sub62939-23010

64211STRAINER, PACKAGE TRAY TO FLOOR, RH

main64211-12060iAE8#,CE80,EE80..4D198305-198704

64212STRAINER, PACKAGE TRAY TO FLOOR, LH

main64212-12060iAE8#,CE80,EE80..4D198305-198704

64312BRACKET, PACKAGE TRAY, RH

main64312-12901iAE8#,CE80,EE80..4D198305-198704

64313BRACKET, PACKAGE TRAY, LH

main64313-12901iAE8#,CE80,EE80..4D198305-198704

7601

9017908025

main90179-08025

9095001056

main90950-01056

9095001327

main90950-01327

9165660818

main91656-60818

44 parts on this diagram · 2 diagrams in section
