Toyota SPRINTER — SHORT BLOCK ASSEMBLY

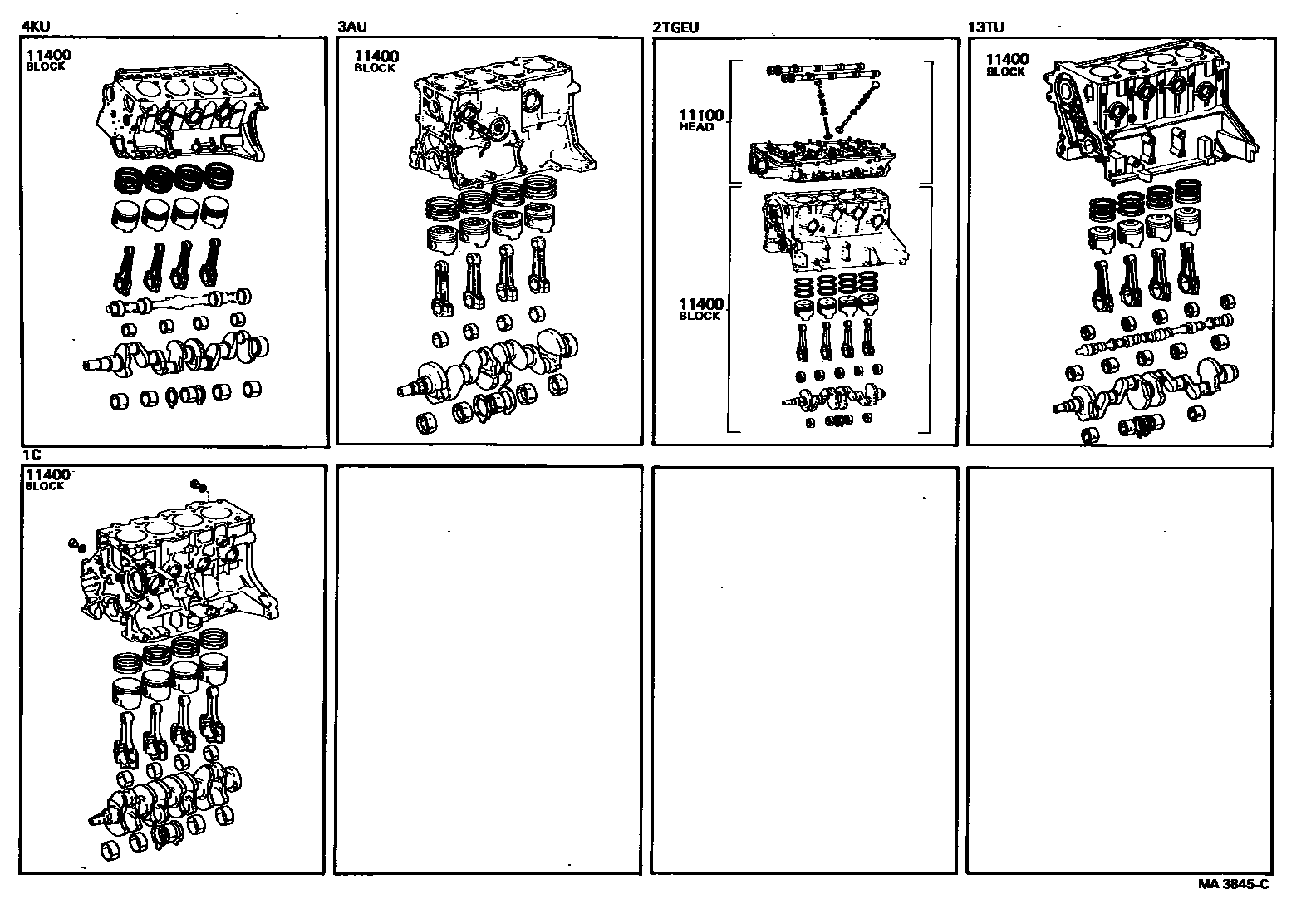

Parts diagram
11100HEAD ASSY, SHORT
main11100-27031i197903-198108
main11100-27040i198108-198304
11400BLOCK ASSY, SHORT
main11400-13010i197903-198108
sub11400-13011
main11400-13020i198108-198207
main11400-13030i198207-198304
sub11400-13031
main11400-15020i197903-198303
main11400-15040i198303-198304
sub11400-15041
main11400-18011i197908-198108
main11400-27051i197903-198108
main11400-27090i198108-198207
main11400-27091i198207-198304
main11400-64020i198202-198303
sub15677-64030
sub15691-64020
sub90404-19004
main11400-64021i198303-198304
sub11400-64022
sub11115-64050

2 parts on this diagram · 1 diagram in section
