EPC Data

Toyota SPRINTER — SHORT BLOCK ASSEMBLY

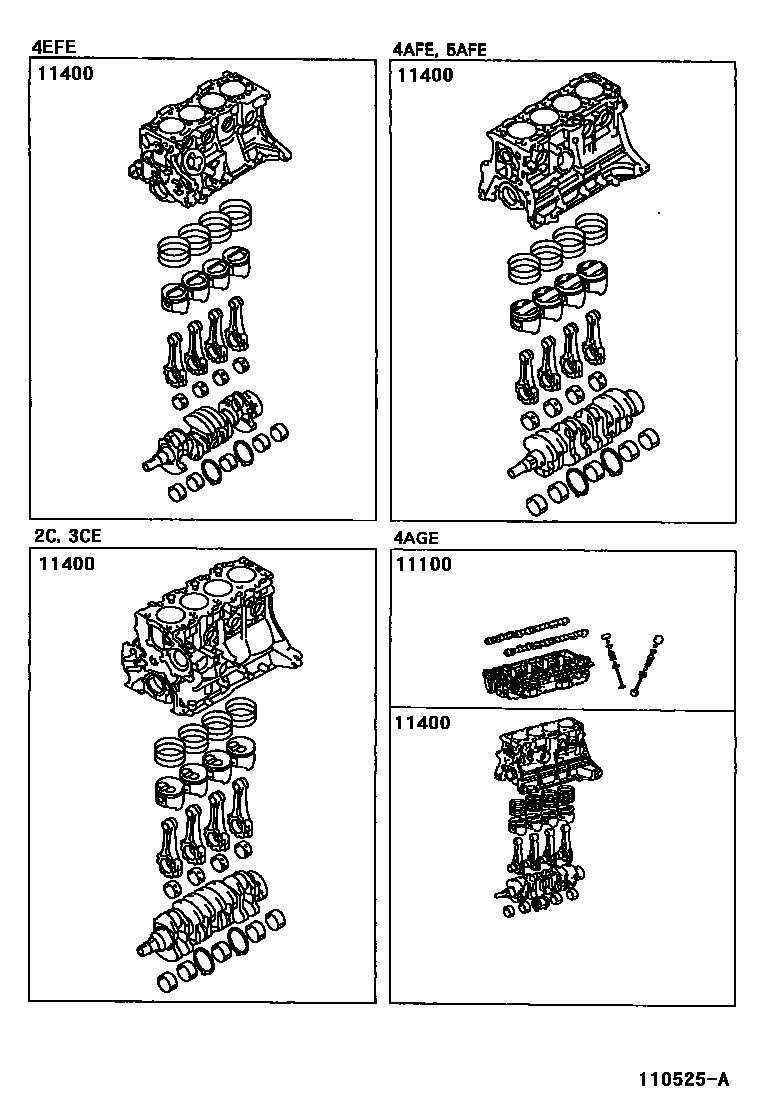

Parts diagram
11100HEAD ASSY, SHORT
main11100-16020i199704-200008
11400BLOCK ASSY, SHORT
main11400-11140i199505-199605
main11400-11141i199605-199704
main11400-11181i199704-200008
main11400-16310i199505-199704
sub11400-16331
main11400-16320i199505-199704
main11400-16400i199704-200008
main11400-16410i199505-199704
main11400-16450i199704-200008
main11400-64480i199505-199704
sub11115-64170
main11400-64481i199704-199804
sub11400-64482
sub90105-16064
sub90560-16025
main11400-64490i199704-199804
sub11400-64491
sub90105-16064
sub90560-16025
main11400-64590i199804-199808
sub90105-16064
sub90560-16025
main11400-64591i199808-199901
sub11381-64020
main11400-64592i199901-200008
sub11400-64620
main11400-64600i199804-199808
sub90105-16064
sub90560-16025
main11400-64601i199808-199901
sub11381-64020
main11400-64602i199901-200008

2 parts on this diagram · 1 diagram in section
