Toyota SPRINTER — SHORT BLOCK ASSEMBLY

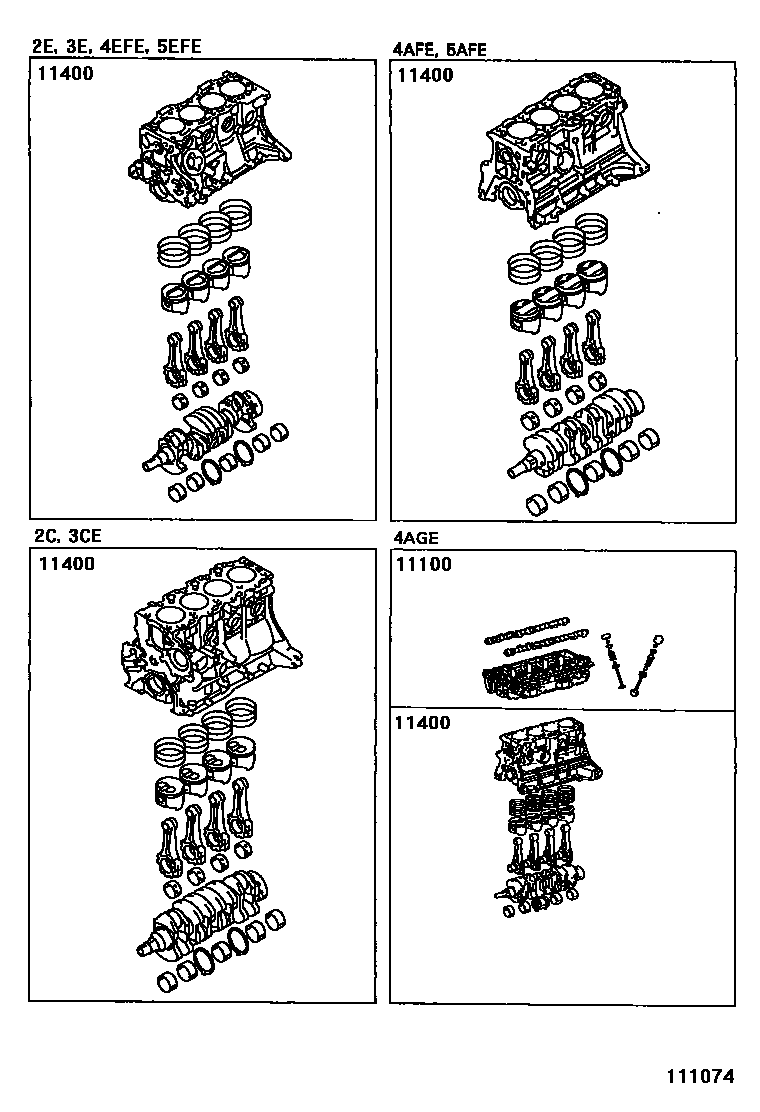

Parts diagram

11100HEAD ASSY, SHORT

main11100-16010i199106-199505

11400BLOCK ASSY, SHORT

main11400-11011i199109-199204

main11400-11012i199204-199307

main11400-11013i199307-199401

main11400-11060i199109-199307

main11400-11061i199307-199401

main11400-11090i199106-199307

main11400-11091i199307-199407

main11400-11092i199407-199605

main11400-11093i199605-199704

main11400-11121i199401-199407

main11400-11122i199407-199704

main11400-11150i199704

main11400-11181i199704

main11400-16300i199106-199505

main11400-16310i199106-199505

main11400-16320i199109-199704

main11400-16340i199106-199505

main11400-16450i199704

main11400-64370i199106-199504

main11400-64380i199109-199504

main11400-64480i199504-199704

main11400-64481i199704-199804

main11400-64490i199504-199804

main11400-64590i199804-199808

main11400-64591i199808-199901

main11400-64592i199901

main11400-64600i199804-199808

main11400-64601i199808-199901

main11400-64602i199901

2 parts on this diagram · 1 diagram in section

SHORT BLOCK ASSEMBLY for Toyota SPRINTER

This section contains 2 genuine Toyota parts for the SHORT BLOCK ASSEMBLY system of the Toyota SPRINTER. Key components include: HEAD ASSY, SHORT, BLOCK ASSY, SHORT.
