Toyota SPRINTER — SHORT BLOCK ASSEMBLY

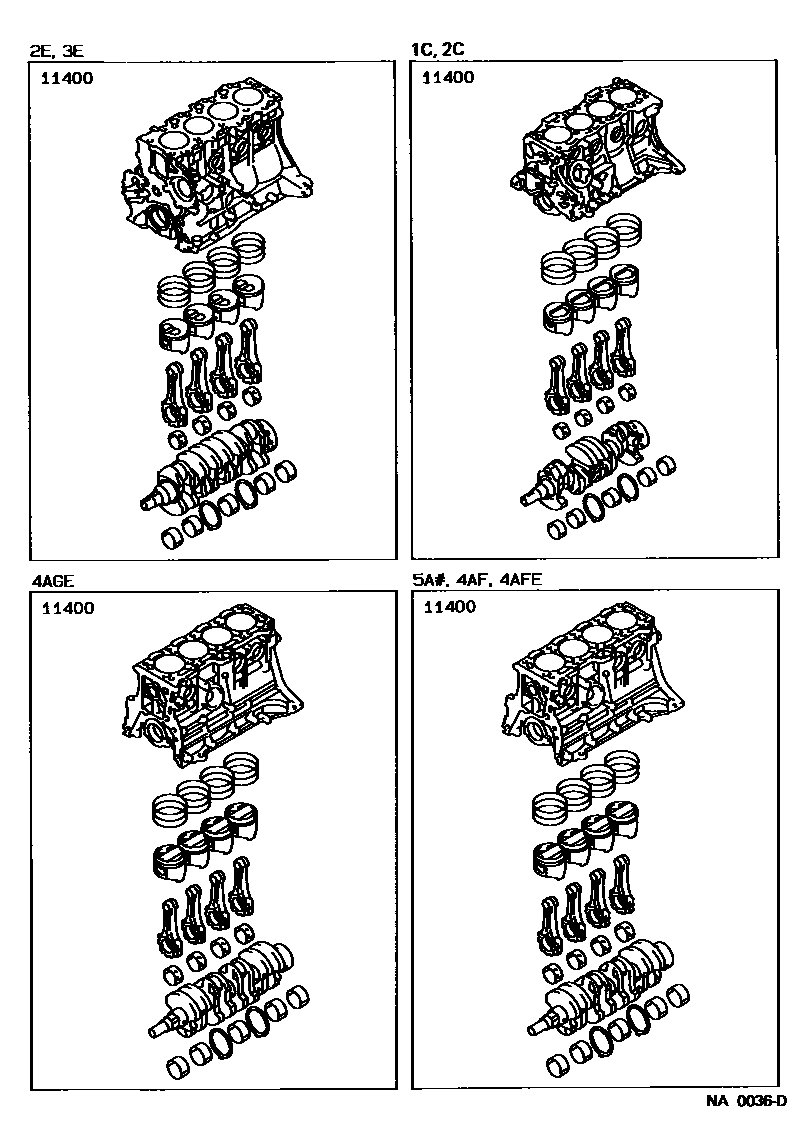

Parts diagram
11400BLOCK ASSY, SHORT
main11400-11011i198705-199108
sub11400-11012
main11400-11060i198808-199108
sub11400-11061
sub90345-52001
main11400-15070i198705-199107
main11400-15080i198905-199106
main11400-16120i198705-198905
sub11400-16121
main11400-16170i198908-198911
main11400-16171i198911-199004
main11400-16172i199004-199104
main11400-16173i199104-199106
sub11400-16243
main11400-16250i198905-199101
main11400-16251i199101-199106
sub11400-16261
main11400-64101i198905-198908
sub11400-64103
sub90105-16064
sub90560-16025
main11400-64111i198705-198905
sub11400-64113
sub90105-16064
sub90560-16025
main11400-64280i198905-199106
sub11400-64281
sub13521-64011
main11400-64290i198908-199108
sub11400-64291
sub13521-64011
main11400-64300i198910-199106
sub11400-64301
sub13521-64011

1 parts on this diagram · 1 diagram in section
