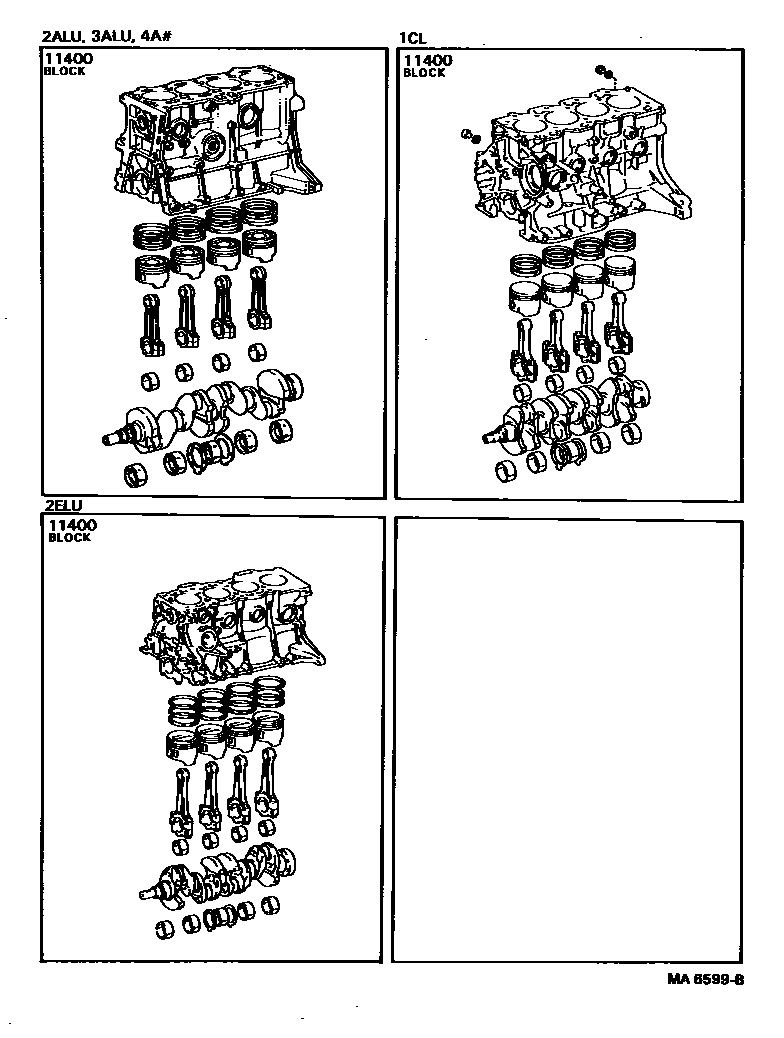

Toyota SPRINTER — SHORT BLOCK ASSEMBLY

Parts diagram
11400BLOCK ASSY, SHORT
main11400-11010i198505-198508
sub90105-10144
sub90387-11035
main11400-11011i198508-198704
sub11400-11012
main11400-11020i198505-198508
*52
sub90105-10144
sub90387-11035
main11400-11021i198508-198704
*52
sub11400-11022
main11400-14030i198305-198505
sub11400-14031
main11400-15040i198305-198704
sub11400-15041
main11400-16020i198305-198704
sub11400-16030
main11400-16040i198410-198704
sub11400-16041
main11400-64021i198305-198307
sub11115-64050
main11400-64022i198307-198505
sub11400-64024
sub90105-16064
sub90560-16025
main11400-64080i198305-198505
sub11400-64081
sub90105-16064
sub90560-16025
main11400-64100i198505-198608
sub11400-64102
sub90105-16064
sub90560-16025
main11400-64101i198608-198704
sub11400-64103
sub90105-16064
sub90560-16025
main11400-64110i198505-198608
sub11400-64112
sub90105-16064
sub90560-16025
main11400-64111i198608-198704
sub11400-64113
sub90105-16064
sub90560-16025
