Toyota SPRINTER — ROOF SIDE VENTILATOR

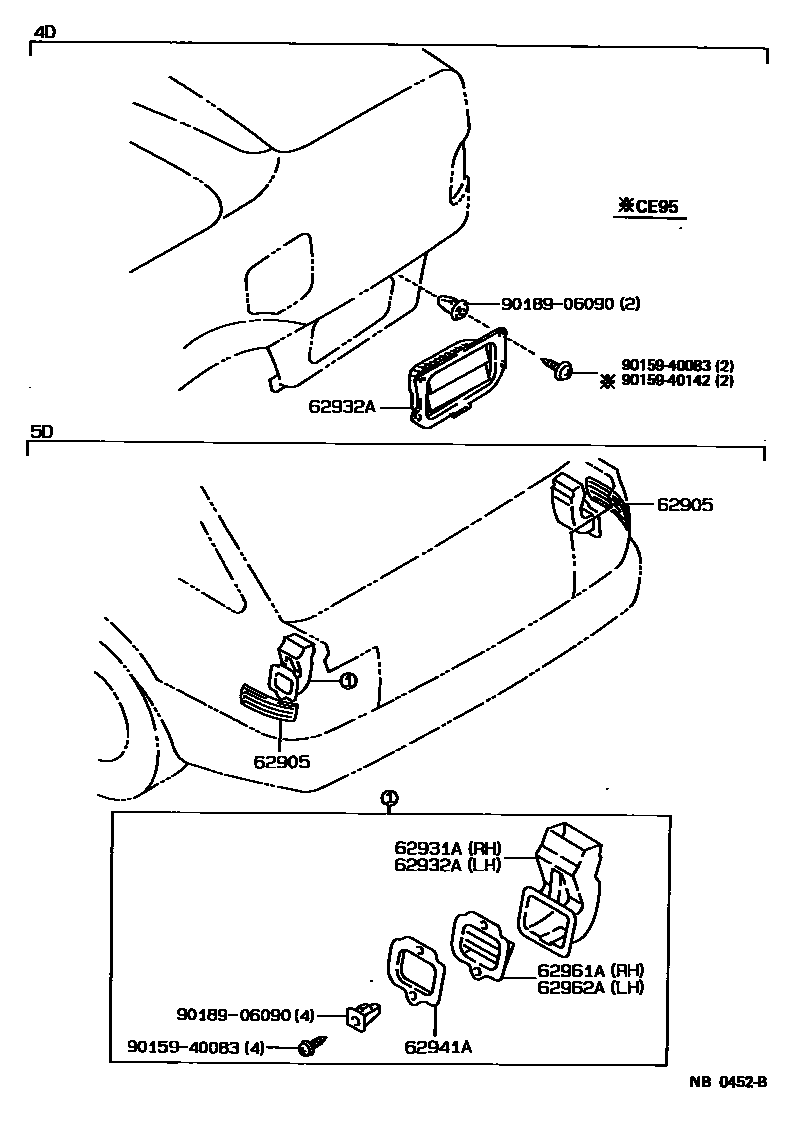

Parts diagram

62905LOUVER, QUARTER VENTILATION

main62905-13050i198808-199108

main62906-13050i198808-199108

main62951-12440i198705-198905

main62951-12450i198905-199106

main62952-12360i198705-198905

main62952-12370i198905-199106

62931ADUCT, QUARTER VENT, RH

main62932-12210i198705-199106

62932ADUCT, QUARTER VENT, LH

main62932-12210i198705-199106

main62940-12100i198705-199106

62941ARETAINER, QUARTER VENT DUCT

main62941-12110i198802-199009

main62942-12080×2i198705-199106

main62942-12090i198802-199009

62961AGRILLE, ROOM VENT, RH

main62961-12020i198705-199106

62962AGRILLE, ROOM VENT, LH

main62961-12020i198705-199106

9015940083

main90159-40083

9015940142

main90159-40142

9018906090

main90189-06090

9 parts on this diagram · 3 diagrams in section

ROOF SIDE VENTILATOR for Toyota SPRINTER

This section contains 22 genuine Toyota parts for the ROOF SIDE VENTILATOR system of the Toyota SPRINTER. Key components include: VALVE ASSY, ROOM PRESSURE RELIEF, RH, VALVE ASSY, ROOM PRESSURE RELIEF, LH, LOUVER, QUARTER VENTILATION, DUCT ASSY, QUARTER VENT, RH, DUCT, QUARTER VENT, RH.
