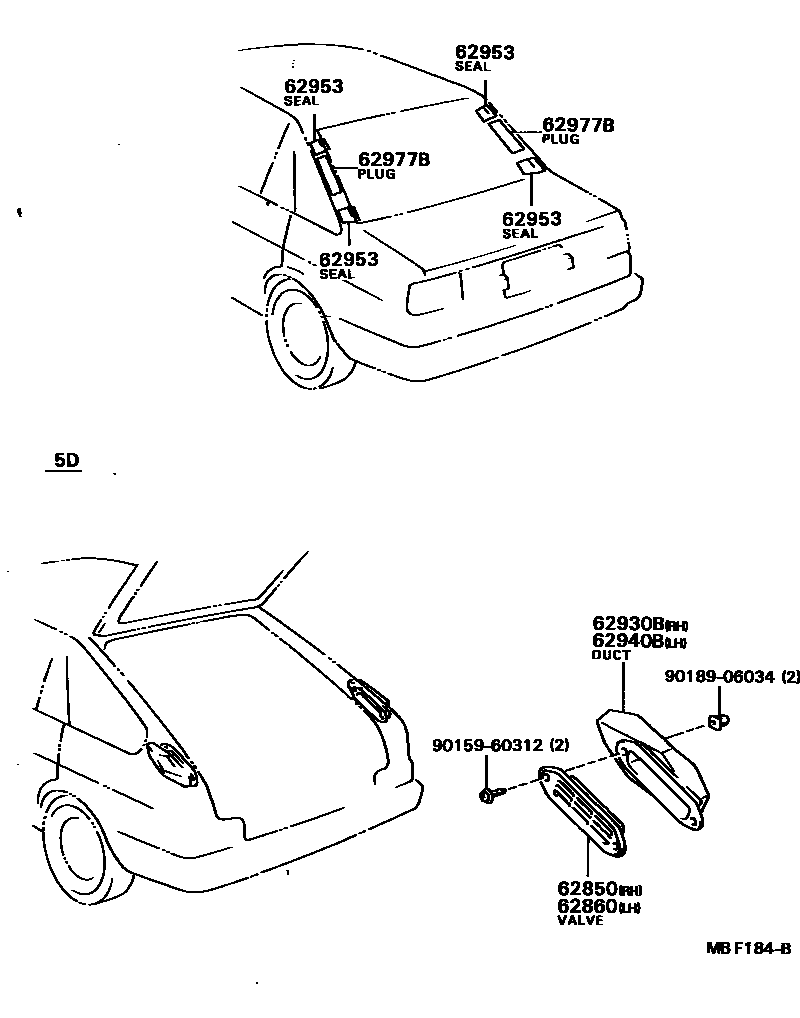

Toyota SPRINTER — ROOF SIDE VENTILATOR
62850VALVE ASSY, ROOM PRESSURE RELIEF, RH
62860VALVE ASSY, ROOM PRESSURE RELIEF, LH
62930BDUCT ASSY, QUARTER VENT, RH
62940BDUCT ASSY, QUARTER VENT, LH
62953SEAL, QUARTER VENT DUCT, NO.1
62977BPLUG, ROOF SIDE DUST, NO.1
9015960312
main90159-60312
9018906034
main90189-06034
8 parts on this diagram · 1 diagram in section
ROOF SIDE VENTILATOR for Toyota SPRINTER
This section contains 8 genuine Toyota parts for the ROOF SIDE VENTILATOR system of the Toyota SPRINTER. Key components include: VALVE ASSY, ROOM PRESSURE RELIEF, RH, VALVE ASSY, ROOM PRESSURE RELIEF, LH, DUCT ASSY, QUARTER VENT, RH, DUCT ASSY, QUARTER VENT, LH, SEAL, QUARTER VENT DUCT, NO.1.
