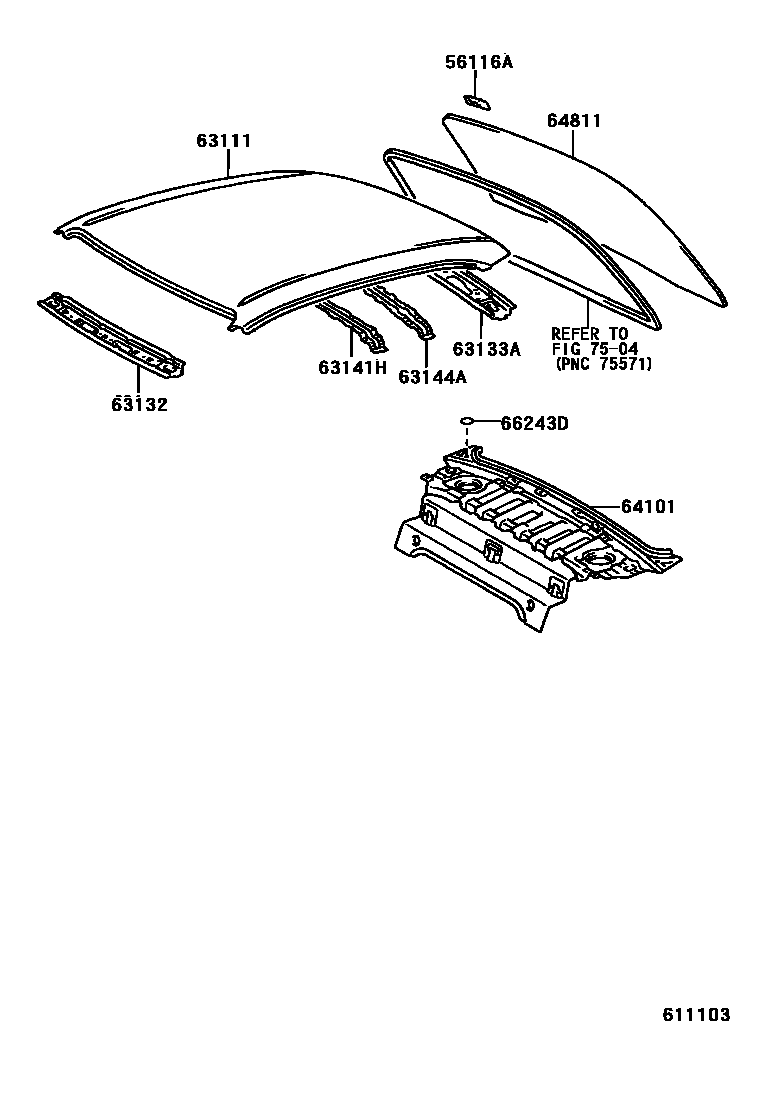

Toyota SPRINTER — ROOF PANEL & BACK WINDOW GLASS

56116ASPACER, WINDSHIELD GLASS

main56116-16050×2i199505-199704

63111PANEL, ROOF

main63111-12670i199704-200008

63132PANEL, WINDSHIELD HEADER, INNER

main63102-12140i199704-200008

main63132-12210i199704-200008

63133AFRAME, BACK WINDOW, UPPER

main63133-12230i199505-199704

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-12200i199505-199704

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-12050i199505-199704

64101PANEL SUB-ASSY, UPPER BACK

main64101-12570i199505-199704

main64101-12670i199704-200008

main64101-12680i199704-200008

64811GLASS, BACK WINDOW

main64811-1A890i199505-199704

main64811-1E010i199505-199704

main64811-1E140i199704-200008

main64811-1E150i199704-200008

main64811-1E190i199704-200008

main64811-1E200i199704-200008

main64811-1E210i200004-200008

66243DPROTECTOR, REAR BODY, NO.1

main66243-20010×2i199505-199704

main90950-06123×2i199812-200008

7504REAR MOULDING

→ Go to FIG 75-04

10 parts on this diagram · 1 diagram in section

ROOF PANEL & BACK WINDOW GLASS for Toyota SPRINTER

This section contains 10 genuine Toyota parts for the ROOF PANEL & BACK WINDOW GLASS system of the Toyota SPRINTER. Key components include: SPACER, WINDSHIELD GLASS, PANEL, ROOF, PANEL, WINDSHIELD HEADER, INNER, FRAME, BACK WINDOW, UPPER, REINFORCEMENT, ROOF PANEL, CENTER.
