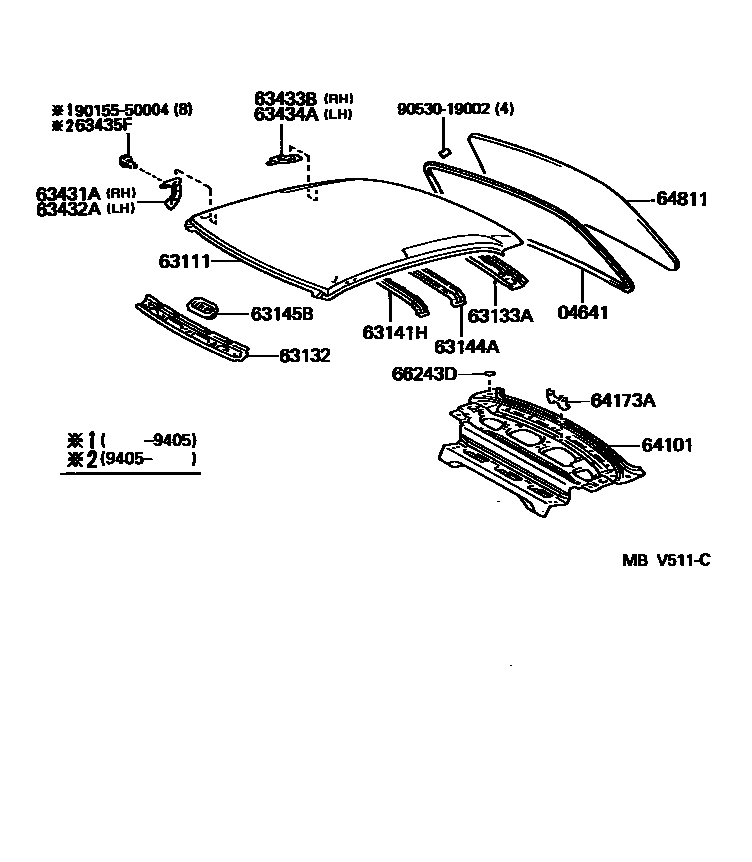

Toyota SPRINTER — ROOF PANEL & BACK WINDOW GLASS

04641DAM KIT, BACK WINDOW GLASS

main04562-12010i199106-199505

63111PANEL, ROOF

main63111-12550i199305-199505

main63111-12921i199106-199305

main63111-13170i199401-200008

main63111-13171i200008

main63111-13190i199109-200008

main63111-13191i200008

63132PANEL, WINDSHIELD HEADER, INNER

main63102-13020i199109

main63132-12180i199106-199505

63133AFRAME, BACK WINDOW, UPPER

main63133-12200i199106-199505

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-12170i199106-199505

main63141-13060i199109-200008

main63141-13061i200008

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-12030i199106-199505

63145BREINFORCEMENT, WINDSHIELD HEADER PANEL

main63145-12100i199106-199505

63431ABRACKET, ROOF INNER RACK, NO.1 RH

main63431-12020i199106-199505

63432ABRACKET, ROOF INNER RACK, NO.1 LH

main63432-12020i199106-199505

63433BBRACKET, ROOF INNER RACK, NO.2 RH

main63433-12020i199106-199505

63434ABRACKET, ROOF INNER RACK, NO.2 LH

main63434-12020i199106-199505

63435FSEAL, ROOF CARRIER, NO.1

main63435-12030×8i199405-199505

64101PANEL SUB-ASSY, UPPER BACK

main64101-12480i199106-199505

main64101-12490i199106-199505

64173ABRACKET, HIGH MOUNTING STOP LAMP

main64173-12060i199106-199505

64811GLASS, BACK WINDOW

main64811-1A500i199305-199505

main64811-1A510i199106-199205

main64811-1A520i199106-199305

main64811-1A540i199106-199205

main64811-1A550i199205-199505

66243DPROTECTOR, REAR BODY, NO.1

main66243-20010×2i199106-199505

9015550004

main90155-50004

9053019002

main90530-19002

18 parts on this diagram · 4 diagrams in section

ROOF PANEL & BACK WINDOW GLASS for Toyota SPRINTER

This section contains 56 genuine Toyota parts for the ROOF PANEL & BACK WINDOW GLASS system of the Toyota SPRINTER. Key components include: DAM KIT, BACK WINDOW GLASS, FRAME SUB-ASSY, BACK DOOR OPENING, PANEL, ROOF, PANEL, WINDSHIELD HEADER, INNER, FRAME, BACK WINDOW, UPPER.
