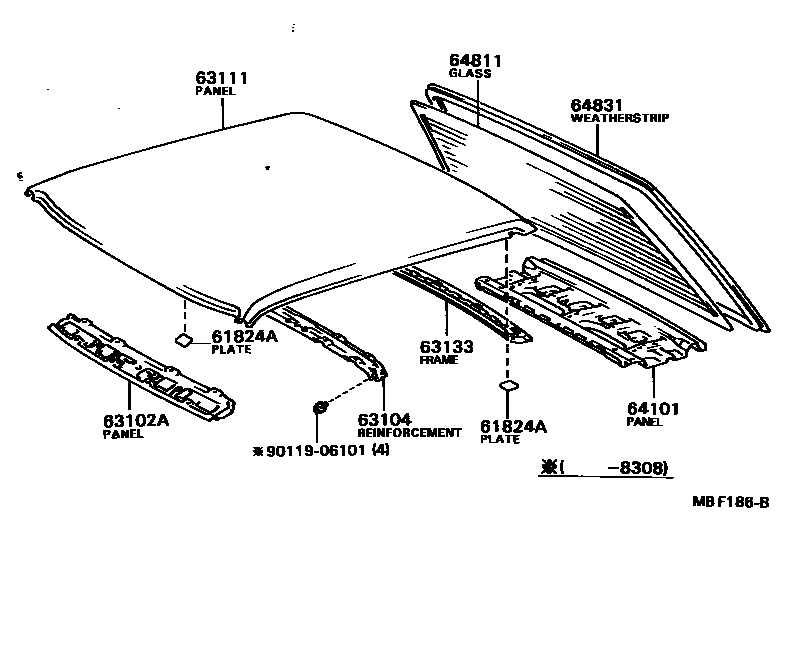

Toyota SPRINTER — ROOF PANEL & BACK WINDOW GLASS

61824APLATE, NOISE CONTROL, NO.1

main61824-12010×2i198305-198704

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-12030i198305-198704

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63141-12100i198305-198308

W/O SUN ROOF

main63141-12120i198308-198704

W/O SUN ROOF

main63142-12020i198305-198704

W/SUN ROOF

63111PANEL, ROOF

main63111-12250i198305-198704

main63111-12260i198305-198704

W/O SUN ROOF

main63111-12270i198305-198704

W/SUN ROOF

63133FRAME, BACK WINDOW OPENING, UPPER

main63133-12150i198305-198704

64101PANEL SUB-ASSY, UPPER BACK

main64101-12290i198505-198704

main64101-12300i198305-198505

64811GLASS, BACK WINDOW

main64801-12390i198305-198401

*EHTT,T=3.5

main64801-12400i198305-198704

*EHT,T=3.5,BRONZE

main64801-12410i198305-198704

*EHT,T=3.5

main64811-12720i198305-198704

*TEM,T=3.5

main64811-12730i198305-198704

*TT,T=3.5

64831WEATHERSTRIP, BACK WINDOW GLASS

main64812-12300i198305-198704

main64812-12310i198305-198704

9011906101

main90119-06101

9 parts on this diagram · 3 diagrams in section

ROOF PANEL & BACK WINDOW GLASS for Toyota SPRINTER

This section contains 43 genuine Toyota parts for the ROOF PANEL & BACK WINDOW GLASS system of the Toyota SPRINTER. Key components include: PLATE, NOISE CONTROL, NO.1, PANEL SUB-ASSY, WINDSHIELD HEADER, REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER, FRAME SUB-ASSY, BACK DOOR OPENING, PANEL, ROOF.
