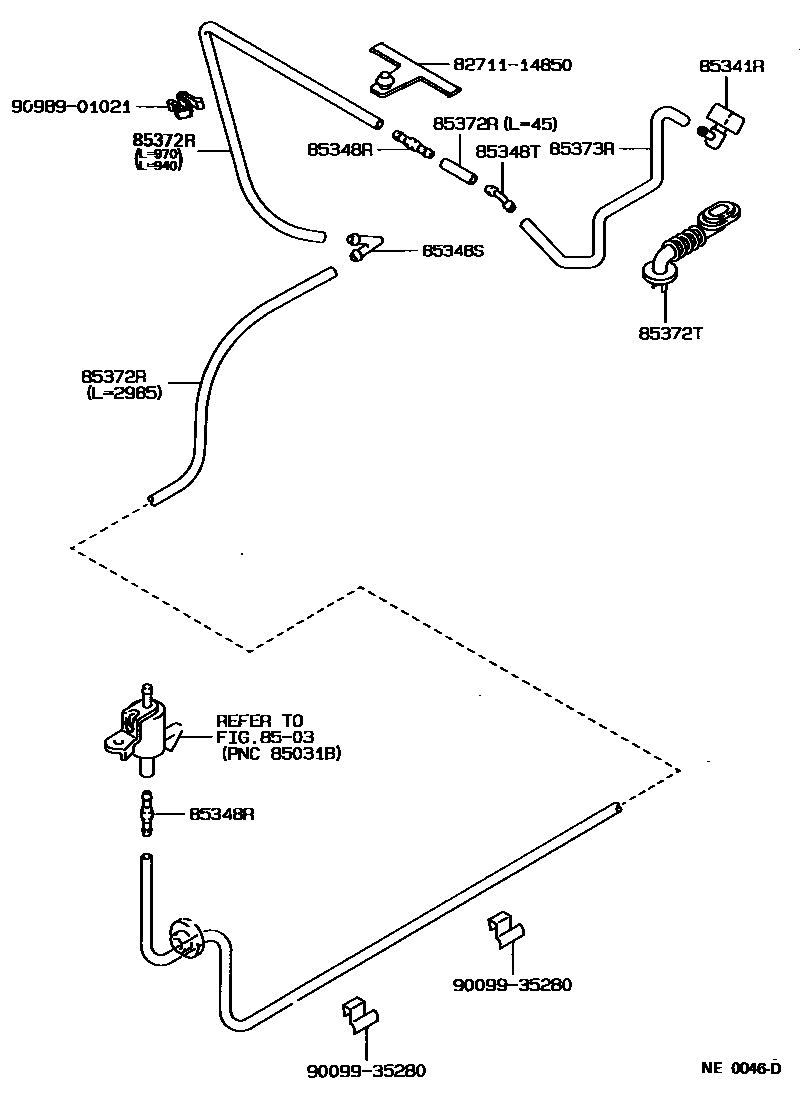

Toyota SPRINTER — REAR WASHER

0001 1 0002 1 0003 1 0004 1

8503

85341RNOZZLE ASSY, WASHER

main85341-12210iAE91,92..5D198705-199106

sub85391-16010

main85341-12240iAE95..WG198802-199009

main85341-13030iEE98..4F;EE98..3FC..DX;CE96,EE96..DX,XL198808-199108

sub85341-12230

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iEE98..(3FC,5F)..XL198705-199108

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-12360iAE91,92..5D198705-199106

main85355-20200iEE98..(3FC,5F)..XL198808-199108

85348TJOINT, REAR WASHER HOSE, NO.2

main85355-20080iCE96,EE98..(3FC,4FC,5F)..XL198802-199108

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90099-33080iEE98..(3FC,5F)..XL198808-199108

main90099-33185iAE95..EFI198802-198804

sub90099-33299

main90099-33299iAE91,92..5D198705-199106

main90099-33511iAE95..WG198804-199009

main90099-33533iAE95..EFI198802-198804

sub90099-33595

main90099-33580iAE91,92..5D198705-199106

sub90099-33589

main90446-07001iEE98..(3FC,5F)..XL198705-199108

85372TGROMMET, WASHER

main85372-12020iAE9#..(5D,WG)..(AV1,G,GT,L,XI)198705-199106

main85372-13010iEE98..4F;EE98..3FC..DX;CE96,EE96..DX,XL198808-199108

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33080iEE98..(3FC,5F)..XL198705-199108

main90099-33299iAE95..WG198802-199009

8271114850WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14850

9009935280

main90099-35280

9098901021

main90989-01021

11 parts on this diagram · 4 diagrams in section
