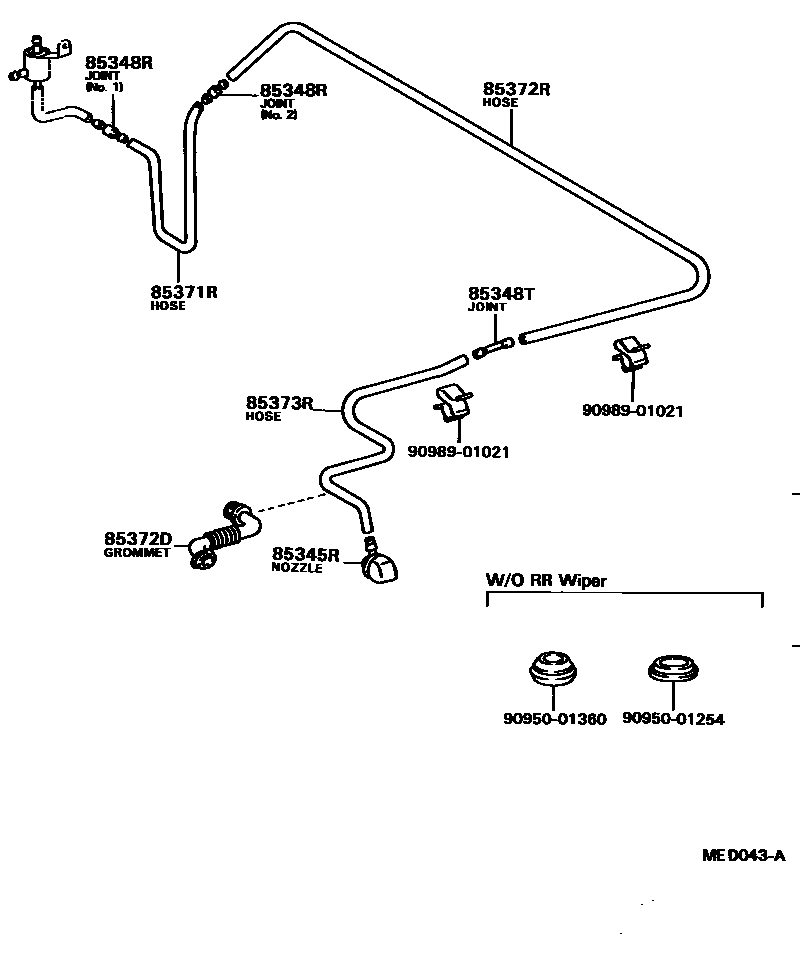

Toyota SPRINTER — REAR WASHER

85345RNOZZLE, REAR WASHER

main85035-12160i198305-198704

85348RJOINT, REAR WASHER HOSE, NO.1

main85031-12250i198508-198704

NO.1

main85349-89122×2i198408-198508

NO.1,NO.2

main85355-87201×2i198305-198408

NO.1,NO.2

85348TJOINT, REAR WASHER HOSE, NO.2

main85355-20080i198305-198704

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90446-07001i198305-198704

85372DGROMMET, REAR WASHER HOSE

main85372-14020i198305-198704

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90099-33409i198305-198704

L=2420

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33080i198408-198704

main90099-33299i198305-198408

9095001254

main90950-01254

9095001360

main90950-01360

9098901021

main90989-01021

10 parts on this diagram · 1 diagram in section

REAR WASHER for Toyota SPRINTER

This section contains 10 genuine Toyota parts for the REAR WASHER system of the Toyota SPRINTER. Key components include: NOZZLE, REAR WASHER, JOINT, REAR WASHER HOSE, NO.1, JOINT, REAR WASHER HOSE, NO.2, HOSE, REAR WASHER (FROM MOTOR TO JOINT), GROMMET, REAR WASHER HOSE.
