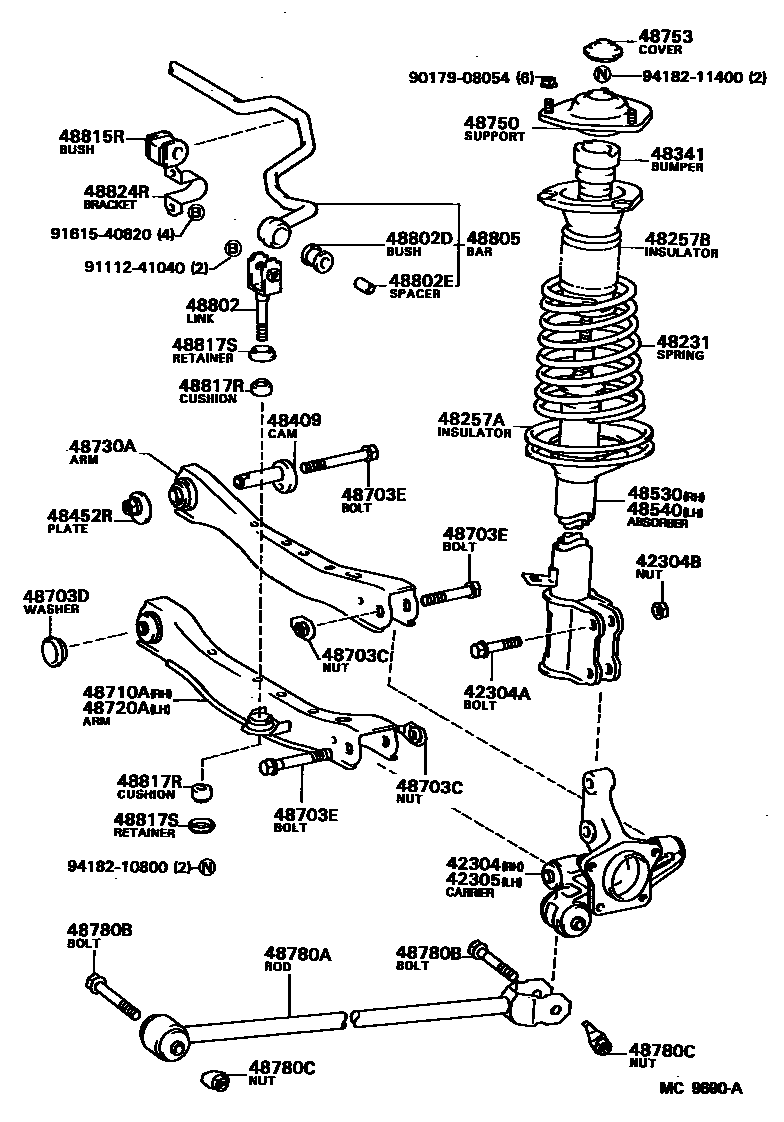

Toyota SPRINTER — REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
42304ABOLT (FOR REAR AXLE CARRIER)
42304BNUT (FOR REAR AXLE CARRIER)
42305CARRIER SUB-ASSY, REAR AXLE, LH
48231SPRING, COIL, REAR
48257AINSULATOR, REAR COIL SPRING, LOWER
48257BINSULATOR, REAR COIL SPRING, UPPER
48341BUMPER, REAR SPRING
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2
48530ABSORBER ASSY, SHOCK, REAR RH
48540ABSORBER ASSY, SHOCK, REAR LH
48703CNUT(FOR REAR SUSPENSION ARM)
ARM NO.1 (CARRIER SIDE)
ARM NO.2
ARM NO.1 (BODY SIDE)
48703DWASHER(FOR REAR SUSPENSION ARM)
48703EBOLT(FOR REAR SUSPENSION ARM)
*10-1.25PX77-20,ARM NO.2
*12-1.25PX60-25,ARM NO.2
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48730AARM ASSY, REAR SUSPENSION, NO.2
48750SUPPORT ASSY, REAR SUSPENSION
48753COVER, REAR SUSPENSION SUPPORT
48780AROD ASSY, STRUT, REAR
48780BBOLT(FOR STRUT ROD)
48780CNUT(FOR STRUT ROD)
CARRIER SIDE
BODY SIDE
48802LINK SUB-ASSY, STABILIZER
48802DBUSH, STABILIZER LINK
48802ESPACER(FOR REAR STABILIZER BAR)
48805BAR SUB-ASSY, REAR STABILIZER
48815RBUSH, STABILIZER(FOR REAR)
48817RCUSHION, STABILIZER(FOR REAR)
48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
48824RBRACKET, STABILIZER(FOR REAR)
9017908054
main90179-08054
9111241040
main91112-41040
9161540820
main91615-40820
9418210800
main94182-10800
9418211400
main94182-11400
36 parts on this diagram · 1 diagram in section
REAR SPRING & SHOCK ABSORBER for Toyota SPRINTER
This section contains 36 genuine Toyota parts for the REAR SPRING & SHOCK ABSORBER system of the Toyota SPRINTER. Key components include: CARRIER SUB-ASSY, REAR AXLE, RH, BOLT (FOR REAR AXLE CARRIER), NUT (FOR REAR AXLE CARRIER), CARRIER SUB-ASSY, REAR AXLE, LH, SPRING, COIL, REAR.
