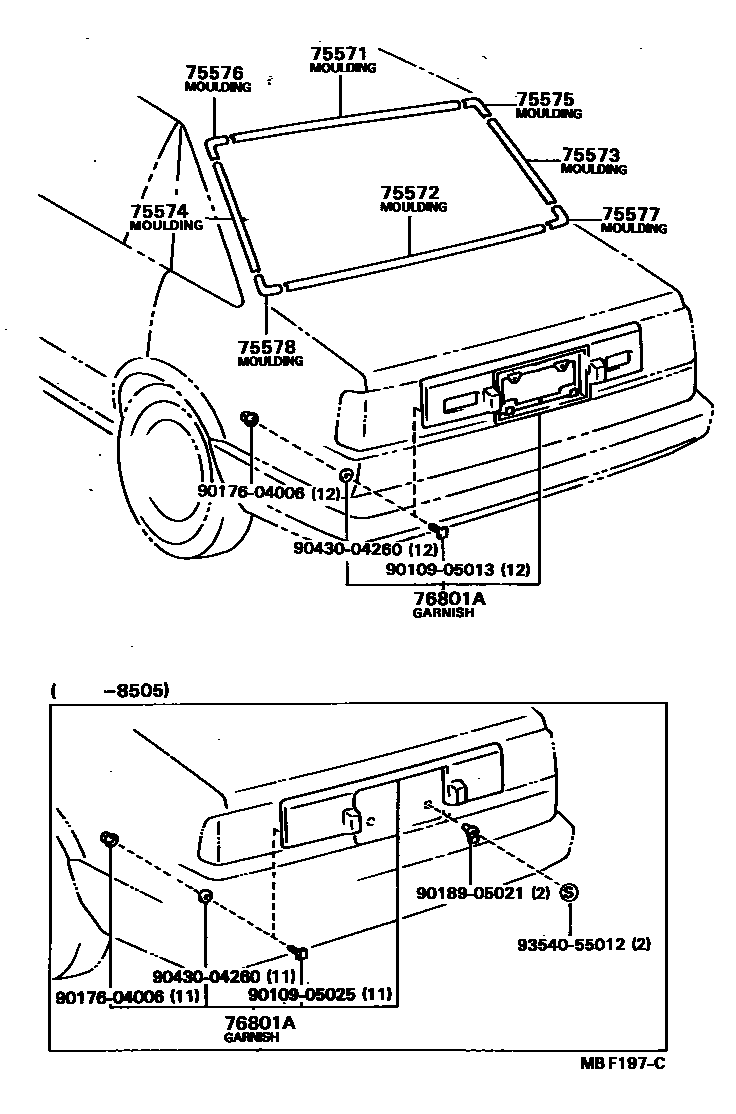

Toyota SPRINTER — REAR MOULDING
75571MOULDING, BACK WINDOW, OUTSIDE UPPER
75572MOULDING, BACK WINDOW, LOWER
75573MOULDING, BACK WINDOW SIDE, RH
75574MOULDING, BACK WINDOW SIDE, LH
75575MOULDING, BACK WINDOW CORNER, UPPER RH
75576MOULDING, BACK WINDOW CORNER, UPPER LH
75577MOULDING, BACK WINDOW CORNER, LOWER RH
75578MOULDING, BACK WINDOW CORNER, LOWER LH
76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
9010905013
main90109-05013
9010905025
main90109-05025
9017604006
main90176-04006
9018905021
main90189-05021
9043004260
main90430-04260
9354055012
main93540-55012
16 parts on this diagram · 2 diagrams in section
REAR MOULDING for Toyota SPRINTER
This section contains 17 genuine Toyota parts for the REAR MOULDING system of the Toyota SPRINTER. Key components include: MOULDING, BACK WINDOW, OUTSIDE UPPER, MOULDING, BACK WINDOW, LOWER, MOULDING, BACK WINDOW SIDE, RH, MOULDING, BACK WINDOW SIDE, LH, MOULDING, BACK WINDOW CORNER, UPPER RH.
