Toyota SPRINTER — REAR DOOR WINDOW REGULATOR & HINGE

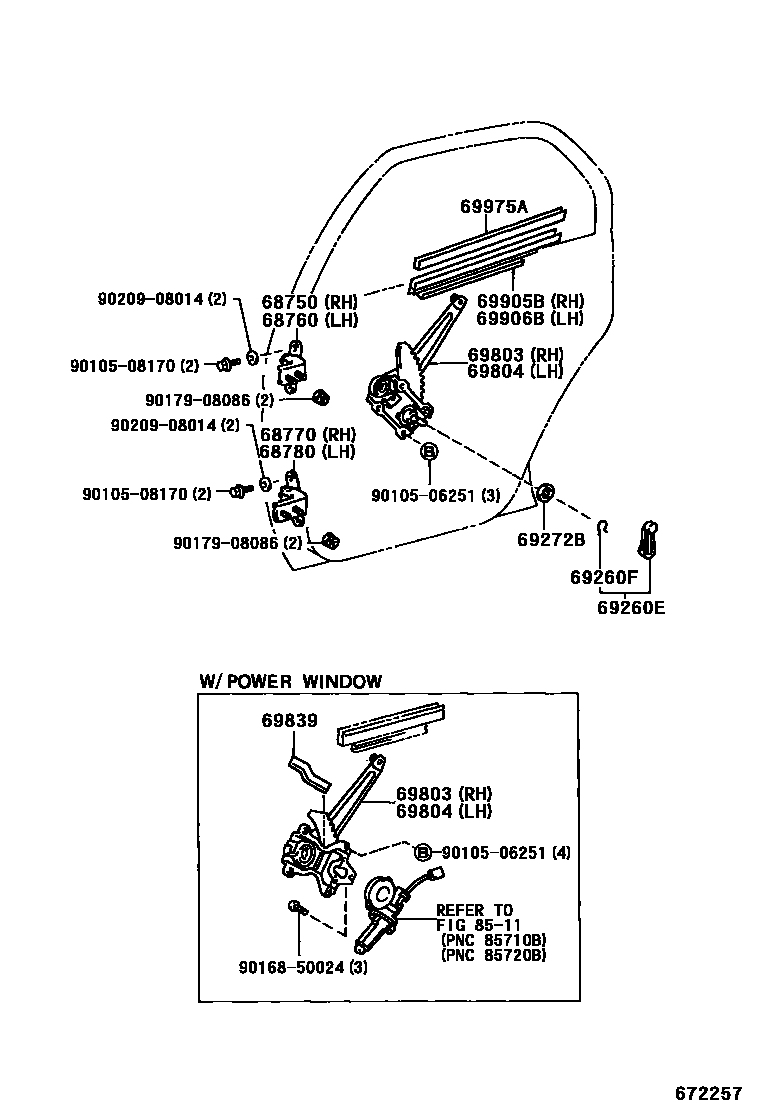

Parts diagram

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-12070i199106

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-12070i199106

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-12080i199106

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-12070i199106

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-10040-07×2i199106-199305

DARK BLUE,TRIM8#

main69260-10040-42×2i199106-199505

TAUPE,TRIM9#

main69260-10040-43×2i199106-199704

GRAY,TRIM1#

main69260-10040-P0×2i199704

SHADOW GRAY,TRIM1#

main69260-12080-03×2i199106-199505

SHADOW GRAY,TRIM1#

main69260-12080-12×2i199106-199505

TAUPE,TRIM9#

main69260-12080-14×2i199106-199108

DARK BLUE

69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01005×2i199106-199505

main90520-01274×2i199106

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69268-16010×2i199401-199509

main69268-20020i199601-199705

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-12090i199106-199505

main69830-02030i199804

main69830-12200i199109

main69830-12220i199106-199505

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-12090i199205-199505

main69840-02030i199804

main69840-12200i199109

main69840-12220i199106-199505

69839PAD, REAR DOOR WINDOW REGULATOR

main69839-12010×4i199106-199205

main69839-12020×4i199305-199505

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-12110i199106

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-12100i199106

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-12010×2i199106

8511DOOR MOTOR & DOOR SOLENOID

→ Go to FIG 85-11

9010506251

main90105-06251

9010508170

main90105-08170

9016850024

main90168-50024

9017908086

main90179-08086

9020908014

main90209-08014

19 parts on this diagram · 1 diagram in section

REAR DOOR WINDOW REGULATOR & HINGE for Toyota SPRINTER

This section contains 19 genuine Toyota parts for the REAR DOOR WINDOW REGULATOR & HINGE system of the Toyota SPRINTER. Key components include: HINGE ASSY, REAR DOOR, UPPER RH, HINGE ASSY, REAR DOOR, UPPER LH, HINGE ASSY, REAR DOOR, LOWER RH, HINGE ASSY, REAR DOOR, LOWER LH, HANDLE ASSY, REAR DOOR WINDOW REGULATOR.
