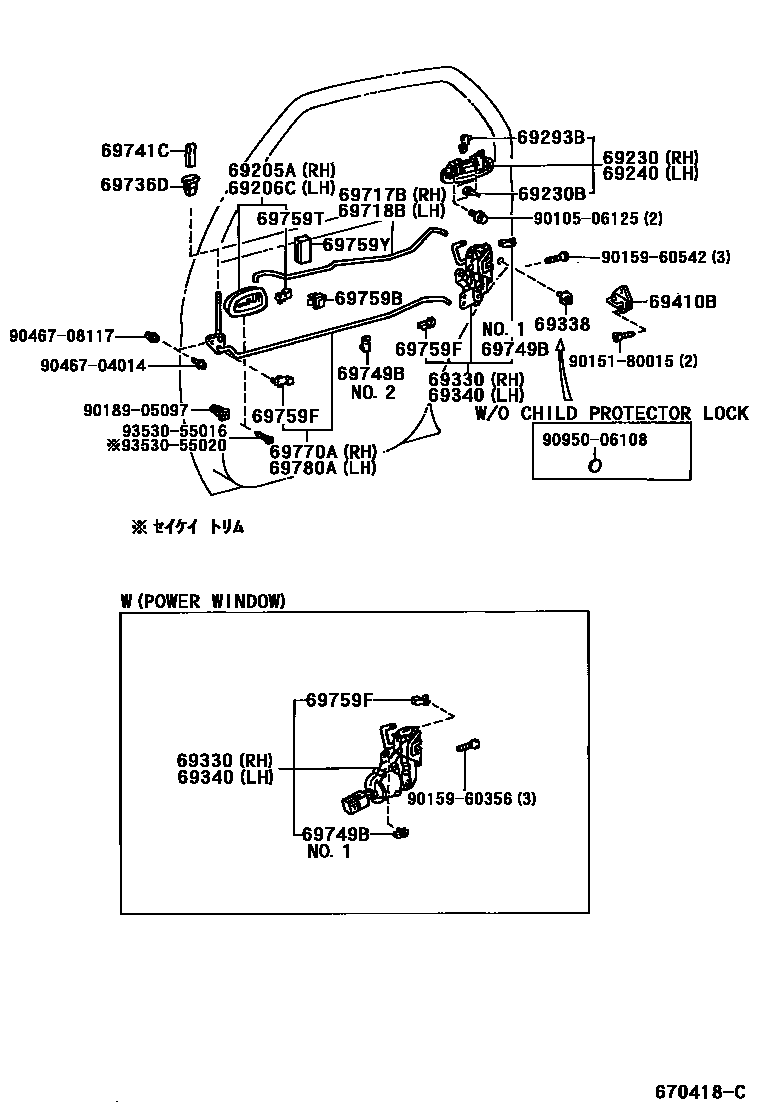

Toyota SPRINTER — REAR DOOR LOCK & HANDLE
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
TAUPE,TRIM9#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#
TAUPE,TRIM9#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
TAUPE,TRIM9#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#
TAUPE,TRIM9#
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
LIGHT BEIGE M,3K9
SUPER WHITE 2,040
ROSE MICA M.GRAPHITE,3K5
RED MICA M,3K4
MD GRAISHGREEN MC.GR,6N1
DARK BLUE MICA M.,8G5
69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
DARK BLUE MICA M,8J7
GRAYISH GREEN M,6M3
SUPER WHITE 2,040
RED MICA M,3K4
MD GRAISHGREEN MC.GR,6N1
DARK BLUE MICA M.,8G5
69293BSNAP, REAR DOOR OUTSIDE HANDLE
69330LOCK ASSY, REAR DOOR, RH
69338KNOB, CHILD PROTECTOR LOCK LEVER
69340LOCK ASSY, REAR DOOR, LH
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69717BLINK, REAR DOOR LOCK REMOTE CONTROL, RH
69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH
69736DGUIDE, REAR DOOR LOCKING LINK
SHADOW GRAY,TRIM1#
main69751-12060-B0×2iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108..CTD,DX,DXJ,L199206-200008
SHADOW GRAY,TRIM1#
69741CKNOB, REAR DOOR LOCK CONTROL
TAUPE,TRIM9#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
GRAY,TRIM1#
SHADOW GRAY,TRIM1#
69749BCLAMP, REAR DOOR LOCK LINK
69759BSNAP, REAR DOOR LOCK CYLINDER
main69749-50020×2iEE103..XL;EE102,103..(3FC,4F)..(DX,DXJ);AE10#,CE100,104,106,108,109,EE101,104,106,107,108199106
69759FSNAP, REAR DOOR LOCK CONTROL LINK
69759TSNAP, REAR DOOR INSIDE HANDLE
69759YSILENCER, REAR DOOR LOCK LINK
60 X 40
69770ALINK ASSY, REAR DOOR INSIDE LOCKING, RH
69780ALINK ASSY, REAR DOOR INSIDE LOCKING, LH
9010506125
main90105-06125
9015180015
main90151-80015
9015960356
main90159-60356
9015960542
main90159-60542
9018905097
main90189-05097
9046704014
main90467-04014
9046708117
main90467-08117
9095006108
main90950-06108
9353055016
main93530-55016
9353055020
main93530-55020
31 parts on this diagram · 1 diagram in section
REAR DOOR LOCK & HANDLE for Toyota SPRINTER
This section contains 31 genuine Toyota parts for the REAR DOOR LOCK & HANDLE system of the Toyota SPRINTER. Key components include: HANDLE SUB-ASSY, REAR DOOR INSIDE, RH, HANDLE SUB-ASSY, REAR DOOR INSIDE, LH, HANDLE ASSY, REAR DOOR OUTSIDE, RH, CUSHION(FOR REAR DOOR OUTSIDE HANDLE), HANDLE ASSY, REAR DOOR OUTSIDE, LH.
