Toyota SPRINTER — REAR COMBINATION LAMP

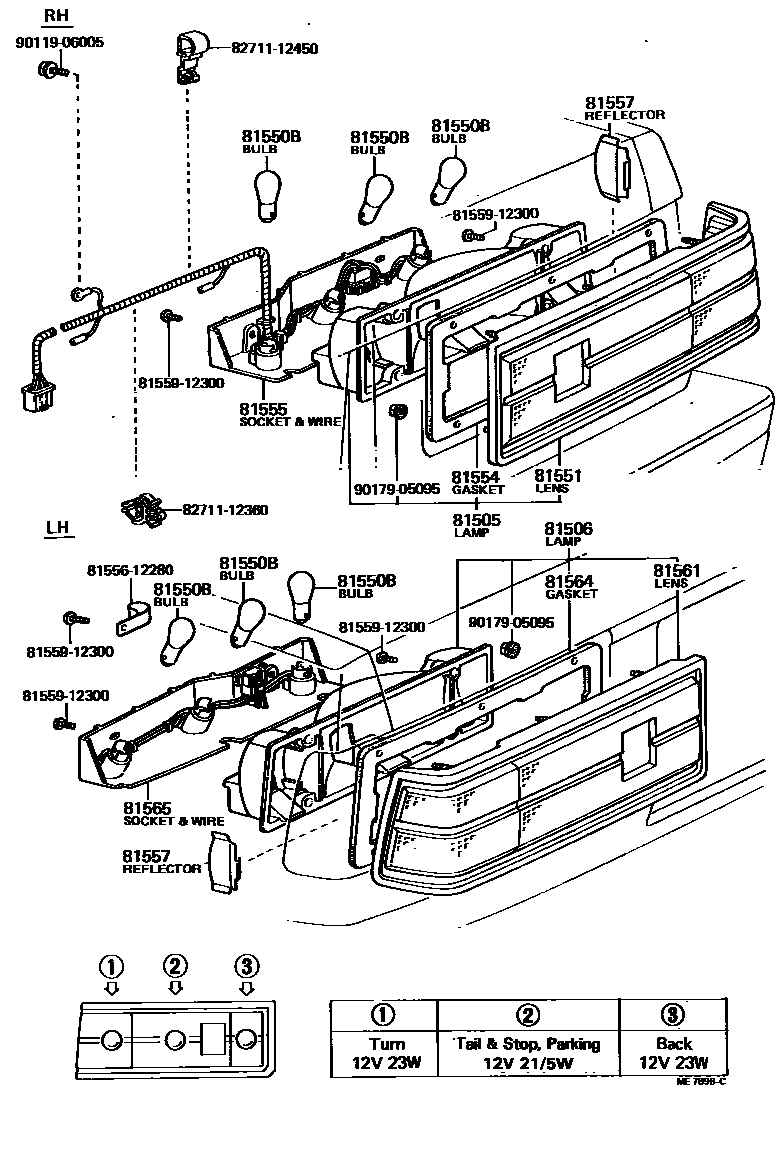

Parts diagram

81505LAMP SUB-ASSY, REAR COMBINATION, RH

main81505-19275i197903-198108

main81505-19285i197903-198108

main81505-19286i198108-198304

KOITO

main81505-19295i197903-198108

main81505-19305i197903-198108

main81505-19325i197903-198108

main81505-19355i197903-198108

main81505-19365i197903-198108

main81505-19525i198108-198304

STANLEY

main81505-19585i198108-198304

EXCL/LIMITED EDITION

main81505-19595i198108-198304

main81505-19605i198108-198304

81506LAMP SUB-ASSY, REAR COMBINATION, LH

main81506-19145i197903-198108

main81506-19155i197903-198108

main81506-19156i198108-198304

KOITO

main81506-19165i197903-198108

main81506-19175i197903-198108

main81506-19195i197903-198108

main81506-19225i197903-198108

main81506-19235i197903-198108

main81506-19385i198108-198304

STANLEY

main81506-19445i198108-198304

EXCL/LIMITED EDITION

main81506-19455i198108-198304

main81506-19465i198108-198304

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11230×4i197903-198304

main99132-21210×2i197903-198304

81551LENS, REAR COMBINATION LAMP, RH

main81551-12540i197903-198108

main81551-12541i198108-198304

KOITO

main81551-12550i197903-198108

main81551-12590i197903-198108

main81551-12620i197903-198108

main81551-12780i197903-198108

main81551-12800i197903-198108

main81551-12810i197903-198108

main81551-12830i198108-198304

STANLEY

main81551-1A110i198108-198304

main81551-1A120i198108-198304

main81551-1A130i198108-198304

main81551-1A140i198203-198203

LIMITED EDITION

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-12530i197903-198108

main81554-12540i197903-198108

main81554-12541i198108-198304

KOITO

main81554-12640i197903-198108

main81554-12800i197903-198304

main81554-12830i198108-198304

STANLEY

main81554-1A030i198108-198304

main81554-1A110i198108-198304

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-12540i197903-198011

main81555-12541i198011-198108

main81555-12542i198108-198304

KOITO

main81555-12550i197903-198011

main81555-12551i198011-198108

main81555-12640i197903-198009

main81555-12651i198009-198108

main81555-12830i198108-198304

STANLEY

main81555-1A110i198108-198304

main81555-1A130i198108-198304

81557REFLECTOR, REAR COMBINATION LAMP REFLEX

main81557-12540×2i197903-198108

81561LENS, REAR COMBINATION LAMP, LH

main81561-12540i197903-198108

main81561-12541i198108-198304

KOITO

main81561-12550i197903-198108

main81561-12590i197903-198108

main81561-12620i197903-198108

main81561-12780i197903-198108

main81561-12800i197903-198108

main81561-12810i197903-198108

main81561-12830i198108-198304

STANLEY

main81561-1A110i198108-198304

main81561-1A120i198108-198304

main81561-1A130i198108-198304

main81561-1A140i198203-198203

LIMITED EDITION

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81554-12530i197903-198108

main81554-12540i197903-198108

main81554-12541i198108-198304

KOITO

main81554-1A110i198108-198304

main81564-12640i197903-198108

main81564-12800i197903-198304

main81564-12830i198108-198304

STANLEY

main81564-1A030i198108-198304

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81565-12540i197903-198108

main81565-12541i198108-198304

KOITO

main81565-12550i197903-198108

main81565-12640i197903-198108

main81565-12830i198108-198304

STANLEY

main81565-1A110i198108-198304

main81565-1A130i198108-198304

8155612280RIM, REAR COMBINATION LAMP, RH

main81556-12280

8155912300MOULDING, REAR COMBINATION LAMP, RH

main81559-12300

8271112360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12360

8271112450WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12450

9011906005

main90119-06005

9017905095

main90179-05095

16 parts on this diagram · 8 diagrams in section

REAR COMBINATION LAMP for Toyota SPRINTER

This section contains 22 genuine Toyota parts for the REAR COMBINATION LAMP system of the Toyota SPRINTER. Key components include: LAMP SUB-ASSY, REAR COMBINATION, RH, LAMP SUB-ASSY, REAR COMBINATION, LH, BULB(FOR REAR COMBINATION LAMP), LENS, REAR COMBINATION LAMP, RH, GASKET, REAR COMBINATION LAMP BODY, RH.
