Toyota SPRINTER — REAR COMBINATION LAMP

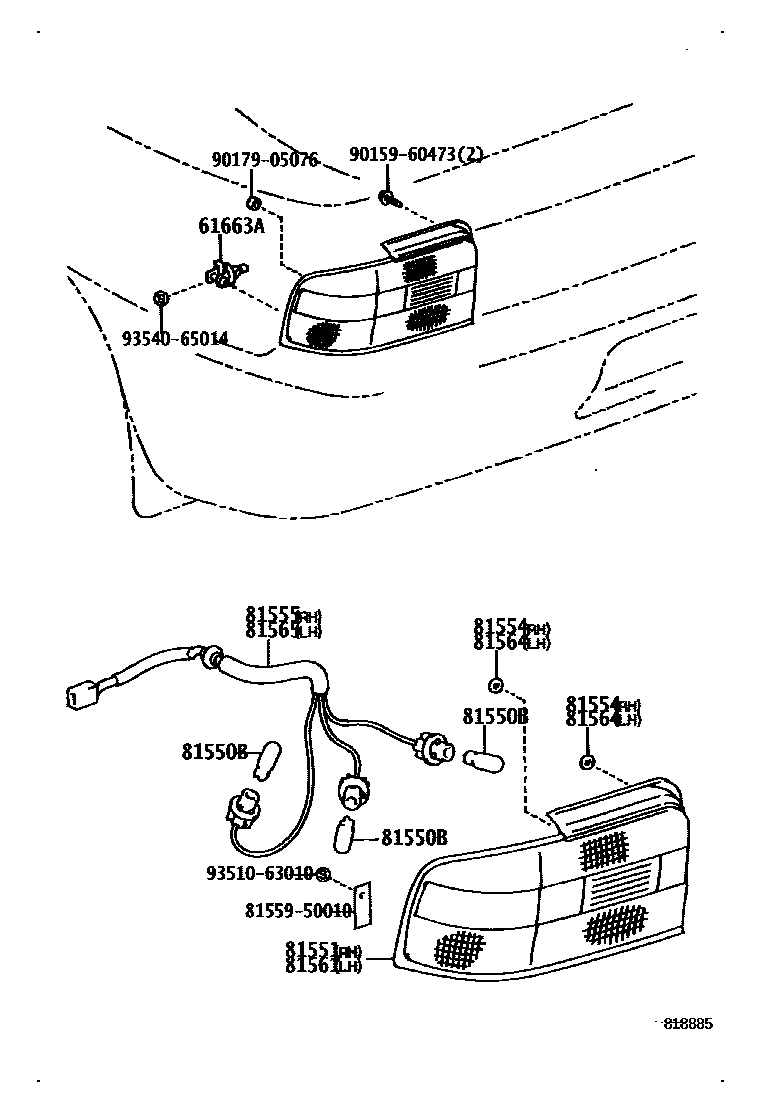

Parts diagram

61663ABRACKET, REAR COMBINATION LAMP MOUNTING

main61663-12010×2i199106-199505

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-11039×2i199305-199505

main90981-13050×2i199106-199505

main90981-13051×4i199106-199305

main99132-11210×4i200008

main99132-21210×2i200008

81551LENS, REAR COMBINATION LAMP, RH

main81551-13320i199109

main81551-1A730i199106-199305

main81551-1A880i199305-199505

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-32150×2i199106-199305

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-13340i199109

main81555-1A730i199106-199305

main81555-1A880i199305-199505

81561LENS, REAR COMBINATION LAMP, LH

main81561-13320i199109

main81561-1A670i199106-199305

main81561-1A840i199305-199505

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81554-32150×2i199106-199305

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-13340i199109

main81555-1A730i199106-199305

main81555-1A880i199305-199505

8155950010MOULDING, REAR COMBINATION LAMP, RH

main81559-50010

9015960473

main90159-60473

9017905076

main90179-05076

9351063010

main93510-63010

9354065014

main93540-65014

13 parts on this diagram · 4 diagrams in section

REAR COMBINATION LAMP for Toyota SPRINTER

This section contains 23 genuine Toyota parts for the REAR COMBINATION LAMP system of the Toyota SPRINTER. Key components include: BRACKET, REAR COMBINATION LAMP MOUNTING, BULB(FOR REAR COMBINATION LAMP), LENS, REAR COMBINATION LAMP, RH, GASKET, REAR COMBINATION LAMP BODY, RH, SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH.
