Toyota SPRINTER — REAR COMBINATION LAMP

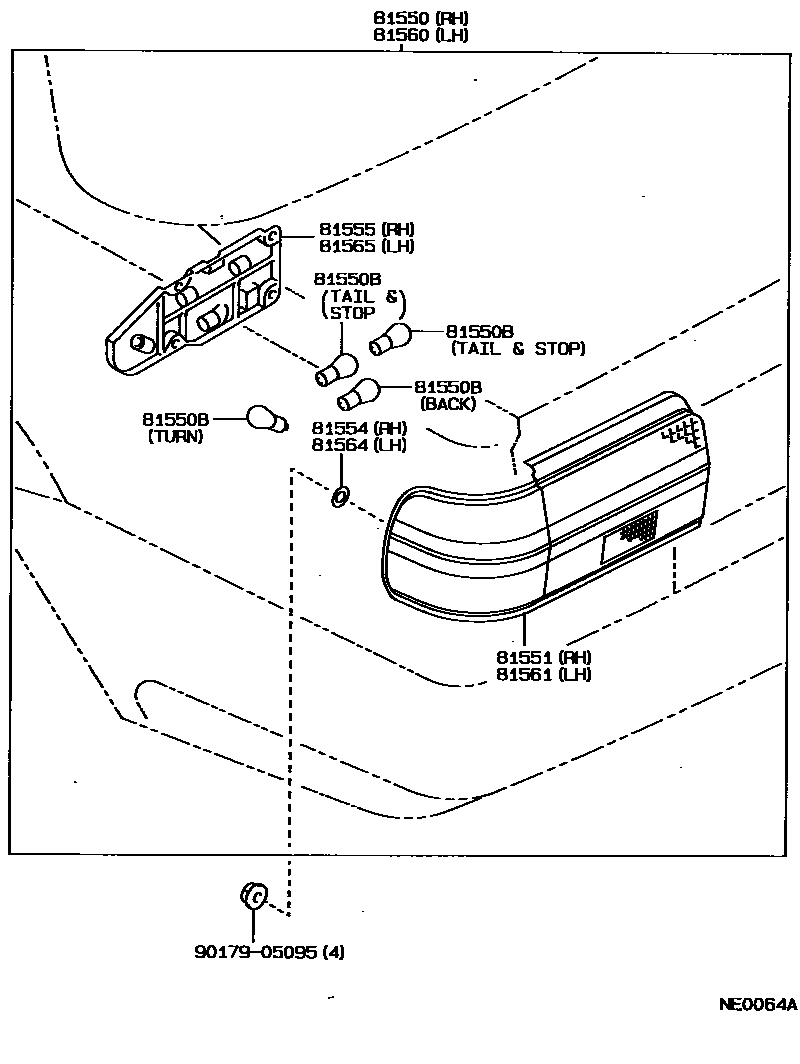

Parts diagram
81550LAMP ASSY, REAR COMBINATION, RH
main81550-13300i198808-198908
sub81550-13301
main81550-13301i198908-199108
main81550-1A400i198705-198709
sub81550-1A401
main81550-1A401i198709-198905
sub81550-1A790
main81550-1A402i198905-199106
sub81550-1A800
main81550-1A410i198705-198905
main81550-1A450i198802-198806
main81550-1A451i198806-199009
main81550-1A590i198905-199103
sub81550-1A591
main81550-1A591i199103-199106
81550BBULB(FOR REAR COMBINATION LAMP)
main99132-11210i198802-199009
main99132-11210i198705-198908
main99132-11210i198705-198908
main99132-11210i198905-199108
main99132-21210i198905-199108
main99132-21210i198709-198908
main99132-21210i198705-198908
81551LENS, REAR COMBINATION LAMP, RH
main81551-13300i198808-199108
main81551-1A400i198705-198709
sub81551-1A401
main81551-1A401i198709-198905
sub81551-1A790
main81551-1A402i198905-199106
sub81551-1A800
main81551-1A410i198705-198905
main81551-1A450i198802-198805
main81551-1A451i198805-199009
main81551-1A590i198905-199106
81554GASKET, REAR COMBINATION LAMP BODY, RH
main81552-1A402i198905-199106
sub81552-1A800
main81554-1A411i199012-199106
main81554-32150i198705-198905
main81554-32150i198905-199106
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
main81555-13300i198808-199108
main81555-1A400i198705-198905
main81555-1A402i198905-199106
main81555-1A410i198705-199106
main81555-1A450i198802-199009
81560LAMP ASSY, REAR COMBINATION, LH
main81560-13300i198808-198908
sub81560-13301
main81560-13301i198908-199108
main81560-1A360i198705-198709
sub81560-1A361
main81560-1A361i198709-198905
sub81560-1A750
main81560-1A362i198905-199106
sub81560-1A760
main81560-1A370i198705-198905
main81560-1A420i198802-198806
main81560-1A421i198806-199009
main81560-1A590i198905-199103
sub81560-1A591
main81560-1A591i199103-199106
81561LENS, REAR COMBINATION LAMP, LH
main81561-13300i198808-199108
main81561-1A360i198705-198709
sub81561-1A361
main81561-1A361i198709-198905
sub81561-1A750
main81561-1A362i198905-199106
sub81561-1A760
main81561-1A370i198705-198905
main81561-1A420i198802-198805
main81561-1A421i198805-199009
main81561-1A590i198905-199106
81564GASKET, REAR COMBINATION LAMP BODY, LH
main81552-1A402i198905-199106
sub81552-1A800
main81554-1A411i199012-199106
main81554-32150i198705-198905
main81554-32150i198905-199106
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
main81555-13300i198808-199108
main81555-1A450i198802-199009
main81565-1A360i198705-198905
main81565-1A362i198905-199106
main81565-1A370i198705-199106
9017905095
main90179-05095

10 parts on this diagram · 5 diagrams in section
