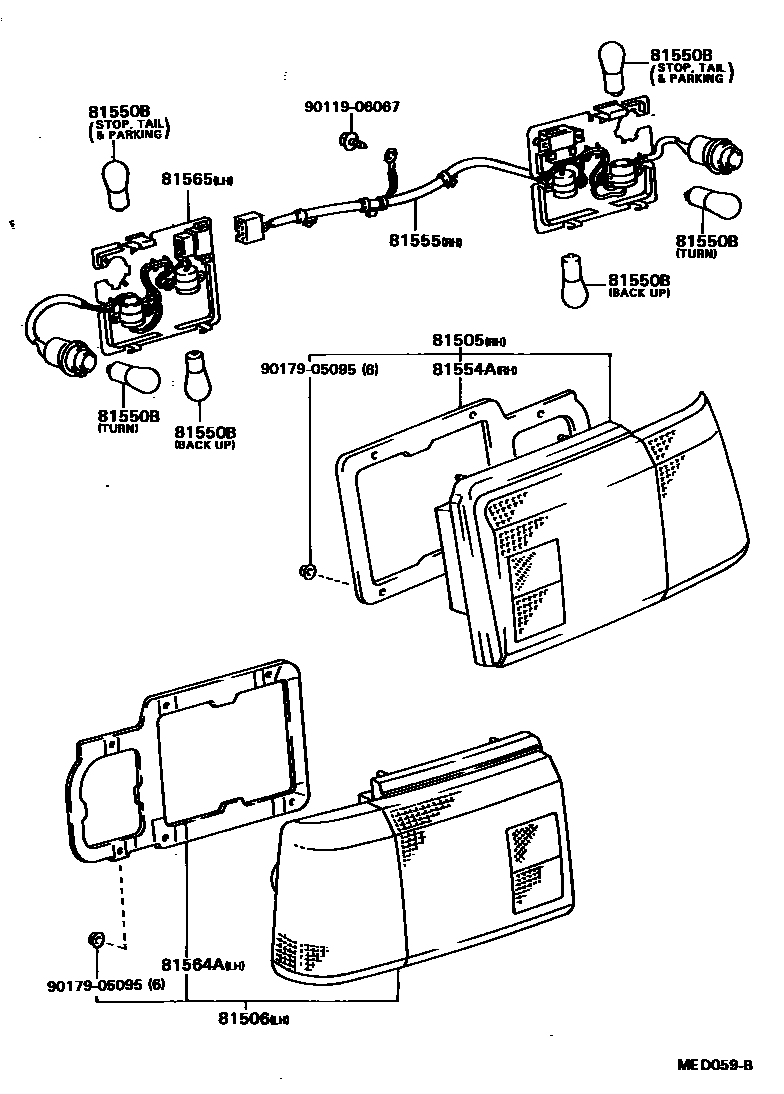

Toyota SPRINTER — REAR COMBINATION LAMP

81505LAMP SUB-ASSY, REAR COMBINATION, RH

main81505-12690i198608-198704

main81505-12800i198505-198704

main81505-12860i198505-198704

main81505-19675i198305-198505

KOITO

main81505-19685i198305-198505

STANLAY

main81505-19695i198305-198608

81506LAMP SUB-ASSY, REAR COMBINATION, LH

main81506-12610i198608-198704

main81506-12720i198505-198704

main81506-12780i198505-198704

main81506-19535i198305-198505

KOITO

main81506-19545i198305-198505

STANLEY

main81506-19555i198305-198608

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11230×2i198505-198704

main99132-21210×2i198305-198704

81554AGASKET, REAR COMBINATION LAMP BODY, NO.1 RH

main81554-1A210i198305-198505

KOITO

main81554-1A220i198305-198704

main81554-1A320i198305-198505

STANLEY

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-1A210i198305-198505

KOITO

main81555-1A220i198305-198505

main81555-1A221i198505-198704

main81555-1A320i198305-198505

STANLEY

main81555-1A321i198505-198704

81564AGASKET, REAR COMBINATION LAMP BODY, NO.1 LH

main81554-1A210i198305-198505

KOITO

main81554-1A220i198305-198704

main81554-1A320i198505-198704

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81565-1A210i198305-198505

KOITO

main81565-1A220i198305-198704

main81565-1A320i198305-198505

STANLEY

main81565-1A321i198505-198704

9011906067

main90119-06067

9017905095

main90179-05095

9 parts on this diagram · 3 diagrams in section

REAR COMBINATION LAMP for Toyota SPRINTER

This section contains 15 genuine Toyota parts for the REAR COMBINATION LAMP system of the Toyota SPRINTER. Key components include: LAMP SUB-ASSY, REAR COMBINATION, RH, LAMP SUB-ASSY, REAR COMBINATION, LH, BULB(FOR REAR COMBINATION LAMP), GASKET, REAR COMBINATION LAMP BODY, NO.1 RH, GASKET, REAR COMBINATION LAMP BODY, NO.2 RH.
